TP-Link N300 4G LTE Telephony WiFi Router

1× 10/100 Mbps LAN/WAN Port, 2× 10/100 Mbps LAN Ports, 1× Phone Port, 1 Micro SIM, 2.4 GHz 300Mbps, 802.11a/b/g/n, 202 x 141 x 33.6 mm

Key Features

• Cutting-edge 4G network – share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps*
• Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
• WiFi speeds up to 300 Mbps – enjoy uninterrupted HD movies, rapid file downloads, seamless video chats, and more at the same time*
• Professional voice functions – supports VoLTE/CSFB/VoIP functions and provides 50 MB of internal storage for 100 minutes of voicemail
• Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
• Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection

Description

Enjoy WiFi and Phone Calls All in One 4G Router
4G LTE Telephony Modem Router

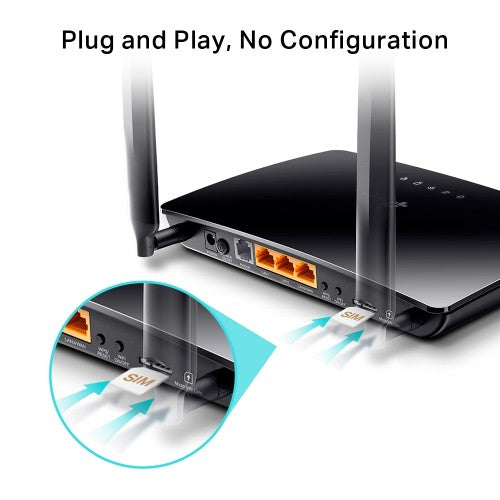

Plug and Play,
No Configuration
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a micro SIM card and turn on the router. Enjoying fast, stable WiFi on a 4G LTE network has never been easier.

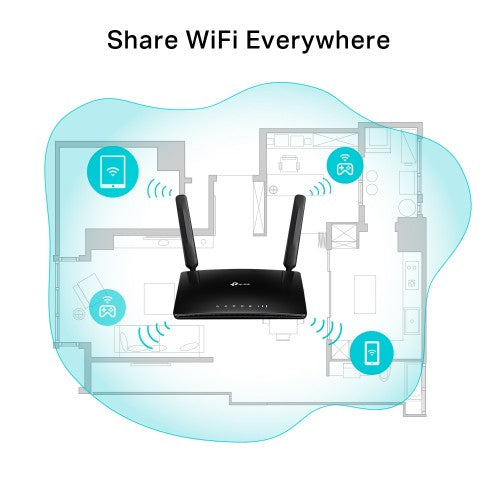

Share WiFi over a 4G Network
— Flexible and Stable
Simply build your home WiFi network via 4G broadband access with download speeds of up to 150 Mbps. You can share the internet with multiple WiFi devices to enjoy uninterrupted HD movies, rapid file downloads, seamless video chats, and more at the same time.

Enjoy WiFi and Phone Calls Simultaneously
TL-MR6500v is not only a WiFi router and modem combo, but also a phone. It has a phone port to connect your existing landline phone so that you can make phone calls and surf the internet at the same time. Moreover, various voice functions are supported including VoIP, VoLTE, and CSFB. Simply enjoy a professional and high-quality voice call as you like.

Built-in Storage for Voicemail
Instead of paying for a voicemail service from your ISP, get free access if you own this modem/router/phone combo. With 50 MB of internet storage, TL-MR6500v records 100 minutes of voicemail. Never worry about missing any calls or messages when away from home.

Special Design for Maximum Network Coverage
Two detachable advanced antennas reinforce the wireless connection between the router and every device with more stability and flexibility. A built-in power amplifier and low noise amplifier also help provide wider coverage by improving the router’s sending and receiving capabilities.

Used for up to 32 Devices with Superior Stability

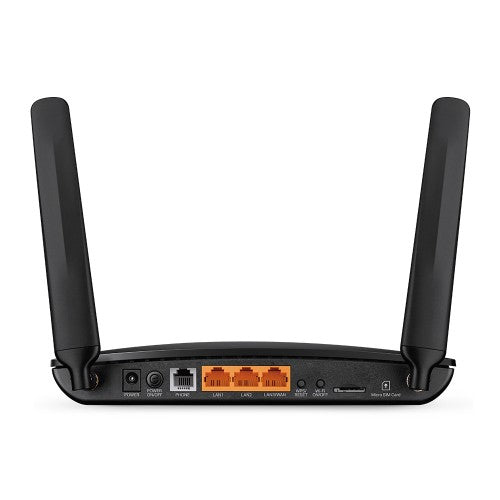

Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 3 LAN ports stand ready to provide internet for wired devices like desktop computers, printers, and more.

Available WAN Connection Backup
With a fully functional WAN/LAN Port, TL-MR6500v also works as a router which is compatible with cable, fiber, and DSL modem. Its WAN and 3G/4G failover backup strategy keeps a sustained internet connection no matter your situation.

Control at Your Fingertips
The powerful Tether app lets you monitor and manage your network settings easily from your phone (Android or iOS).
Easily set up Parental Controls, Guest Network, and QoS for your home network via Tether.

Specifications

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
DSL features
DSL WAN	No
Mobile network
SIM card slot	Yes
3G/4G USB modem compatibility	Yes
Mobile network generation	4G
3G	Yes
4G	Yes
4G bands supported	800,900,1800,2100,2300,2500,2600 MHz
3G standards	DC-HSPA+, HSPA, HSPA+, UMTS
4G standard	LTE-TDD & LTE-FDD
Dual SIM support	No
SIM card type	MicroSIM
3G bands supported	900,2100 MHz
Network
VoIP protocols	SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.729AB, G.726
Guest access	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN	Yes
VPN tunnels quantity	10
Port forwarding	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Port triggering	Yes
Number of guest networks (2.4 GHz)	1
VPN server	PPTP VPN, OpenVPN
VPN Passthrough	Yes
Static route	Yes
Dynamic DNS (DDNS)	Yes
Protocols
DMZ support	Yes
VoIP protocols	SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.729AB, G.726
Universal Plug and Play (UPnP)	Yes
DHCP server	Yes
DHCP client	Yes
Management features
Universal Plug and Play (UPnP)	Yes
WPS push button	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Security
VPN tunnels quantity	10
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Guest access	Yes
Firewall security	: DoS, SPI Firewall, IP and MAC Address Binding
Firewall	Yes
DMZ support	Yes
Parental control	Yes
Performance
Memory card slot(s)	No
Weight & dimensions
Package width	307 mm
Package weight	640 g
Package height	70 mm
Package depth	223 mm
Width	202 mm
Height	33.6 mm
Depth	141 mm
WAN connection
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	Yes
3G/4G USB modem compatibility	Yes
Dual SIM support	No
WAN connection type	RJ-45
Wireless LAN features
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi band	Single-band (2.4 GHz)
WLAN data transfer rate (first band)	300 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ports & interfaces
USB port	No
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
Memory card slot(s)	No
Design
Product type	Tabletop router
Wall mountable	Yes
On/off switch	Yes
Product colour	Black
Packaging content
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes
Antenna
Antenna design	External
Detachable antenna(s)	Yes
Antennas quantity	2
Features
Harmonized System (HS) code	85176990
Power
Power source type	DC
Output voltage	12 V
Output current	1 A
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Packaging data
Package width	307 mm
Package weight	640 g
Package height	70 mm
Package depth	223 mm
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes
Logistics data
Harmonized System (HS) code	85176990
