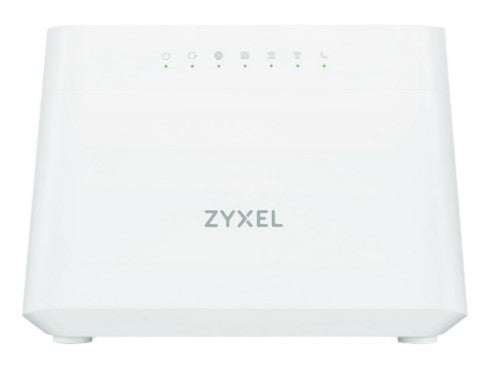

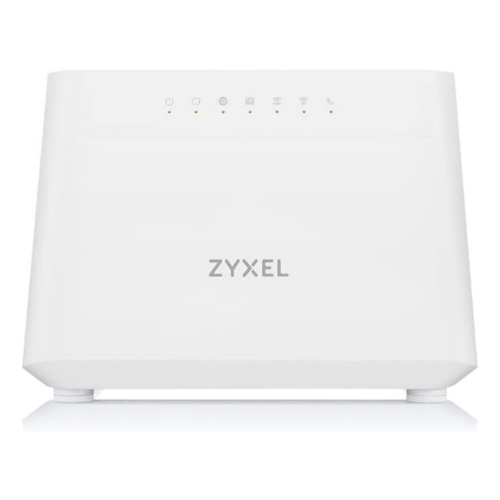

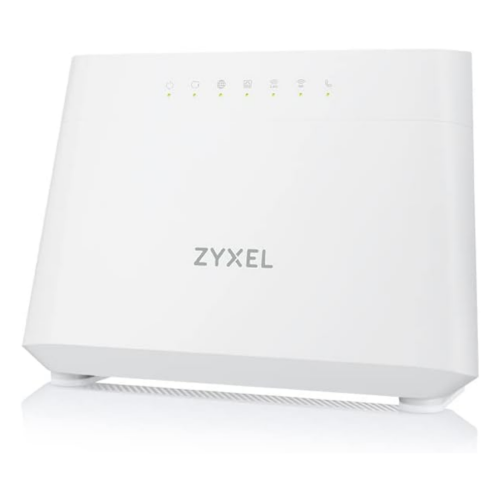

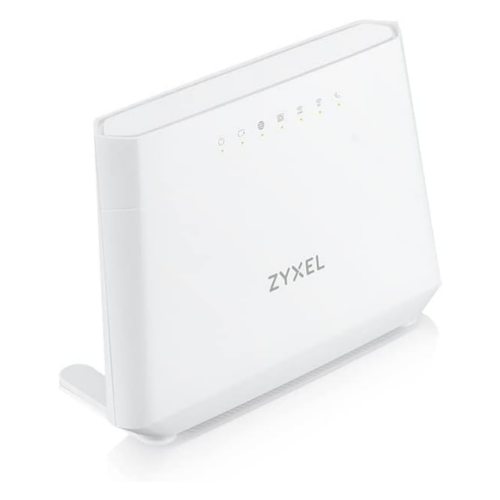

Zyxel DX3301-T0 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White

Dual-Band Wireless AX1800 VDSL2 Gigabit IAD, USB, 2 x POTS FXS

Description

The Zyxel DX3301-T0/DX3300-T0/EX3301-T0/EX3300-T0 Series provides high-speed internet access with QoS support to meet the worldwide market demand for triple-play services. With the built-in 2x2 802.11ax WLAN function and Zyxel MPro Mesh TM Solutions, the Series provides seamless WiFi experience and superior, feature-rich WiFi connectivity for service providers to deliver high-performance internet access services. WiFi 6 technology for superior lag-free performance Supporting the latest WiFi 6 (11ax) standard, the Series offers speeds of up to 1200 Mbps* with 2x2 802.11ax and 574 Mbps* with 2x2 802.11ax. The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA) and beamforming technologies empower the Series to deliver high speed internet for multi-streaming data access and optimal WiFi experience without dead zones.

Specifications

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Auto MDI/MDI-X	Yes
DSL features
DSL WAN	Yes
ADSL	Yes
ADSL2+	Yes
VDSL	Yes
VDSL2	Yes
Mobile network
SIM card slot	No
3G/4G USB modem compatibility	No
5G	No
3G	No
4G	No
Network
Network address translation (NAT)	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Port forwarding	Yes
Networking standards	IEEE 802.1Q
Ethernet LAN data rates	1000 Mbit/s
Automatic channel selection	Yes
Auto MDI/MDI-X	Yes
Dynamic DNS (DDNS)	Yes
Management features
Universal Plug and Play (UPnP)	Yes
Web-based management	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Intelligent Mesh technology	Yes
MU-MIMO technology	Yes
MIMO	Yes
Performance
Voice codecs	G.711a, G.722, G.726, G.729
Automatic channel selection	Yes
WAN connection
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No
Wireless LAN features
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ports & interfaces
USB port	Yes
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes
Security
Network address translation (NAT)	Yes
MAC address filtering	Yes
Firewall	Yes
Protocols
Voice codecs	G.711a, G.722, G.726, G.729
Universal Plug and Play (UPnP)	Yes
DHCP server	Yes
DHCP client	Yes
Design
Product type	Tabletop router
On/off switch	Yes
LED indicators	LAN, Power, WAN, WLAN, WPS
Product colour	White
Indication light	Yes
Antenna
Antenna design	Internal
Features
Harmonized System (HS) code	85176990
Power
Power source type	DC
Operational conditions
Storage temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	220 mm
Weight	387 g
Height	153 mm
Depth	35 mm
Logistics data
Harmonized System (HS) code	85176990
