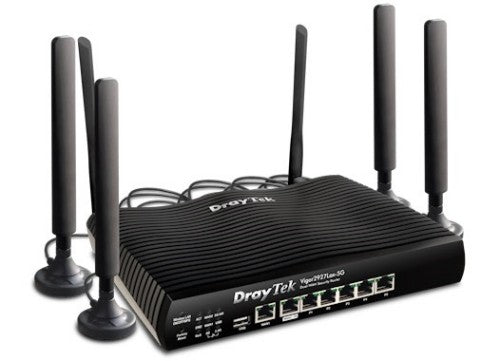

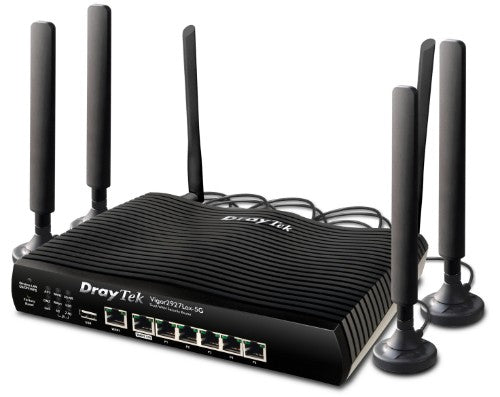

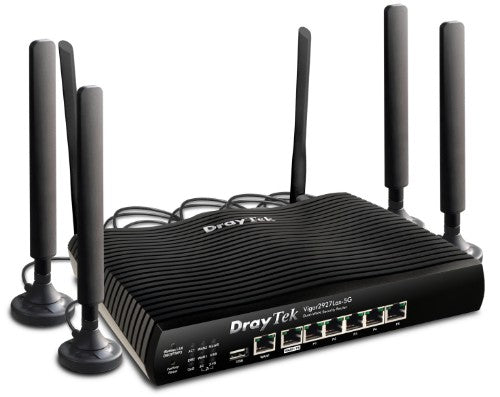

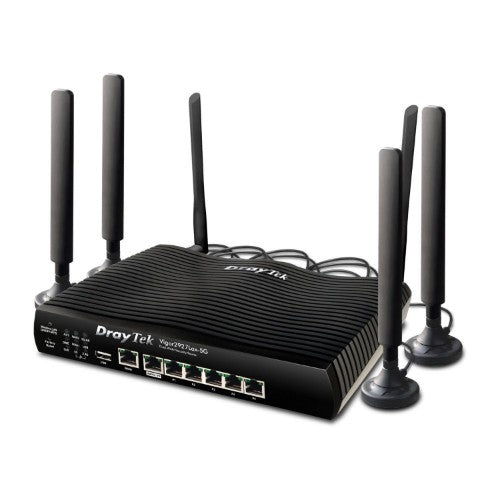

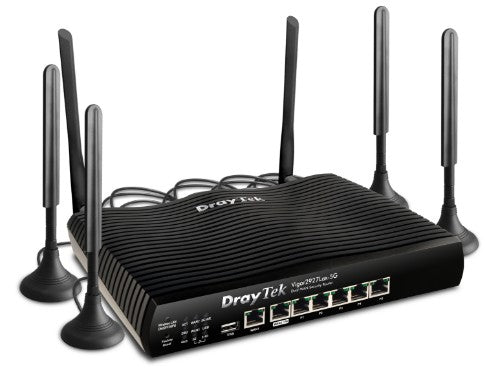

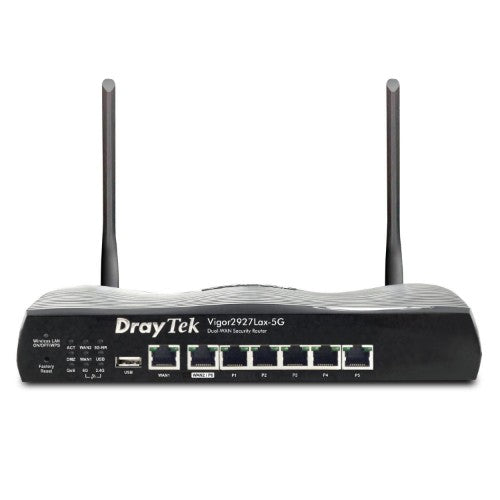

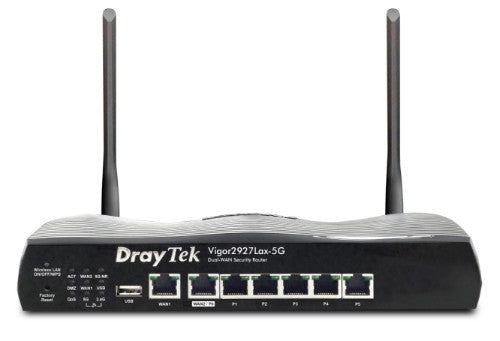

DrayTek Vigor 2927LAX-5G-K router | with Wi-Fi 6 AX3000 wireless | and integrated 5G/LTE modem

Vigor 2927Lax-5G router with Wi-Fi 6 AX3000 wireless and integrated 5G/LTE modem

Key Features

• Dual-WAN Gigabit Ethernet WAN Router with Load Balancing & Failover
• Up to 950Mbps Throughput per WAN interface, 1800Mbps in total
• Up to 300Mbps IPsec VPN Throughput
• 50 LAN-to-LAN & Remote Teleworker VPN Tunnels
• 25 DrayTek SSL VPN Tunnels
• 5+1 Gigabit RJ-45 LAN Ports
• 5G / LTE with dual-SIMs for second backup telco – New!
• AX3000 – Wi-Fi 6 Dual Band Wireless
• 8 LAN Subnets with VLANs (Port-based / 802.1q)
• SPI Firewall and Content Filtering
• Optional VigorCare Available
• Can be centrally Managed by VigorACS

Description

The DrayTek Vigor 2927Lax 5G router is a top choice for SMEs looking for high-performance networking solutions. With its 5G/LTE module, Wi-Fi 6 capabilities, and enhanced firewall features, it offers lightning-fast speeds and secure connections. The router also supports multiple WAN interfaces for increased network accessibility and redundancy.

This router comes equipped with Multi-WAN Load Balancing Firewall and VPN server/client protocols like IPSec, OpenVPN and WireGuard. With flexible Internet connectivity options for FTTP Fibre Broadband and 5G mobile networks, users can enjoy fast and secure connections. The Wi-Fi 6 module further enhances wireless speeds and safety, providing a reliable network solution for businesses.

Specifications

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Full duplex	Yes
Auto MDI/MDI-X	Yes
Cabling technology	10/100/1000Base-T(X)
DSL features
DSL WAN	No
Mobile network
SIM card slot	Yes
3G/4G USB modem compatibility	Yes
Mobile network connection	Yes
Mobile network generation	5G
5G	Yes
3G	Yes
4G	Yes
Short Message Service (SMS)	Yes
3G standards	WCDMA
4G standard	LTE-TDD & LTE-FDD
Dual SIM support	Yes
5G standard	NR, Sub6 NSA, Sub6 SA, Sub6 SA/NSA
Network
Wake-on-LAN ready	Yes
Short Message Service (SMS)	Yes
Routing protocols	BGP
Network address translation (NAT)	Yes
Guest access	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
VPN tunnels quantity	50
VPN support	IPsec IKEv1, IKEv2, IKEv2 EAP IPsec-XAuth DrayTek SSL VPN OpenVPN WireGuard GRE over IPsec PPTP L2TP, L2TP over IPsec
Port forwarding	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Cabling technology	10/100/1000Base-T(X)
Port triggering	Yes
Number of guest networks (5 GHz)	4
Number of guest networks (2.4 GHz)	4
Wireless radio	Yes
Wireless Distribution System (WDS) bridge	Yes
USB sharing	Yes
Support Samba (storage)	Yes
VPN server	Yes
VPN Passthrough	Yes
Static route	Yes
SSID-based VLAN assignment	Yes
Policy-based routing	Yes
Multicast support	Yes
Load balancing system	Yes
Dynamic DNS (DDNS)	Yes
Port mirroring	Yes
Number of VLANs	8
VPN throughput	800 Mbit/s
Auto-sensing	Yes
Maximum Tx power (5 GHz)	5 dBmW
Maximum Tx power (2.4 GHz)	4.5 dBmW
Protocols
DMZ support	Yes
Universal Plug and Play (UPnP)	Yes
Routing protocols	BGP
DHCP server	Yes
DHCP client	Yes
Management features
Universal Plug and Play (UPnP)	Yes
WPS push button	Yes
Web-based management	Yes
Wake-on-LAN ready	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Bandwidth control	Yes
Web-based setup wizard	Yes
Intelligent Mesh technology	Yes
MU-MIMO technology	Yes
MIMO	Yes
Security
VPN tunnels quantity	50
VPN support	IPsec IKEv1, IKEv2, IKEv2 EAP IPsec-XAuth DrayTek SSL VPN OpenVPN WireGuard GRE over IPsec PPTP L2TP, L2TP over IPsec
URL filtering	Yes
System event log	Yes
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, SHA-1, SHA-256, SNMP, SNMPv2, SNMPv3, WPA2-PSK, WPA2-Personal, WPA2-RADIUS, WPA3, WPA3-Enterprise, WPA3-Personal
Network address translation (NAT)	Yes
IP address filtering	Yes
Guest access	Yes
Firewall	Yes
DoS attack prevention	Yes
DMZ support	Yes
Filtering	Yes
Schedule access	Yes
Parental control	Yes
Stateful Packet Inspection (SPI)	Yes
Access Control List (ACL)	Yes
Network address translation (NAT) throughput	1800 Mbit/s
DDoS protection	Yes
Performance
Firmware upgradeable	Yes
Web-based setup wizard	Yes
WAN connection
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	Yes
3G/4G USB modem compatibility	Yes
Dual SIM support	Yes
Wireless LAN features
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	3000 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ports & interfaces
USB port	Yes
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Design
Wall mountable	Yes
On/off switch	Yes
LED indicators	DMZ, LAN, LTE, Power, Status, USB, WAN, WLAN
Rack capacity	1U
Packaging content
Quick start guide	Yes
Cables included	LAN (RJ-45)
AC adapter included	Yes
Antenna included	Yes
Antenna
Antenna design	External
Detachable antenna(s)	Yes
Features
Firmware upgradeable	Yes
Operating system installed	DrayOS
Power
Power source type	AC
Power consumption (typical)	31.2 W
Operational conditions
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 45 °C
Weight & dimensions
Width	241 mm
Weight	670 g
Height	44 mm
Depth	165 mm
Packaging data
Quick start guide	Yes
Cables included	LAN (RJ-45)
AC adapter included	Yes
Antenna included	Yes
Technical details
Vendor code	V2927LAX-5G-K
Other features
Mobile network connection	Yes
