TP-LINK

TP-Link Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge

SKU EAP211-BRIDGE KIT
£74.60
£74.60
Excluding taxes
3x Gigabit Ethernet Ports, IEEE 802.11 a/n/ac 5 GHz (867 Mbps), 1000m max, IP65

Key Features

  • Up to 0.62 mi (1 km) Transmission Distance
  • Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever
  • Plug-and-Play with Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go-ideal for quick deployments
  • Unique Design for Multi-Bridge Auto-Pairing: Effortlessly connect multiple bridges with PtMP Auto-Pairing. Simply dial the role switch and press the pair button-no portal login needed. Supports up to 1-to-4 multi-bridge connections
  • App-Guided Alignment: Visualized App-Guided Alignment for Long-Distance Setups and Instant Speed Testing for Installation Verification
  • Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply system)

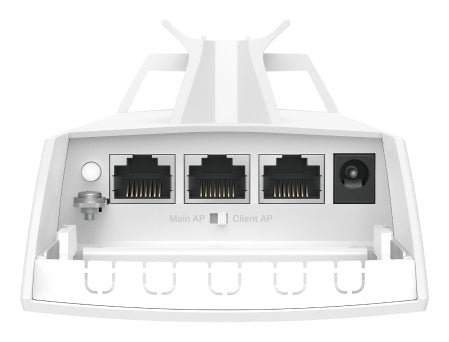

  • 3× Gigabit Ethernet Ports: Connects more cameras and devices without an extra switch△
  • Ideal for Outdoor Scenarios: IP65 weatherproof enclosure and operating range of -40 °C to +70 °C
  • Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App

Description

EAP211-Bridge KIT
Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge

- 802.11ac, up to 867 Mbps on 5 GHz
- Up to 0.62 mi (1 km) Long-Range Transmission
- Auto-Pairing and Multi-Bridge Auto-Pairing
- App-Guided Alignment and Speed Testing
- 3× Gigabit Ethernet Ports
- 802.3af PoE & DC Power Supply & Passive PoE
- IP65 Weatherproof and Operating Range of -40 °C to +70 °C.
- Remote Monitoring & Management

Specifications

Data transmission
Maximum data transfer rate 867 Mbit/s
Maximum transfer distance 1000 m
Antenna
Antenna gain level (max) 7 dBi
Antenna design Internal
Antenna type 2x2
Wireless LAN features
Frequency band 5 GHz
Antenna gain level (max) 7 dBi
Wi-Fi Yes
Wi-Fi band Single-band (5 GHz)
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max) 867 Mbit/s
Antenna type 2x2
Network
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Cabling technology 10/100/1000Base-T(X)
Ethernet LAN interface type Gigabit Ethernet
Frequency band 5 GHz
Ports & interfaces
Ethernet LAN Yes
Connectivity technology Wired & Wireless
Ethernet LAN (RJ-45) ports 3
DC-in jack Yes
Cabling technology 10/100/1000Base-T(X)
Security
Security algorithms SNMP, SNMPv2, SNMPv3, SSH
MAC address filtering Yes
Management features
Web-based management Yes
LED indicators Power
Features
Product type Network bridge
Product colour White
Reset button Yes
Quality of Service (QoS) support Yes
International Protection (IP) code IP65
LED indicators Power
Mounting type Pole
Power
Power source type DC, PoE
DC input voltage 12 V
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) voltage 24 V
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Certificates
Certification CE, FCC, RoHS
Technical details
Product colour White
Weight & dimensions
Width 224 mm
Depth 79 mm
Height 60 mm
Packaging content
Cables included AC
PoE+ Injector(s) Yes
