TP-LINK

TP-Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge

SKU EAP215-BRIDGE KIT
£89.63
£89.63
Excluding taxes
3x Gigabit Ethernet Ports, IEEE 802.11 a/n/ac 5 GHz (867 Mbps), 5000m max, IP65

Key Features

  • 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate
  • Ideal for long-range wireless transmission up to 5 km
  • Auto-pairing and agile LEDs for efficient deployment

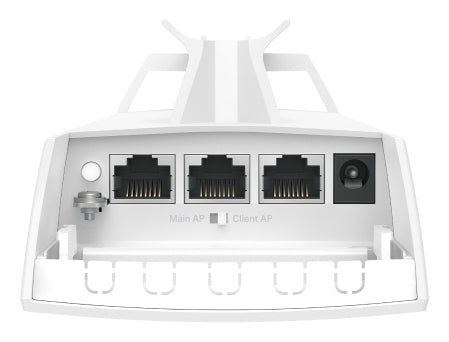

  • 3 × Gigabit Ethernet ports for more high-speed IP camera connections
  • Supports Omada SDN for remote and centralized management
  • IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability
  • Supports Passive PoE for flexible deployment (adapter included)

Description

EAP215-Bridge KIT
Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge

- 802.11ac, up to 867 Mbps on 5 GHz
- Up to 3.1 mi (5 km) Long-Range Transmission
- Auto-Pairing and Multi-Bridge Auto-Pairing
- App-Guided Alignment and Speed Testing
- 3× Gigabit Ethernet Ports
- 802.3af PoE & DC Power Supply & Passive PoE
- IP65 Weatherproof and Operating Range of -40 °C to +70 °C.
- Remote Monitoring & Management

Specifications

Data transmission
Maximum data transfer rate 867 Mbit/s
Maximum transfer distance 5000 m
Antenna
Antenna gain level (max) 14 dBi
Antenna design Internal
Antenna type 2x2
Wireless LAN features
Frequency band 5 GHz
Antenna gain level (max) 14 dBi
Wi-Fi Yes
Wi-Fi band Single-band (5 GHz)
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max) 867 Mbit/s
Antenna type 2x2
Network
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Cabling technology 10/100/1000Base-T(X)
Ethernet LAN interface type Gigabit Ethernet
Frequency band 5 GHz
Ports & interfaces
Ethernet LAN Yes
Connectivity technology Wired & Wireless
Ethernet LAN (RJ-45) ports 3
DC-in jack Yes
Cabling technology 10/100/1000Base-T(X)
Security
Security algorithms SNMP, SNMPv2, SNMPv3, SSH
MAC address filtering Yes
Management features
Web-based management Yes
LED indicators Power
Features
Product type Network bridge
Product colour White
Reset button Yes
Quality of Service (QoS) support Yes
International Protection (IP) code IP65
LED indicators Power
Mounting type Pole
Power
Power source type DC, PoE
DC input voltage 12 V
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) voltage 24 V
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Certificates
Certification CE, FCC, RoHS
Technical details
Product colour White
Weight & dimensions
Width 224 mm
Depth 79 mm
Height 60 mm
Packaging content
Cables included AC
PoE+ Injector(s) Yes
