StarTech.com SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks

StarTech.com SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks - SATA to IDE Converter - HDD Docking Station (SAT2IDEADP)

Key Features

• Supports 40-pin (3.5in) and 44-pin (2.5in) IDE hard drives
• Durable, metal construction
• Compatible with most 3.5in StarTech.com SATA hard drive docking stations and duplicators
• Large capacity hard drive support, with 48-bit LBA
• Compliant with SATA revision 1.0
• Compatible with PATA (IDE) 66/100/133 MBps hard drives

Description

Use your 2.5in or 3.5in IDE hard drives in a SATA HDD Docking Station

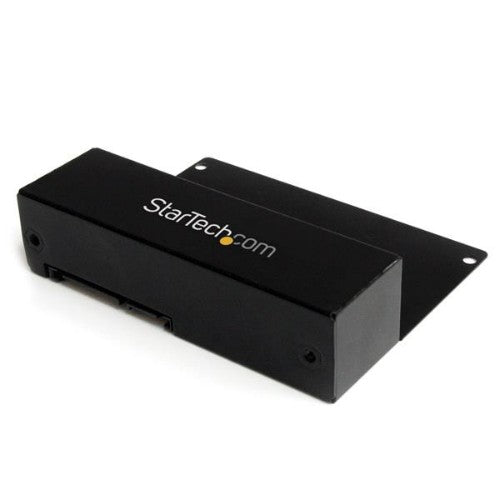

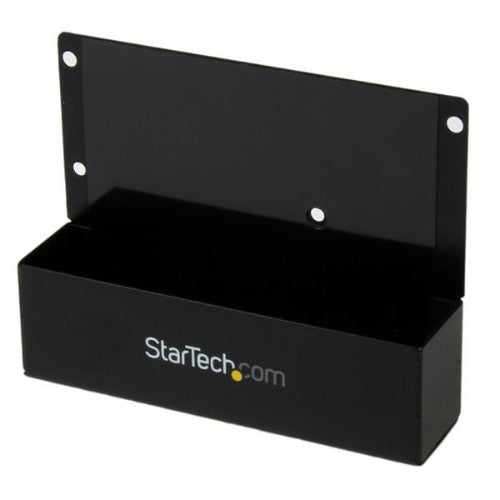

The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).

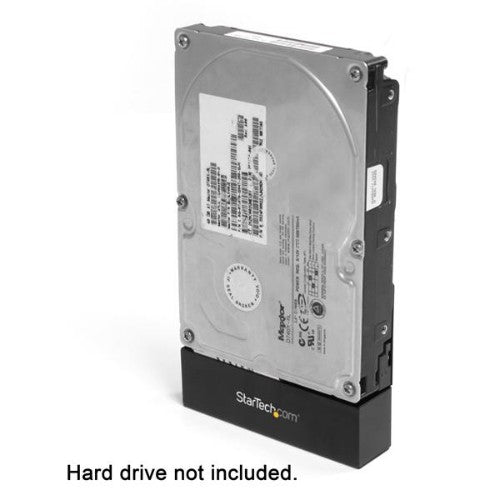

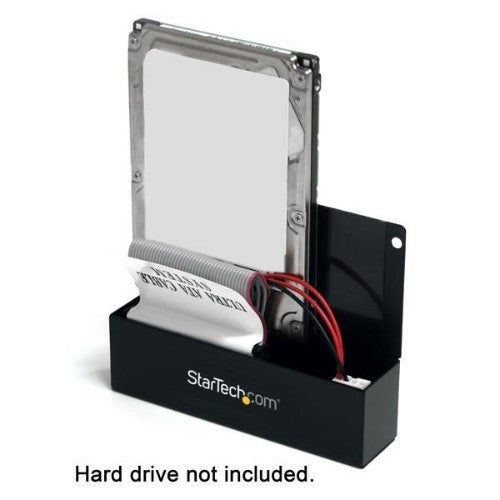

The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.

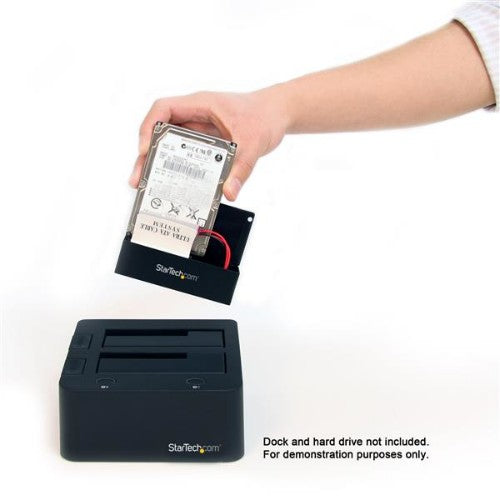

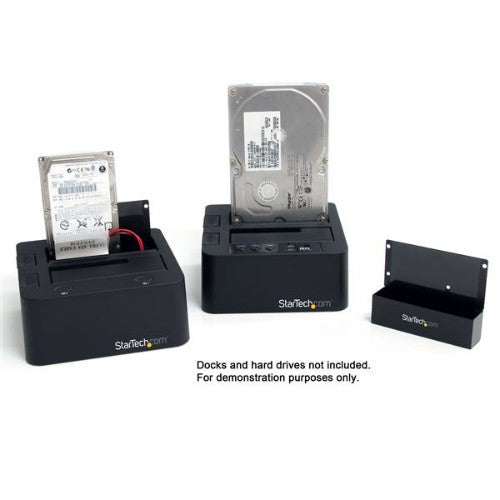

The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators.

Backed by 2-year warranty and free, lifetime technical support.

The StarTech.com Advantage

- Unique design allows any 2.5/3.5in IDE hard drive to be used and inserted (upright) into a SATA HDD docking station or duplicator drive bay
- Backed by a StarTech.com 2-year warranty and free lifetime technical support

Specifications

Ports & interfaces
Connector 2	IDE 40-pin + IDE 44-pin + LP4
Connector 1	SATA 7-pin + SATA 15-pin
Connector 2 gender	Female
Connector 1 gender	Male
Performance
Chipset	JMicron - JM20330
Storage drive sizes supported	2.5,3.5"
Product colour	Black
Certification	CE, FCC, REACH
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Relative humidity	8 - 90%
Operating temperature (T-T)	5 - 80 °C
Certificates
Certification	CE, FCC, REACH
Compliance certificates	RoHS
Weight & dimensions
Width	78 mm
Weight	104 g
Height	26 mm
Depth	101 mm
Packaging content
Manual	Yes
Quantity per pack	1 pc(s)
Packaging data
Package width	110 mm
Package height	52 mm
Package depth	147 mm
Package weight	200 g
Technical details
Product colour	Black
Compliance certificates	RoHS
Design
Product colour	Black
Certification	CE, FCC, REACH
