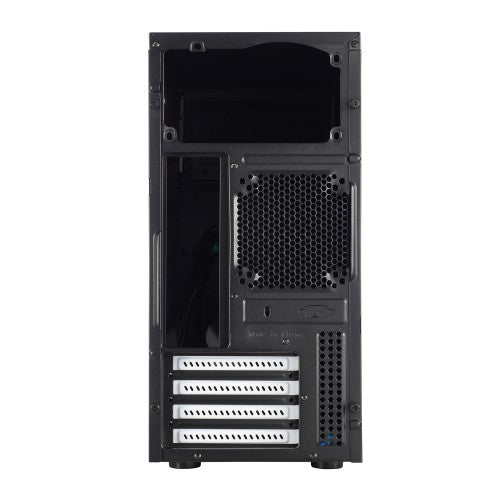

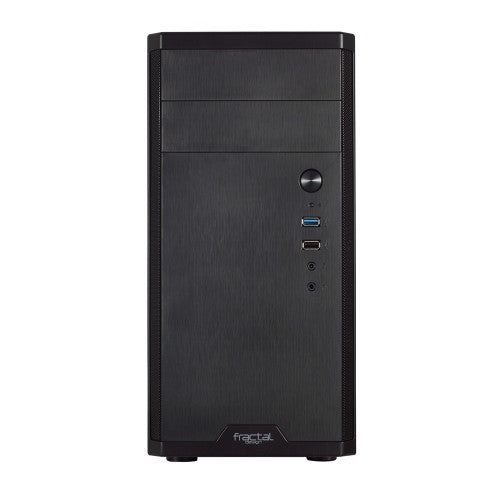

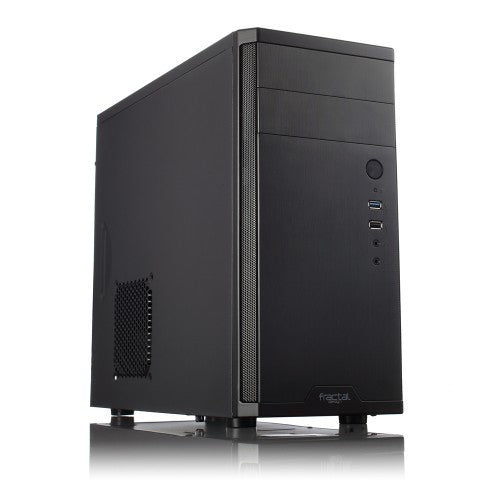

Fractal Design Core 1100 Mini Tower Black

Micro-ATX, Mini ITX, 2 x 5.25", 2 x 3.5"/2.5", ATX PSUs, USB 3.0, USB 2.0

Key Features

• An extremely compact micro ATX case, designed for exceptional airflow and cooling
• Brushed aluminum-look front panel with a sleek, three-dimensional textured finish
• One Fractal Design 120mm fan included

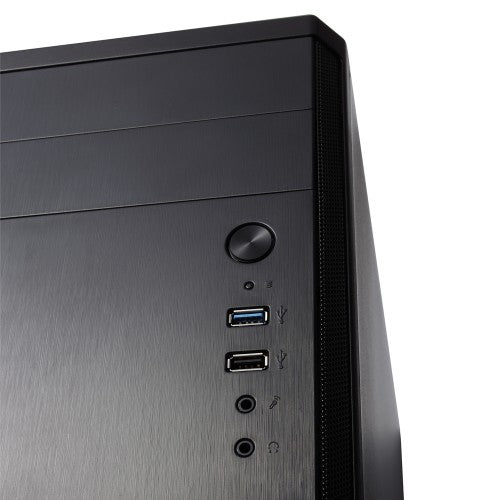

• Easy access I/O on front panel, with audio and both USB 3.0 and USB 2.0 ports
• Front panel dust filters and closed top and bottom panels help maintaining a dust free interior
• Innovative vertical HDD bracket, which can hold two 3.5" drives or three 2.5" drives, or one drive of each size
• Vibration-dampened mounting for both 3.5" drive slots
• Fully painted interior, with Fractal Design signature white details

Reasons To Buy

Brushed aluminum

Brushed aluminum-look front panel with a sleek, three-dimensional textured finish

1x 120 mm fan included

One Fractal Design 120 mm fan included

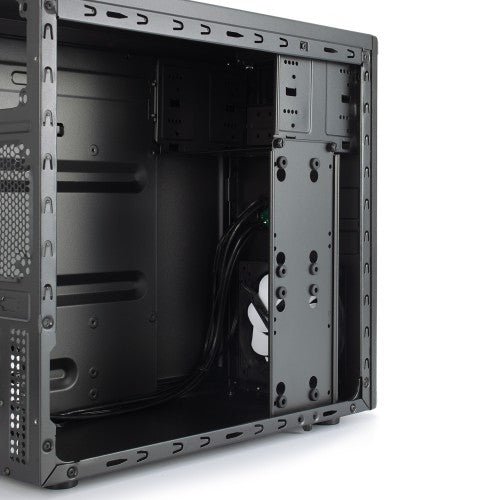

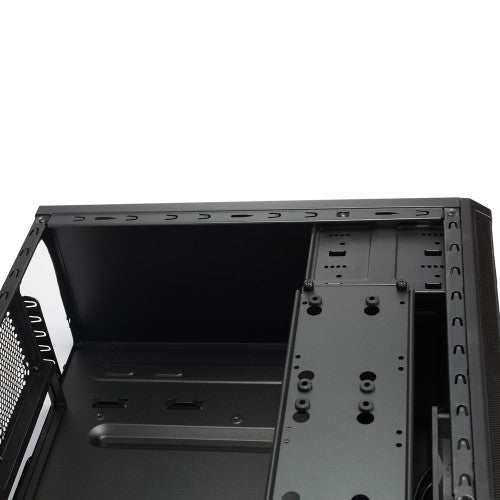

Smart HDD Bracket

Innovative vertical HDD bracket, which can hold two 3.5" drives or three 2.5" drives, or one drive of each size

Description

Despite its extremely small outer dimensions, the Core 1100 mATX case provides everything you need. The stylish, Scandinavian exterior design is matched by the fully painted interior, complete with the signature white details of Fractal Design. The case is optimized for airflow with a straight cooling path, and comes equipped with a pre-installed 120mm fan. The front panel is equipped with dust filters. An innovative vertical hard drive bracket can fit either two 3.5" drives, three 2.5" drives, or one drive of each size. Both the 3.5" drive slots come with silicone vibration dampening grommets

Specifications

Technical details
Number of 5.25" bays	2
Number of 3.5" bays	2
Number of 2.5" bays	3
Number of internal 3.5" bays	2
Supported motherboard form factors	micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Suitable for	Home/Office
Side window	No
Built-in speaker(s)	No
Product colour	Black
Number of expansion slots	4
Maximum CPU cooler height	14.8 cm
Maximum graphics card length	35 cm
Maximum PSU length	18.5 cm
Type	PC
Form factor	Mini Tower
Harmonized System (HS) code	84733080
Indication
LED indicators	HDD, Power
Illumination	No
Ergonomics
LED indicators	HDD, Power
Design
Anti-dust filter	Yes
Number of external 5.25" bays	2
Number of 5.25" bays	2
Number of 3.5" bays	2
Number of 2.5" bays	3
Number of internal 3.5" bays	2
Supported motherboard form factors	micro ATX, Mini-ITX
Suitable for	Home/Office
Side window	No
LED indicators	HDD, Power
Illumination	No
Built-in speaker(s)	No
Product colour	Black
Number of expansion slots	4
Maximum CPU cooler height	14.8 cm
Maximum graphics card length	35 cm
Maximum PSU length	18.5 cm
Type	PC
Form factor	Mini Tower
Power supply
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Audio input	Yes
Audio output	Yes
USB 2.0 ports quantity	1
Cooling
Front radiator installed	No
Rear radiator installed	No
Top radiator installed	No

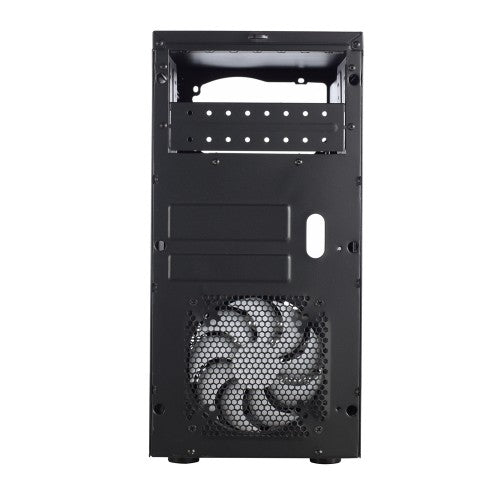

Front fans installed	1x 120 mm
Number of front fans supported (max)	1
Front fans diameters supported	120 mm
Number of side fans supported (max)	1
Side fans diameters supported	120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	92 mm
Fan speed	1200
Liquid cooling capability	No
Storage
Supported HDD sizes	2.5,3.5"
Packaging content
Manual	Yes
Weight & dimensions
Width	175 mm
Depth	410 mm
Height	358 mm
Weight	3.8 kg
Packaging data
Package width	235 mm
Package height	420 mm
Package depth	485 mm
Package weight	4.6 kg
Manual	Yes
Logistics data
Harmonized System (HS) code	84733080
Other features
Manual	Yes
Harmonized System (HS) code	84733080
