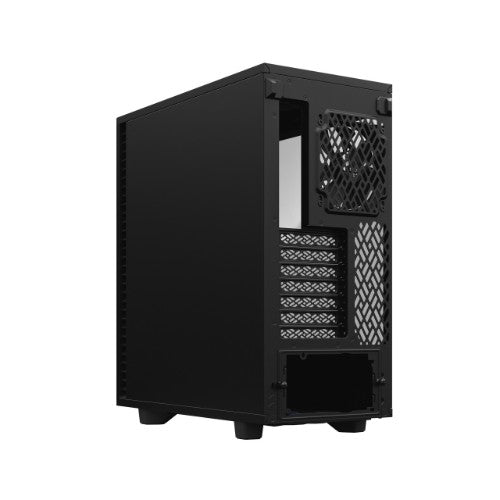

Fractal Design Define 7 Compact Midi Tower Black

Define 7 Compact, 39.3L, 2 x 3.5"/2.5" drive mount, 7 expansion slots, ATX / mATX / Mini-ITX, w/o PSU

Key Features

• Compact yet spacious interior fits ATX, mATX or Mini-ITX motherboards
• Fits GPUs up to 360 mm with a 240 mm radiator in the top
• Top panel effortlessly swaps from solid steel to filtered ventilation

Reasons To Buy

Concealed storage

You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate

More in store

A pair of SSDs are easily mounted straight on the PSU shroud

Front, top and base

Easy-to-clean high airflow nylon filters

Description

The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.

A cleaner look

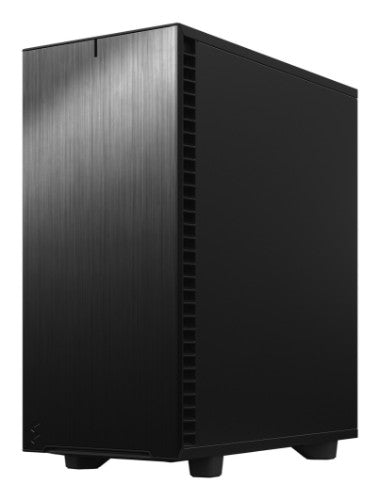

Brushed aluminum front and interchangeable side panels give a very clean look

Compact yet spacious

The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.

Remarkably quiet

- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look
- Top panel effortlessly swaps from solid steel to filtered ventilation

Substantial cooling

- Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm
- 1x 120 mm and 1x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support

Robust Front I/O

Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps.

Concealed storage

You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate.

More in store

A pair of SSDs are easily mounted straight on the PSU shroud.

Front, top and base

Easy-to-clean high airflow nylon filters.

Open access

Remove the entire top to build and route with zero hindrance

Specifications

Design
Volume	39.3 L
Anti-dust filter	Yes
Number of external 5.25" bays	0
Material	Aluminium, Steel
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	2
Number of internal 3.5" bays	2
Rack mounting	No
Supported motherboard form factors	ATX, micro ATX, Micro-ITX
Suitable for	Home/Office
Side window	No
Reset button	Yes
LED indicators	Yes
Illumination	No
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	16.9 cm
Maximum graphics card length	34.1 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Midi Tower
On/off button	Yes
Technical details
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	2
Number of internal 3.5" bays	2
Rack mounting	No
Supported motherboard form factors	ATX, micro ATX, Micro-ITX
Supported HDD sizes	2.5,3.5"
Suitable for	Home/Office
Side window	No
Reset button	Yes
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	16.9 cm
Maximum graphics card length	34.1 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Midi Tower
Harmonized System (HS) code	84733080
Material
Material	Aluminium, Steel
Indication
LED indicators	Yes
Illumination	No
Ergonomics
Reset button	Yes
LED indicators	Yes
On/off button	Yes
Power supply
Number of power supply units	1
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio input	Yes
Audio output	Yes
USB 2.0 ports quantity	2
Cooling
Front radiator installed	No
Front radiator sizes supported	280,360 mm
Rear radiator installed	No
Rear radiator sizes supported	120 mm
Top radiator installed	No
Top radiator sizes supported	240 mm
Front fans installed	1x 140 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	1
Bottom fans diameters supported	120 mm
Liquid cooling capability	Yes
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Volume	39.3 L
Width	210 mm
Depth	427 mm
Height	474 mm
Weight	8.61 kg
Packaging data
Package width	310 mm
Package height	521 mm
Package depth	536 mm
Package weight	10.9 kg
Logistics data
Harmonized System (HS) code	84733080
Other features
Volume	39.3 L
Harmonized System (HS) code	84733080
