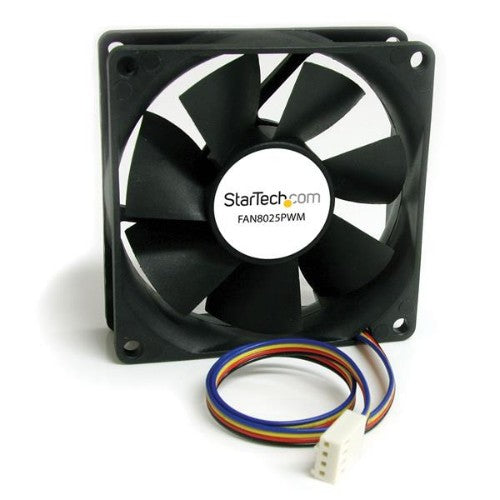

StarTech.com 80x25mm Computer Case Fan with PWM – Pulse Width Modulation Connector

StarTech.com 80x25mm Computer Case Fan with PWM - Pulse Width Modulation Connector - computer cooling Fan - 80mm Fan - pwm Fan

Description

Add a Variable Speed, PWM-Controlled Cooling Fan to a Computer Case

The FAN8025PWM 80mm PWM Case Fan adds an efficient air cooling solution to computer cases or other enclosures, to keep components running optimally.

With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- PWM control enables the fan to be controlled by the motherboard according to current system requirements, ensuring optimal system performance
- Ever Lubricate bearing design increases reliability and lifespan over fans with a traditional sleeve bearing design
- Backed by a StarTech.com 2-year warranty and free lifetime technical support

Specifications

Performance
Suitable location	Computer case
Noise level (high speed)	28 dB
Type	Fan
Operating temperature (T-T)	-10 - 70 °C
Fan diameter	8 cm
Mean time between failures (MTBF)	40000 h
Design
Material	Plastic
Product colour	Black
Technical details
Noise level (high speed)	28 dB
Type	Fan
Fan diameter	8 cm
Material	Plastic
Connector(s)	1 - Molex Fan (4 pin; PWM)
Power
Voltage	12 V
Rated current	0.16 A
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	0 - 65%
Storage relative humidity (H-H)	-20 - 70%
Colour
Product colour	Black
Weight & dimensions
Package depth	143 mm
Package width	96 mm
Package height	32 mm
Package weight	111 g
Weight	86 g
Endurance
Mean time between failures (MTBF)	40000 h
Packaging data
Package depth	143 mm
Package width	96 mm
Package height	32 mm
Package weight	111 g
Other features
Operating relative humidity (H-H)	0 - 65%
Storage relative humidity (H-H)	-20 - 70%
Fan performance	25.02 cfm
Rotational speed	2500 RPM
Dimensions (WxDxH)	80 x 80 x 25 mm
Connector(s)	1 - Molex Fan (4 pin; PWM)
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080
