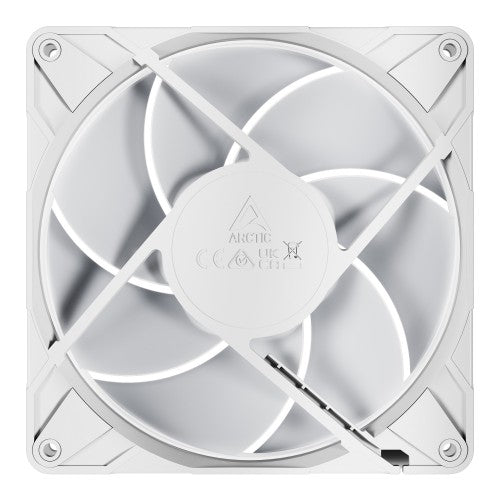

ARCTIC P14 Pro A-RGB (White) 140 mm A-RGB PWM Fan with Cable Splitter

P14 Pro A-RGB (White) 140 mm A-RGB PWM Fan with Cable Splitter

Reasons To Buy

Efficient Performance at High Air Resistance

Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.

Optimized Bearing-Shaft Design (FDB)

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

Automated Two-Plane Balancing

An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

PST – PWM-Based Synchronized Fan Control

An additional PWM connector allows multiple fans to be synchronized in series using a single header.

Description

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin + 4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	400 RPM
Rotational speed (max)	2500 RPM
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Operating temperature (T-T)	0 - 40 °C
Fan diameter	14 cm
Maximum airflow	110 cfm
Maximum air pressure	5.2 mmH2O
Airflow	186 m³/h
Quantity per pack	1 pc(s)
Design
Fan connector	4-pin + 4-pin
Illumination colour	Multi
Product colour	White
Cable length	0.48 m
Illumination LED	Yes
Number of LEDs	12
LED connector type	3-pin
Technical details
Type	Fan
Fan diameter	14 cm
Maximum airflow	110 cfm
Maximum air pressure	5.2 mmH2O
Airflow	186 m³/h
Cable length	0.48 m
Fan connector	4-pin + 4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin + 4-pin
Power
Rated voltage	12 V
Starting voltage	5 V
Rated current	0.35 A
LED voltage	5 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	White
Weight & dimensions
Fan dimensions (W x D x H)	140 x 140 x 27 mm
Package depth	147 mm
Package width	145 mm
Package height	30 mm
Package weight	288 g
Cable length	0.48 m
Packaging data
Package depth	147 mm
Package width	145 mm
Package height	30 mm
Package weight	288 g
Indication
Illumination colour	Multi
Packaging content
Screws included	Yes
Number of screws	4
Other features
LED voltage	5 V
