be quiet! Shadow Wings 2 | 120mm PWM

Shadow Wings 2 120mm PWM, 1100 RPM, 15.9dB max., 1.44 W

Key Features

• Low-noise operation of up to 15.9dB(A) even at its maximum speed of 1,100 rpm
• Airflow-optimized fan blades, resulting in a whisper-quiet operation yet solid cooling
• Anti-vibration mounting system that prevents transmission of vibrations to your PC case
• Rubberized fan frame minimizes vibrations
• High-grade rifle-bearing technology that contributes to an operating lifetime of 80,000 hours
• Secure and easy installation of the fan with push-pins
• PWM controlled fan speed through the motherboard
• Product conception, design and quality control in Germany

Reasons To Buy

WHISPER-QUIET OPERATION

The Shadow Wings 2 120mm PWM fan blades have been optimized to ensure maximum airflow, resulting in a whisper-quiet operation yet solid cooling. They operate at only 15.9 dB(A) even at its maximum speed of 1,100 rpm. The perfect choice for all who appreciate maximum silence for their PC case.

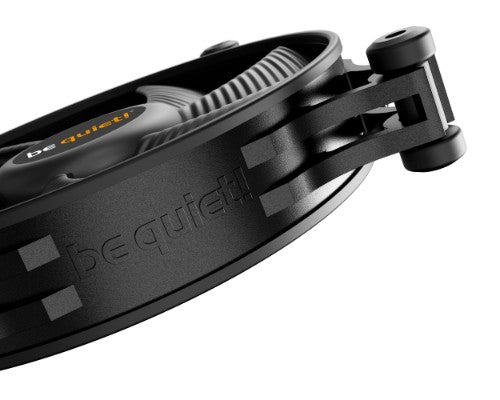

ANTI-VIBRATION CONCEPT

Removable anti-vibration mountings on all four edges of the fan reduce vibrations transmitted to the PC case. In addition, the fan is equipped with a rubberized frame that reinforces the anti-vibration concept and ensures vibrations are reduced to an absolute minimum.

RIFLE BEARING TECHNOLOGY

The Shadow Wings 2 120mm PWM is the hallmark of outstanding reliability. This is achieved by its high-quality rifle bearing technology, which assures a very long lifespan of up to 80,000 hours.

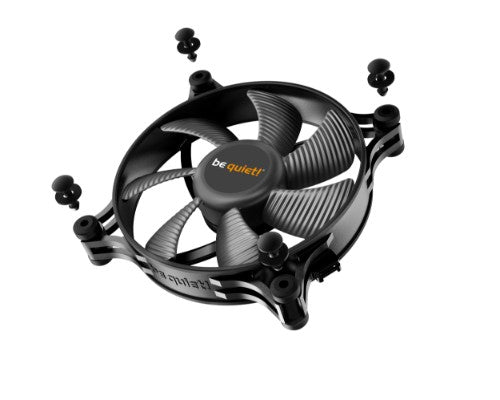

PUSH-PIN MOUNTING

With the Shadow Wings 2 anti-vibration mounting system the fan is simple to install. The push-pins ensure a very fast and secure installation without needing screws.

VARIABLE FAN SPEED FUNCTION

Pulse Width Modulation (PWM) allows compatible 4-pin controllers to vary the speed intelligently and thus minimize the noise level of the fan. With PWM your system can ramp up the cooling when it’s needed, or operate at maximum quietness when it’s not.

Description

World-class quiet and solid cooling

be quiet! Shadow Wings 2 120mm PWM offers whisper-quiet operation and reliable cooling at low revolutions per minute. It is especially recommended for use in very silent PC builds.

Shadow Wings 2 fans are the perfect choice for all who appreciate maximum silence for their PC case.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (max)	1100 RPM
Bearing type	Rifle bearing
Noise level (high speed)	15.9 dB
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	38.5 cfm
Maximum air pressure	0.82 mmH2O
Airflow	65 m³/h
Number of fans	1 fan(s)
Design
Fan connector	4-pin
Number of fans	1 fan(s)
Product colour	Black
Certification	CE, TÜV, UL
Cable length	0.5 m
Technical details
Noise level (high speed)	15.9 dB
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	38.5 cfm
Maximum air pressure	0.82 mmH2O
Airflow	65 m³/h
Number of fans	1 fan(s)
Cable length	0.5 m
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Safety current	0.12 Ah
Rated voltage	12 V
Voltage	6 - 12 V
Rated current	0.12 A
Power supply	1.44 W
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package depth	155 mm
Package width	120 mm
Package height	28 mm
Package weight	156 g
Weight	132 g
Cable length	0.5 m
Packaging data
Package depth	155 mm
Package width	120 mm
Package height	28 mm
Package weight	156 g
Certificates
Certification	CE, TÜV, UL
Other features
Safety current	0.12 Ah
Country of origin	China
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case gross weight	10.7 kg
Products per master (outer) case	60 pc(s)
Master (outer) case width	320 mm
Master (outer) case length	410 mm
Master (outer) case height	290 mm
Harmonized System (HS) code	84733080
