be quiet! SILENT WINGS 4 | 120mm PWM Computer case Fan 12 cm Black 1 pc(s)

SKU BL093
£15.93
£15.93
Excluding taxes
Silent Wings 4 120mm PWM, 1600RPM, 18.9dB, FDB, 48.7cfm, 82.74m3/h

Key Features

  • Optimized fan blades for the highest performance on heat sinks
  • Small tip clearance and fan frame with funnel-shaped air outlets for extremely high air pressure
  • Virtually inaudible operation at regular speed
  • 6-pole fan motor for less vibration and power consumption
  • Fluid-dynamic bearing enables very smooth operation

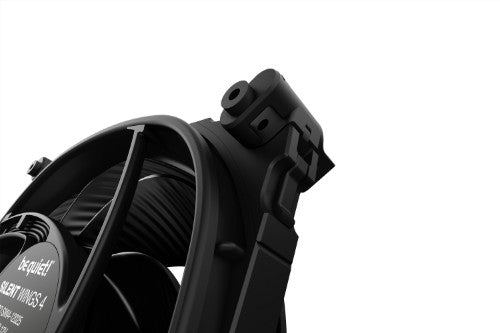

  • Anti-vibration mounting with push pins for installation as a case fan
  • An alternative screwed installation can replace the default mounting option
  • PWM controlled fan speed through the motherboard
  • Super-long lifespan of 300,000h
  • Elegant look with high-grade fan sticker in an all-black design

Description

No compromise silence and performance
Silent Wings 4 120mm PWM combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 120mm PWM the perfect choice for the most demanding applications in high-end systems.

Specifications

Performance
Suitable location Computer case
Fan connector 4-pin
Pulse-width modulation (PWM) support Yes
Rotational speed (max) 1600 RPM
Bearing type Fluid Dynamic Bearing (FDB)
Noise level (high speed) 18.9 dB
Type Fan
Fan diameter 12 cm
Maximum airflow 48.7 cfm
Maximum air pressure 1.79 mmH2O
Airflow 82.74 m³/h
Mean time between failures (MTBF) 300000 h
Quantity per pack 1 pc(s)
Design
Fan connector 4-pin
Product colour Black
Certification CE / ROHS / RU / UKCA / TÜV / WEEE
Cable length 0.5 m
Technical details
Noise level (high speed) 18.9 dB
Type Fan
Fan diameter 12 cm
Maximum airflow 48.7 cfm
Maximum air pressure 1.79 mmH2O
Airflow 82.74 m³/h
Cable length 0.5 m
Fan connector 4-pin
Compliance certificates CE, RoHS, WEEE
Ports & interfaces
Fan connector 4-pin
Power
Rated voltage 12 V
Voltage 5 - 13.2 V
Rated current 0.12 A
Power consumption (typical) 1.44 W
Maximum current 0.13 A
Colour
Product colour Black

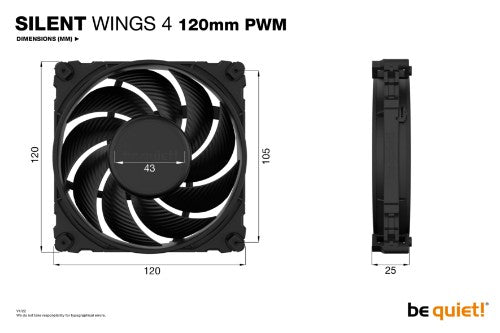

Weight & dimensions
Package depth 192 mm
Package width 141 mm
Package height 31 mm
Width 120 mm
Package weight 343 g
Depth 120 mm
Height 25 mm
Weight 190 g
Cable length 0.5 m
Endurance
Mean time between failures (MTBF) 300000 h
Packaging data
Package depth 192 mm
Package width 141 mm
Package height 31 mm
Package weight 343 g
Certificates
Certification CE / ROHS / RU / UKCA / TÜV / WEEE

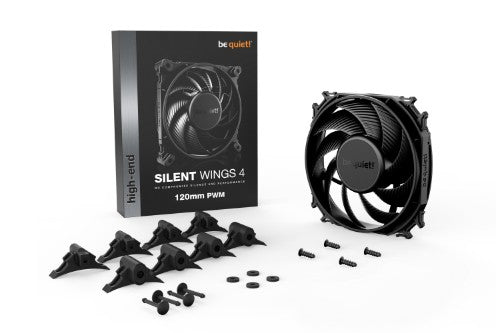

Packaging content
Screws included Yes
Number of screws 4
Number of clips 4
Other features
Country of origin China
Harmonized System (HS) code 84733080
Logistics data
Shipping (inner) case width 38.7 cm
Shipping (inner) case length 43.2 cm
Shipping (inner) case height 37.5 cm
Shipping (inner) case gross weight 14.9 kg
Products per shipping (inner) case 40 pc(s)
Harmonized System (HS) code 84733080
