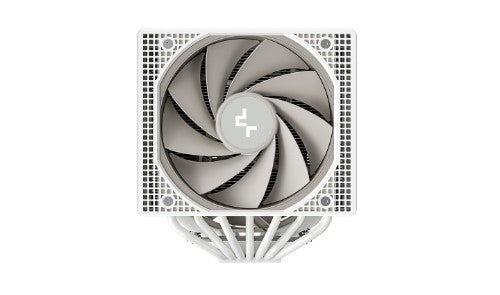

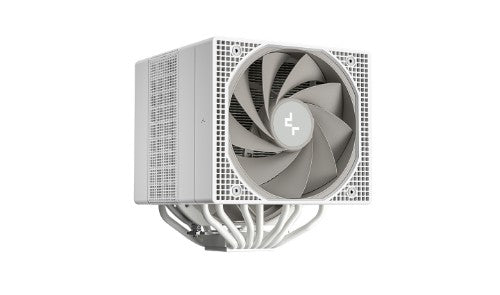

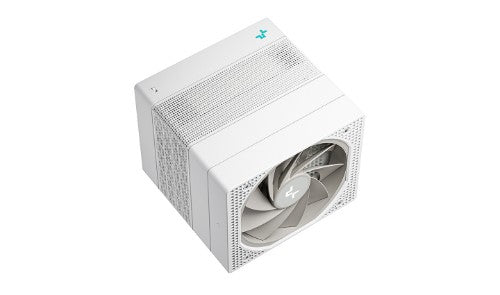

DeepCool ASSASSIN IV Processor Air cooler 120/140 mm Black 1 pc(s)

Intel/AMD, 500-1700 RPM, 29.3 dB, PWM, FDB, 12 VDC, 144×147×164 mm, 1575 g, White

Description

The silent heat killer returns with a new aesthetic and maximum cooling capacity. The ASSASSIN IV provides exceptional performance and is armed with seven heat pipes and newly designed 120 and 140mm FDB fans.

BEAUTY IN SIMPLICITY
The elegant design of the ASSASSIN IV is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.

IN SILENT OR EXTREME MODE, THE ASSASSIN IV REIGNS SUPREME
With a simple slide of a switch, the ASSASSIN IV can morph from a whisper-quiet cooler when low noise is of the utmost importance to an unrestricted cooling powerhouse when peak performance is all that matters.

BE COOL, BE CALM
A key factor in the ASSASSIN IV's extremely silent operation is the use of three-phase, six-stage fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN IV comes with 6 years of limited warranty coverage!

EXCEPTIONAL BY DESIGN
Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Fluid Dynamic Bearing (FDB)
Number of heat pipes	7
Heat pipes diameter	6 mm
Type	Air cooler
Fan diameter	120/140 mm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
Maximum airflow	79.1 cfm
Maximum air pressure	2.44 mmH2O
Number of fans	2 fan(s)
Quantity per pack	1 pc(s)
Fan 2 maximum airflow	58.06 cfm
Fan 2 maximum air pressure	2.1 mmH2O
Fan noise level (min)	22.6 dB
Fan noise level (max)	29.3 dB
Pump motor speed (min)	500 RPM
Pump motor speed (max)	1700 RPM
Design
Fan connector	4-pin
Number of heat pipes	7
Number of fans	2 fan(s)
Product colour	Black
Technical details
Number of heat pipes	7
Heat pipes diameter	6 mm
Type	Air cooler
Fan diameter	120/140 mm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
Maximum airflow	79.1 cfm
Maximum air pressure	2.44 mmH2O
Number of fans	2 fan(s)
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Rated voltage	12 V
Fan power consumption	6 W
Fan voltage	12 V
Fan current	0.3 A
Colour
Product colour	Black
Weight & dimensions

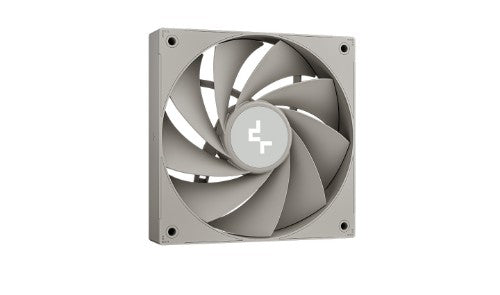

Fan dimensions (W x D x H)	140 x 140 x 25 mm
Heat pipes diameter	6 mm
Width	147 mm
Depth	144 mm
Height	164 mm
Weight	1.57 kg
Fan 2 dimensions (W x D x H)	120 x 120 x 25 mm
Radiator width	11 cm
Radiator depth	14 cm
Radiator height	16 cm
Packaging data
Package type	Box

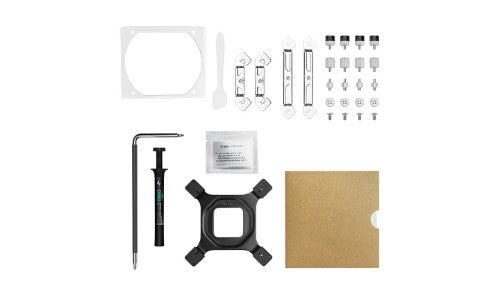

Packaging content
Screws included	Yes
Package type	Box
Mounting kit	Yes
CPU bracket(s)	Yes
Adapter frame included	Yes
