NZXT F140P Computer case Fan 14 cm White 1 pc(s)

500 - 1700 RPM, 93.2 CFM, 4.45 mm-H₂O, 30.0 dBA, 140 x 140 x 25 mm

Key Features

• Seven thick blades are designed for high static pressure so air can be pushed through tight spaces, ideal for mounting on radiators and heatsinks
• Minimal gap between blade edges and frame maximizes the spinning area for higher airflow volume and efficiency
• Chamfered frame design directs air in a powerful concentrated flow pattern, traveling far into the case to cool vital components

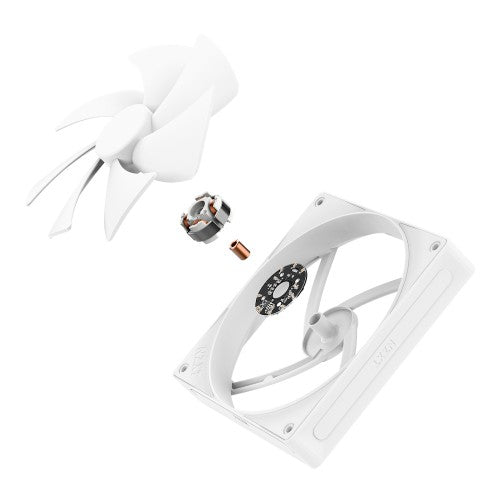

• Fluid dynamic bearings provide unwavering stability, low-noise operation, and a 60,000-hour lifespan
• PWM control dynamically adjusts fan speed for higher output or lower noise based on system temperatures for efficient cooling
• Sturdy frame with rubberized corners absorbs vibrations for low-noise operation, even at high speeds

Description

140mm Static Pressure PWM Case Fan

NZXT Static Pressure Fans deliver strong airflow in tight spaces, like radiators and heatsinks. With optimized blades, chamfered frame, and fluid dynamic bearings, they offer high-performance, low-noise cooling.

High Static Pressure
Pressure-optimized blades force air through tight spaces like radiators and heatsinks.

Efficient Airflow
Minimal blade-to-frame gap maximizes the spinning area for optimal performance.

Powerful Cooling
Chamfered frame directs air in a concentrated pattern that travels far into the case.

Low Noise, Long Lasting
Fluid dynamic bearings ensure quiet operation with a 60,000-hour lifespan.

Speed Regulation
PWM control adjusts speed based on system temperatures for efficient, quiet cooling.

Silent & Stable
Sturdy frame and rubberized corners absorb vibration noise.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Rotational speed (min)	500 RPM
Rotational speed (max)	1700 RPM
Bearing type	Fluid Dynamic Bearing (FDB)
Noise level (high speed)	30 dB
Type	Fan
Fan diameter	14 cm
Maximum airflow	93.2 cfm
Maximum air pressure	4.45 mmH2O
Number of fans	1 fan(s)
Mean time between failures (MTBF)	60000 h
Quantity per pack	1 pc(s)
Fan speed (min)	500 RPM
Fan speed (max)	1700 RPM
Design
Fan connector	4-pin
Number of fans	1 fan(s)
Material	Plastic, Rubber
Product colour	White
Illumination LED	No
Technical details
Noise level (high speed)	30 dB
Type	Fan
Fan diameter	14 cm
Maximum airflow	93.2 cfm
Maximum air pressure	4.45 mmH2O
Number of fans	1 fan(s)
Material	Plastic, Rubber
Fan connector	4-pin
Illumination LED	No
Warranty period	2 year(s)
Ports & interfaces
Fan connector	4-pin
Power
Rated voltage	12 V
Rated current	0.28 A
Power consumption (typical)	2.76 W
Fan voltage	12 V
Fan current	0.23 A
Colour
Product colour	White
Weight & dimensions
Fan dimensions (W x D x H)	140 x 140 x 25 mm
Width	140 mm
Depth	140 mm
Height	25 mm
Endurance
Mean time between failures (MTBF)	60000 h
