StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs

StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs

Description

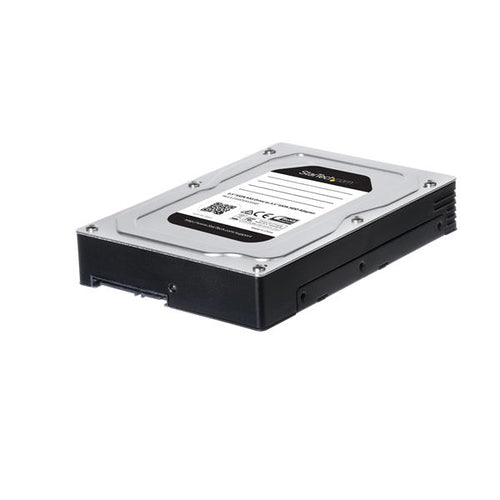

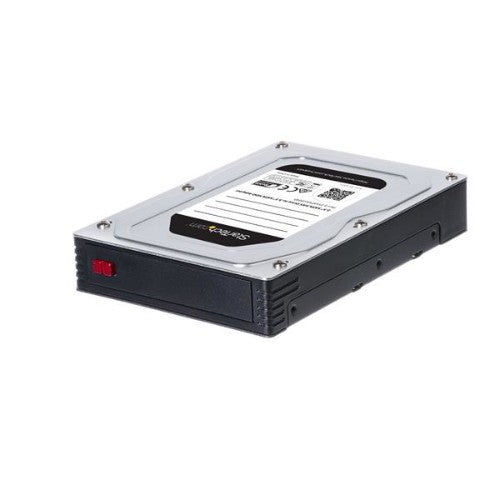

Turn almost any 2.5" SATA/SAS drive into a 3.5" drive

This 2.5" to 3.5" hard drive adapter lets you install a 2.5" SATA or SAS hard drive (HDD) or solid-state drive (SSD) into an internal or external 3.5" drive bay, using standard drive-mounting holes.

Convert a 2.5" drive into a 3.5" drive

The 2.5" to 3.5" hard drive bay adapter lets you install a newer, higher performance drive such as an SSD into a legacy system that may only support a 3.5" hard drive. It provides a cost-efficient way to enhance storage performance and reliability without expensive upgrades to core IT systems. It's also ideal for system administrators who want to build a system that takes advantage of the increased performance of a 2.5" HDD/SSD.

To utilize the full speed potential of your SATA/SAS drive, the adapter supports transfer speeds up to 6Gbps.

Easy and flexible installation

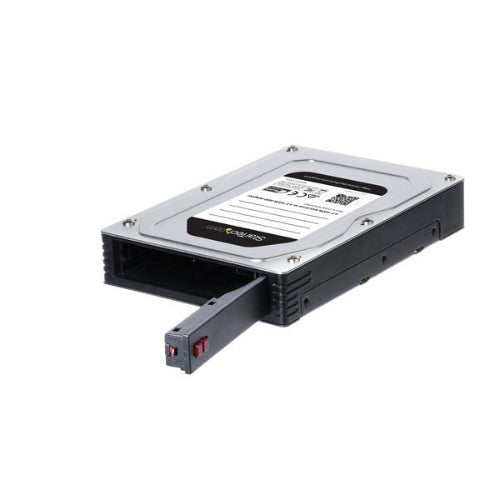

You can install the adapter into a desktop, server, storage-array, hot-swap bay, and drive drawer. It offers permanent installation in a 3.5" drive bay with standard mounting holes. When the adapter is installed, you simply slide a 2.5" HDD/SSD into the adapter enclosure, with no tools required.

The adapter is suitable for drives with a height of up to 15 mm. Virtually any 2.5" SATA/SAS drive can be made to look and function like a 3.5" drive.

Identify and track your drives

The adapter includes a label you can use to track and record information about the installed drive.

The 25SATSAS35HD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Supports 2.5" form factor drives up to 15 mm in height
- Installs into an internal or external 3.5" drive bay; uses standard mounting holes for internal installs
- Tool-less 2.5" drive installation

Specifications

Features
Certification	CE, FCC
HDD size	2.5"
Hot-swap	Yes
Key lock	No
Supported storage drive heights	7,9.5,12.5,15 mm
Type	Carrier panel
Size (imperial)	8.89 cm (3.5")
Number of HDDs supported	1
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Data transfer rate	6 Gbit/s
Product colour	Black, Silver
Material	Aluminium, Plastic
S.M.A.R.T. support	Yes
Technical details
Certification	CE, FCC
HDD size	2.5"
Hot-swap	Yes
Operating relative humidity (H-H)	5 - 65%
Key lock	No
Supported storage drive heights	7,9.5,12.5,15 mm
Type	Carrier panel
Size (imperial)	8.89 cm (3.5")
Operating temperature (T-T)	-20 - 55 °C
Number of HDDs supported	1
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Data transfer rate	6 Gbit/s
Product colour	Black, Silver
Material	Aluminium, Plastic
S.M.A.R.T. support	Yes
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Weight & dimensions
Width	101 mm
Weight	252 g
Height	26 mm
Depth	146 mm
Packaging data
Package weight	252 g
Package dimensions (WxDxH)	112 x 160 x 35 mm
Packaging content
Manual	Yes
Operational conditions
Operating relative humidity (H-H)	5 - 65%
Storage temperature (T-T)	0 - 55 °C
Operating temperature (T-T)	-20 - 55 °C
Logistics data
Harmonized System (HS) code	84733080
