StarTech.com 4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD

StarTech.com 4 Drive Bay Aluminum Trayless Hot Swap Mobile Rack Backplane with Fan & Lock for 3.5in SAS II / SATA III - 6 Gbps Hard Drive

Description

Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps

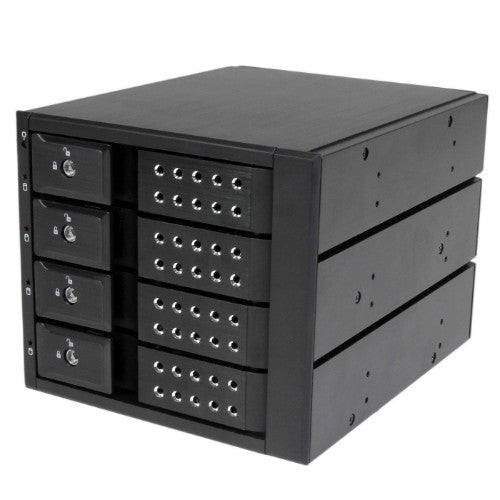

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.

The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Features
LED indicators	Activity, Power
Certification	CE, FCC
Hot-swap	Yes
Key lock	Yes
Number of fans	1 fan(s)
Fan diameter	7 cm
Data transfer rate	6 Gbit/s
Product colour	Black
Material	Aluminium
Technical details
LED indicators	Activity, Power
Certification	CE, FCC
Hot-swap	Yes
Operating relative humidity (H-H)	5 - 85%
Key lock	Yes
Operating temperature (T-T)	0 - 55 °C
Number of fans	1 fan(s)
Fan diameter	7 cm
Data transfer rate	6 Gbit/s
Product colour	Black
Material	Aluminium
Products per master (outer) case	6 pc(s)
Master (outer) case width	385 mm
Master (outer) case length	516 mm
Master (outer) case height	281 mm
Package width	254 mm
Package height	180 mm
Package depth	164 mm
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Ports & interfaces
External SATA ports quantity	4
Weight & dimensions
Width	145 mm
Weight	1.3 kg
Height	124 mm
Depth	197 mm
Packaging data
Package weight	1.59 kg
Package width	254 mm
Package height	180 mm
Package depth	164 mm
Packaging content
Screws included	Yes
Manual	Yes
Cables included	SATA
Operational conditions
Operating relative humidity (H-H)	5 - 85%
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 55 °C
Logistics data
Products per master (outer) case	6 pc(s)
Master (outer) case width	385 mm
Master (outer) case length	516 mm
Master (outer) case height	281 mm
Harmonized System (HS) code	84733080
