StarTech.com 3ft HDMI Female to Male Adapter, 4K High Speed Panel Mount HDMI Cable, 4K 30Hz UHD HDMI, 10.2 Gbps Bandwdith, 4K HDMI Female to HDMI Male, HDMI Panel Mount Connector Cable

StarTech.com StarTech.com 3ft HDMI Female to Male Adapter, 4K High Speed Panel Mount HDMI Cable, 4K 30Hz UHD HDMI, 10.2 Gbps Bandwdith, 4K HDMI Female to HDMI Male, HDMI Panel Mount Connector Cable (HDMIPNLFM3)

Key Features

• HIGH SPEED PANEL MOUNT CABLE: 3 ft (91 cm) HDMI 1.4b cable supports 4K (3840x2160p, 24, 25, 30Hz / 4096x2160p, 24Hz), Full HD (1920x1080p, 120Hz), 10.2 Gbps bandwidth, wide aspect ratio, 8Ch Audio (5.1/7.1/DD+/Dolby TrueHD), 3D Video
• DURABLE: HDMI Ultra HD cable with durable PVC jacket for high strength and reliability; Molded female connector with two 4-40 (0.31"/8mm long) screws to secure on to a machine faceplate/port; Ideal for Commercial environments
• QUALITY CONSTRUCTION: 28AWG wire, corrosion resistant gold-plated connectors, and superior EMI shielding with Al-Mylar foil and copper braid improve signal integrity and reliability, providing higher quality video and audio
• APPLICATIONS: Allows easy access to HDMI ports on your computer/laptop/desktop/workstation; Connect TV/monitor/display/projector; Ideal for use in retail kiosk/booth/lecture podium/embedded applications; Samsung/Sony/Apple TV/Dell/LG
• SPECS: 3 ft (91 cm) / Black / HDMI 1.4 / HDMI Male to Female (panel mountable with two 4-40 screws) / 28 AWG / PVC Jacket / Shield: Al-Mylar foil with Braid / ARC, Deep Color, HDCP 1.4, CEC, YCC601 Color / Supports HDMI 1.4 and earlier

Description

Allows an HDMI® connection to be mounted on a secure and easily accessible panel.

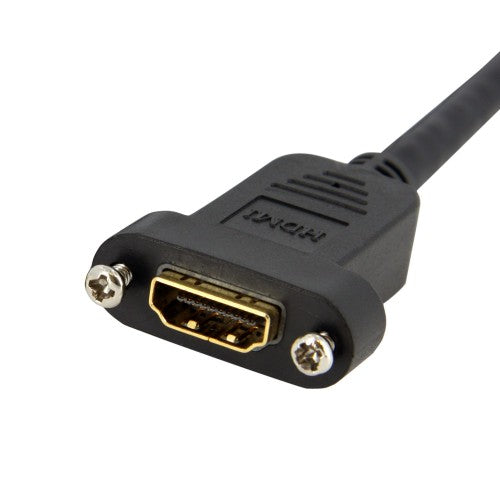

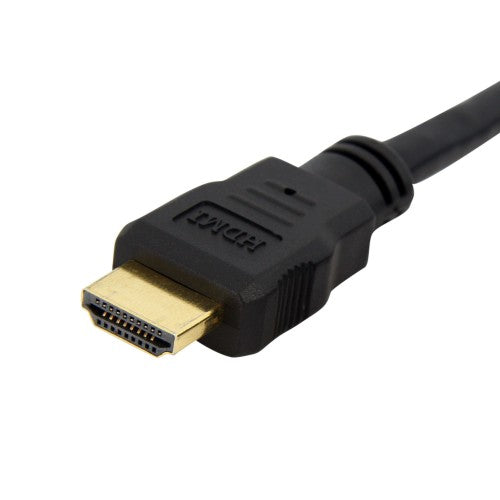

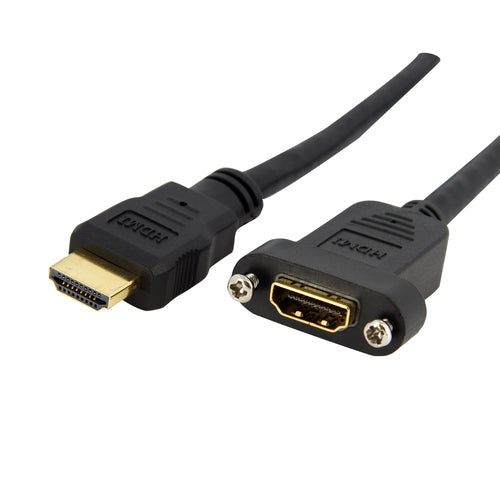

The HDMIPNLFM3 3ft High Speed HDMI® Cable for Panel Mount features an HDMI male connector on one end, and an HDMI panel mount (female) molded connector on the other, providing a well-secured, easy to access HDMI connection on any machine port or faceplate.

Backed by StarTech.com's Lifetime Warranty.

The StarTech.com Advantage

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	120 Hz
Dolby technologies	Dolby Digital Plus, Dolby TrueHD
Audio Return Channel (ARC)	Yes
Product colour	Black
Cable length	0.9 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Female
Connector contacts plating	Gold
AWG wire size	28
HDMI version	1.4
Data transfer rate	10.2 Gbit/s
3D	Yes
Supported graphics resolutions	1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
HDCP	Yes
Plug and Play	Yes
Cable rating	CMG (CM)
Cable jacket material	Polyvinyl chloride (PVC)
HDCP version	1.4
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	5 - 70 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	0 - 85%
Certificates
Compliance certificates	CE, RoHS
Weight & dimensions
Weight	79 g
Cable diameter	6.5 mm
Package weight	84 g
Package width	200 mm
Package depth	220 mm
Package height	1 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package weight	84 g
Package width	200 mm
Package depth	220 mm
Package height	1 mm
Quantity per pack	1 pc(s)
Technical details
Compliance certificates	CE, RoHS
Logistics data
Products per master (outer) case	140 pc(s)
Master (outer) case width	380 mm
Master (outer) case length	430 mm
Master (outer) case height	290 mm
Harmonized System (HS) code	84733080
