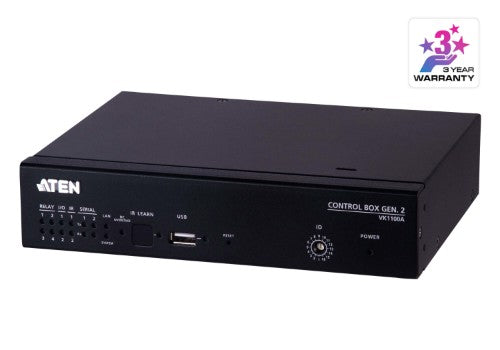

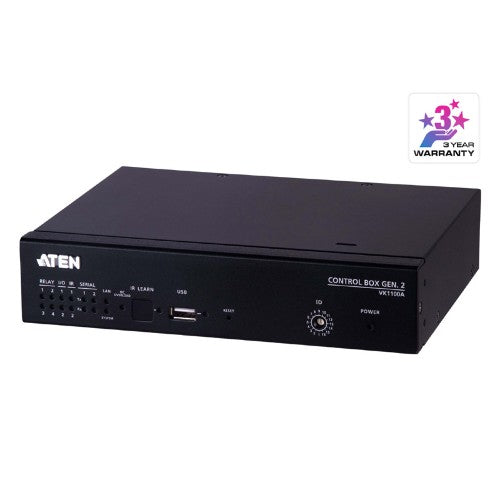

ATEN VK1100A interface cards/adapter

ATEN Control System - Compact Control Box Gen. 2

Key Features

• High-performance processor embedded with quad-core CPU and 512MB memory for designing and controlling complex projects

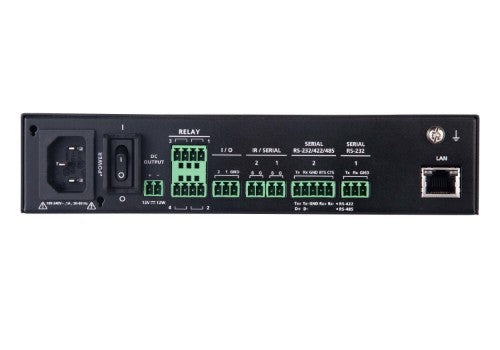

• Supports various interface connections for hardware-software integration and mobile device control
• DC outputs for power supply connections
• USB port for easy project upload
• IR learning function for adding IR device drivers
• Supports native KNX IP for building management systems
• TCP, UDP, Telnet, HTTP, HTTPS, WebSocket, ONVIF, and PJLink compliant
• Supports Pronto formatted IR codes – IR command codes can be entered in Hex format
• Supports Modbus protocol – enables integration with Modbus devices, including TCP, RTU and its checksum data
• Supports Telnet CLI (command-line interface) mode for third-party system integration
• Supports centralized control and management by ATEN Unizon™
• Supports project file backup
• Web GUI for easy system configuration
• Supports SSH communication for convenient data monitoring

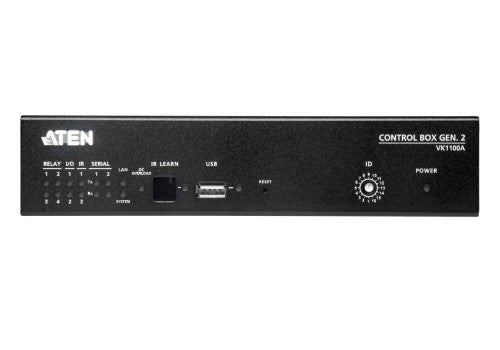

• LED indication of connection and hardware status
• 2 free licenses for mobile control*
• Note: If you require more than 2 licenses, contact the local sales representative. For more information on licenses, please see Specifications.

Description

VK1100A ATEN’s 2nd-generation Control Box equipped with a quad-core CPU, Gbps LAN, and 512MB memory size, provides real-time response and status updates and can process complex, high-loading events with customized GUI designs, as well as multiuser access control to connected devices. Its LAN can be connected to ATEN Unizon™, a centralized management platform streamlining daily AV / IT management that provides users with the convenience to monitor, troubleshoot, and maintain multiple systems all at once.

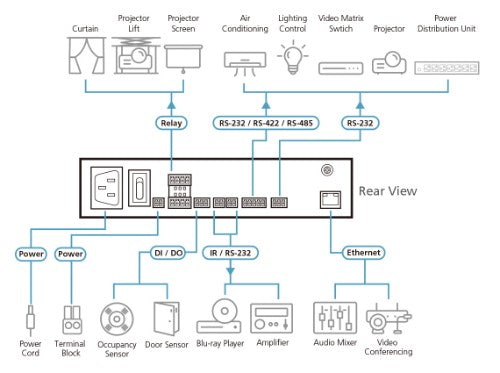

The VK1100A Control Box is designed to easily manage any room setting, and can be deployed into an existing installation environment seamlessly not only with ATEN products, but also nearly any hardware or software device found in a room, including AV equipment, lighting, conference systems, air conditioning, motion sensors, power switches, and many more. VK1100A is the perfect solution for managing mass device deployments such as government agencies, military facilities, corporate organizations, and healthcare institutions.

VK1100A is a part of ATEN’s Control System Series, a standard Ethernet-based management system, which consists of hardware, configurator software, control interfaces, and related services, to control any hardware and software devices within a room setting, such as boardrooms and lecture halls, and to provide direct, centralized management effortlessly via user-defi ned GUIs from any mobile device, ATEN Keypad, and Touch Panel.
