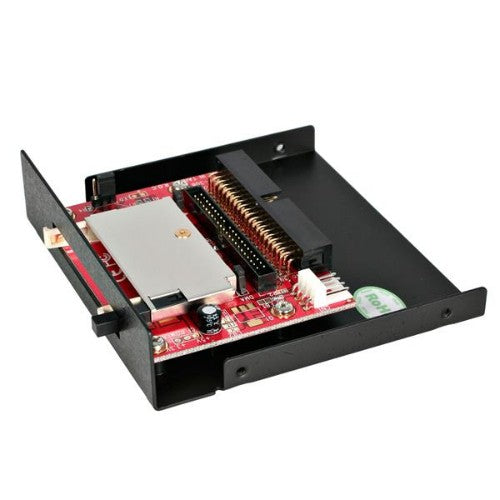

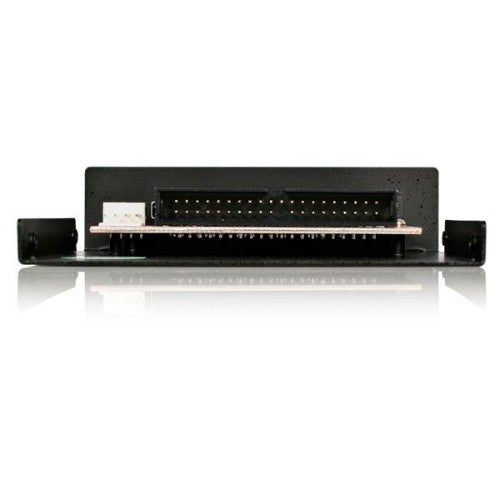

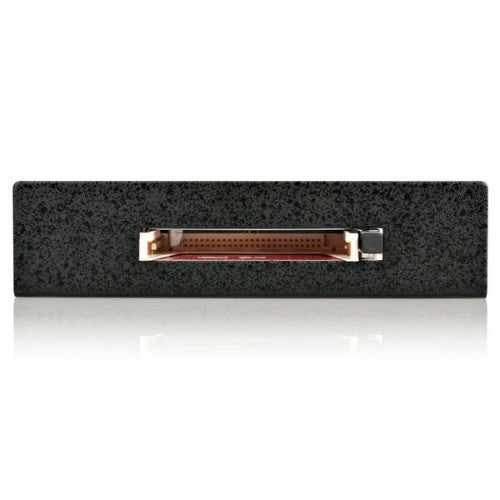

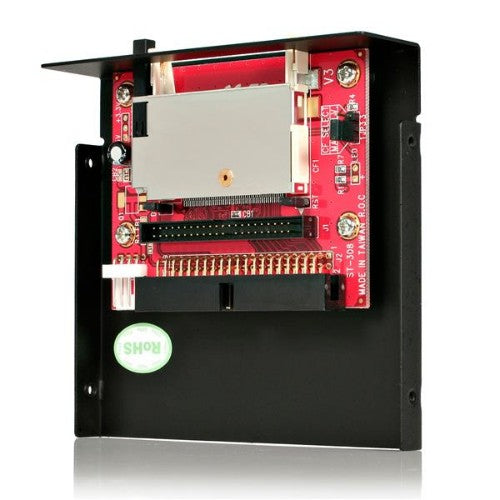

StarTech.com 3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader

3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader

Description

Connect a CF card to a computer through an IDE connector
This Compact Flash IDE adapter is a perfect solution for accessing CompactFlash (CF I, CF II) and IBM Micro Drive media, allowing you to access the flash/micro drive media as if it were an IDE hard drive. The CF/IDE adapter can be installed in the computer case through simple mounting in an available 3.5in drive bay, for connection to the computer IDE bus through either a 40 or 44-pin connection. Designed and constructed to provide a reliable media card platform, the CF IDE adapter is backed by StarTech.com''s 2-year warranty.
The StarTech.com Advantage
- Quick and driver free installation into any IDE 40 pin and 44 pin slot
- Easily swap cards in and out with built-in push button ejector

Specifications

Ports & interfaces
Internal	Yes
Output interface	CF
Host interface	IDE
Technical details
Data transfer rate (max)	0.133 Gbit/s
Compliance certificates	RoHS
Performance
Data transfer rate (max)	0.133 Gbit/s
Harmonized System (HS) code	84733020
Design
Internal	Yes
Features
Data transfer rate (max)	0.133 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	-55 - 85 °C
Storage temperature (T-T)	-55 - 85 °C
Operating relative humidity (H-H)	5 - 85%
Weight & dimensions
Width	97 mm
Depth	100 mm
Height	25 mm
Weight	145 g
Package width	48 mm
Package depth	220 mm
Package height	158 mm
Package weight	215 g
Packaging data
Package width	48 mm
Package depth	220 mm
Package height	158 mm
Package weight	215 g
User guide	Yes
Logistics data
Harmonized System (HS) code	84733020
Packaging content
User guide	Yes
