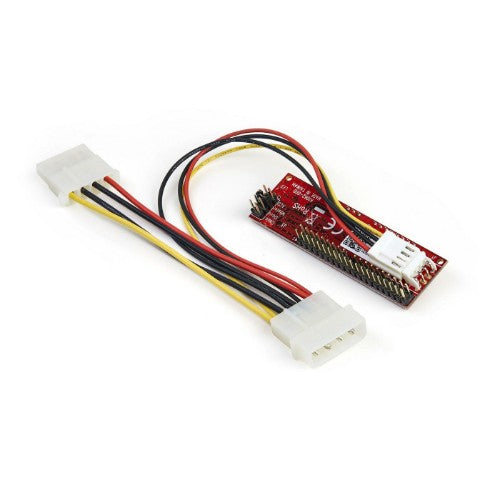

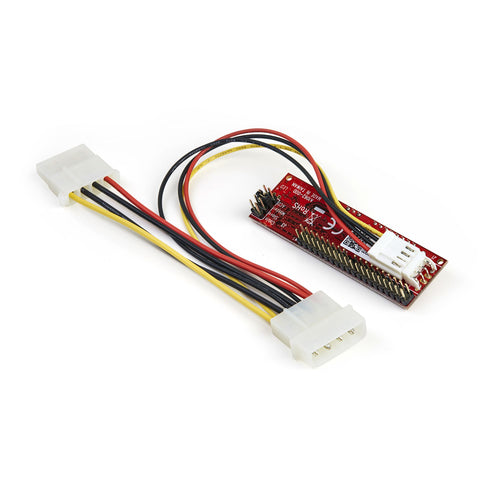

StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter - 40-Pin PATA to 2.5" SATA HDD/SSD/ODD Converter

StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter Converter - 40-Pin PATA to 2.5" SATA HDD / SSD / ODD Converter

Description

Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard

The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.

The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.

The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Internal	Yes
Output interface	SATA
Connector(s)	1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin)
Host interface	IDE
Technical details

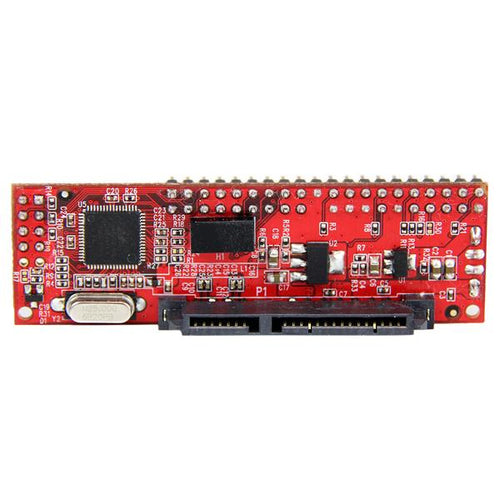

Chipset	Marvell - 88SA8052
Logical block addressing (LBA) support	48 bit
Data transfer rate (max)	0.133 Gbit/s
Material	Plastic, Steel
Compliance certificates	RoHS
Performance
Chipset	Marvell - 88SA8052
Logical block addressing (LBA) support	48 bit
Data transfer rate (max)	0.133 Gbit/s
Product colour	Red
Harmonized System (HS) code	84733020
Certificates
Certification	FCC, CE, TAA, REACH
Colour
Product colour	Red
Design
Internal	Yes
Product colour	Red
Certification	FCC, CE, TAA, REACH
Features
Chipset	Marvell - 88SA8052
Logical block addressing (LBA) support	48 bit
Data transfer rate (max)	0.133 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-25 - 80 °C
Operating relative humidity (H-H)	15 - 90%
Weight & dimensions
Width	20 mm
Depth	75.5 mm
Height	23 mm
Weight	29 g
Package width	175 mm
Package depth	145 mm
Package height	33 mm
Package weight	89 g
Packaging data
Manual	Yes
Package width	175 mm
Package depth	145 mm
Package height	33 mm
Package weight	89 g
Logistics data
Products per master (outer) case	60 pc(s)
Master (outer) case width	380 mm
Master (outer) case length	496 mm
Master (outer) case height	321 mm
Harmonized System (HS) code	84733020
Other features
Material	Plastic, Steel
Chipset	Marvell - 88SA8052
Packaging content
Manual	Yes
