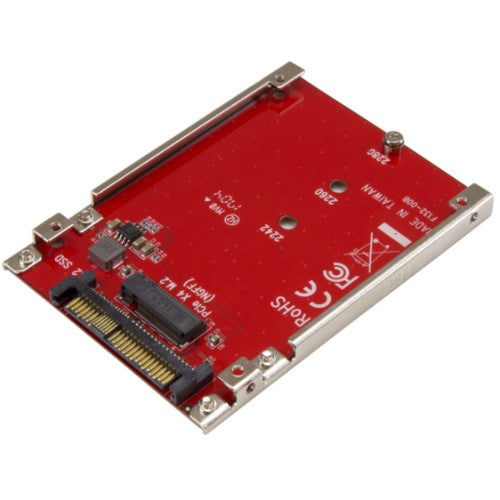

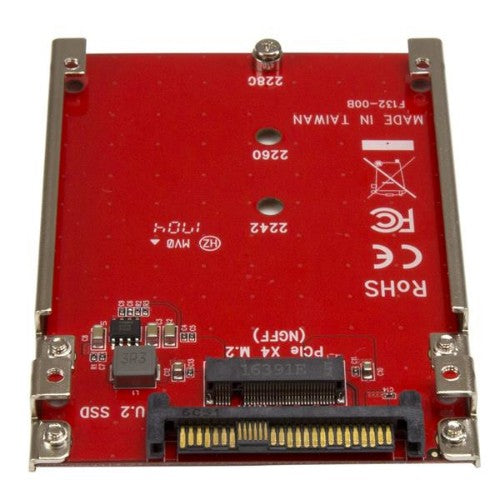

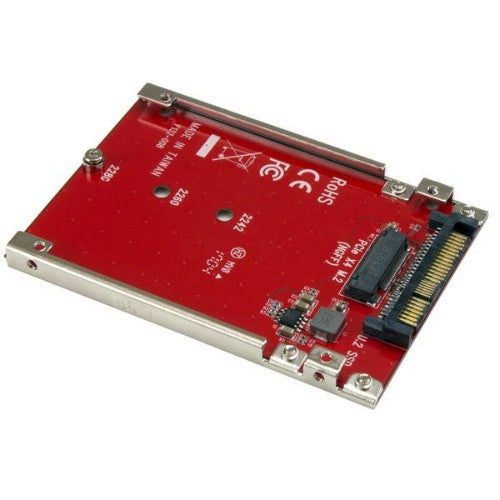

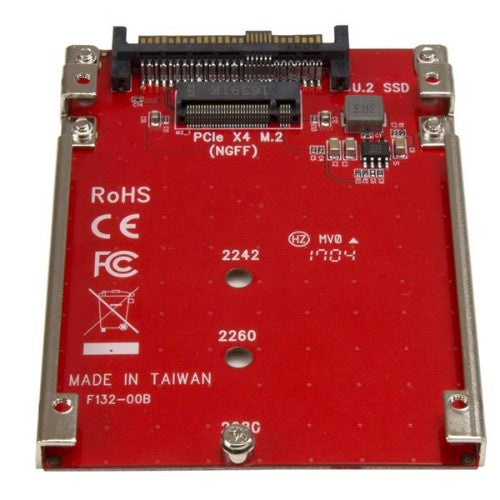

StarTech.com M.2 Drive to U.2 (SFF-8639) Host Adapter for M.2 PCIe NVMe SSDs

StarTech.com M.2 to U.2 Adapter - For M.2 PCIe NVMe SSDs - PCIe M.2 Drive to U.2 (SFF-8639) Host Adapter - M2 SSD Converter (U2M2E125)

Key Features

• Increase your system speed and performance cost-effectively, by adding an M.2 PCIe NVMe SSD to your PC or server

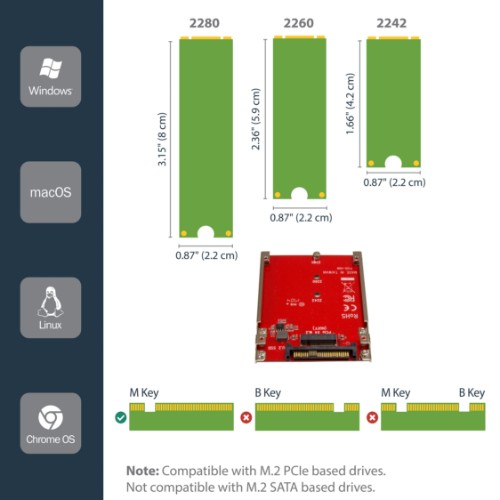

• Adapter supports one M.2 PCIe NVMe SSD (M-Key)
• U.2 (SFF-8639) host interface
• Fast and easy setup with native OS support
• Backward compatible with earlier versions of PCIe

Description

Add the fast performance of an M.2 NVMe SSD to your desktop computer or server by converting the drive through a U.2 (SFF-8639) compatible interface on your motherboard

This PCI Express M.2 to U.2 adapter makes it easy to install an M.2 PCIe NVMe SSD into your desktop PC or server, and connect to the drive through an available U.2 (SFF-8639) compatible interface on your motherboard.

Upgrade your system cost-effectively

The M.2 to U.2 adapter is ideal for IT professionals, system integrators and installers, and enthusiasts who are building or upgrading a server or desktop computer. It supports one M.2 PCIe NVMe SSD (M-Key), providing a cost-effective way to add M.2 NVMe performance to your computer or server through an available U.2 (SFF-8639) compatible interface on your motherboard.

Easy installation

The M.2 to U.2 adapter works with all desktop PCs and servers that have an available drive bay or a U.2 (SFF-8639) compatible host interface. The adapter card is OS independent, so there are no drivers or software required for installation.

The U2M2E125 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Increase your system speed and performance cost-effectively, by adding an M.2 PCIe NVMe SSD to your PC or server
- Adapter supports one M.2 PCIe NVMe SSD (M-Key)
- U.2 (SFF-8639) host interface

Specifications

Ports & interfaces
Internal	Yes
Output interface	M.2
Host interface	U.2
Technical details
Plug and Play	Yes
Compliance certificates	RoHS
Performance
Plug and Play	Yes
Product colour	Red
Harmonized System (HS) code	84733020
Certificates
Certification	CE, FCC, TAA, REACH
Colour
Product colour	Red
Design
Internal	Yes
Product colour	Red
Certification	CE, FCC, TAA, REACH
Features
Plug and Play	Yes
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	15 - 90%
Weight & dimensions
Width	70 mm
Depth	100 mm
Height	7 mm
Weight	36 g
Package width	145 mm
Package depth	175 mm
Package height	30 mm
Package weight	102 g
Packaging data
Package width	145 mm
Package depth	175 mm
Package height	30 mm
Package weight	102 g
Quick installation guide	Yes
Screws included	Yes
Logistics data
Harmonized System (HS) code	84733020

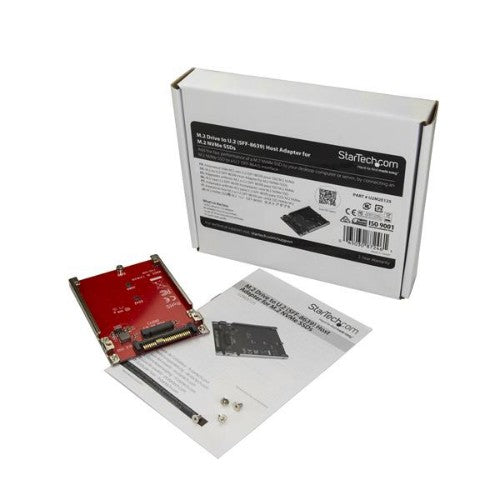

Packaging content
Quick installation guide	Yes
Screws included	Yes
