Synology

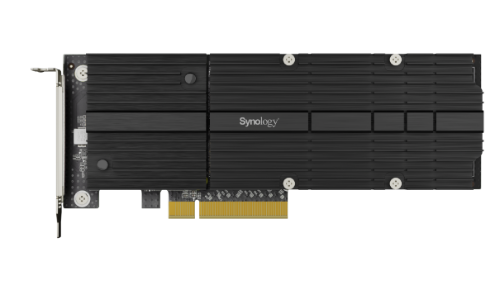

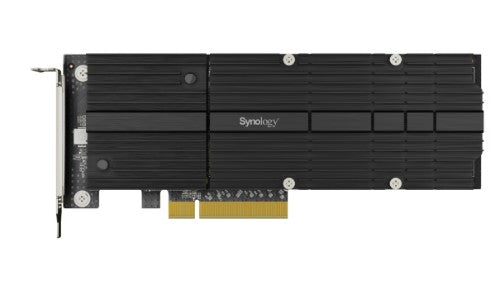

Synology M2D20 interface cards/adapter Internal PCIe

SKU M2D20
£167.98
£167.98
Excluding taxes
PCIe 3.0 x8, PCIe NVMe, 71.75 x 181.9 x 15.8 mm

Description

Boost storage performance for demanding workloads
Synology M2D20 is a M.2 NVMe SSD adapter card designed to supercharge your NAS I/O performance. The multi-queue capability of NVMe SSD greatly benefits latency-sensitive applications such as photo indexing, file search, and virtualization deployments.

- Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.
- Free up primary drive bays for data storage.
- Upgrade your existing storage infrastructure efficiently.

Specifications

Ports & interfaces
Internal Yes
Output interface PCIe
Host interface PCIe
NVMe Yes
Expansion card form factor Full-height / Low-profile
Expansion card standard PCIe 3.0
Performance
NVMe Yes
Harmonized System (HS) code 84733020
Design
Internal Yes
Features
Harmonized System (HS) code 84733020
NVMe Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 181.9 mm
Depth 15.8 mm
Height 71.8 mm
Logistics data
Harmonized System (HS) code 84733020
