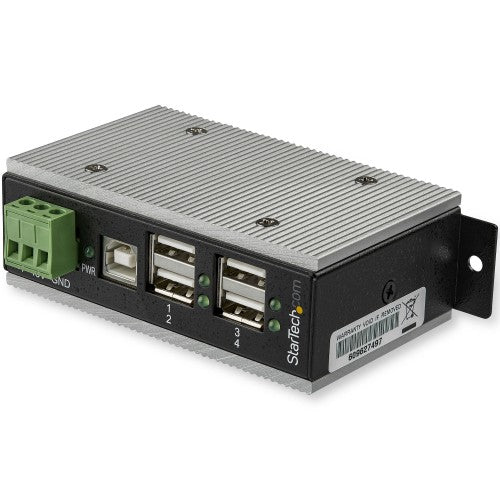

StarTech.com 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mountable - USB Expander Hub

StarTech.com 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mountable - USB Expander Hub (HB20A4AME)

Description

Extended Temperature| 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps

This TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for more extreme environments, the rugged hub also supports a wide operating temperature range (-40°C to 85°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect More USB Devices

Designed for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.

The HB20A4AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Host interface	USB 2.0 Type-B
Terminal block port	Yes
Hub interfaces	USB 2.0
USB 2.0 ports quantity	4
Ports quantity	4
Features
Surge protection	Yes
Plug and Play	Yes
LED indicators	Power
Product colour	Black
Certification	CE, FCC, TAA, RoHS, REACH
Data transfer rate	480 Mbit/s
Housing material	Metal
Host interface	USB 2.0 Type-B
Data transmission
Data transfer rate	480 Mbit/s
Power
Input current	2 A
Power consumption (typical)	14 W
Input voltage	7 - 48 V
Technical details
Plug and Play	Yes
Product colour	Black
Performance
Certification	CE, FCC, TAA, RoHS, REACH
Surge protection	Yes
Plug and Play	Yes
Data transfer rate	480 Mbit/s
Harmonized System (HS) code	84719000
Weight & dimensions
Weight	292 g
Width	55 mm
Depth	95 mm
Height	32 mm
Package width	170 mm
Package depth	240 mm
Package height	55 mm
Package weight	504 g
Packaging data
Package width	170 mm
Package depth	240 mm
Package height	55 mm
Package weight	504 g

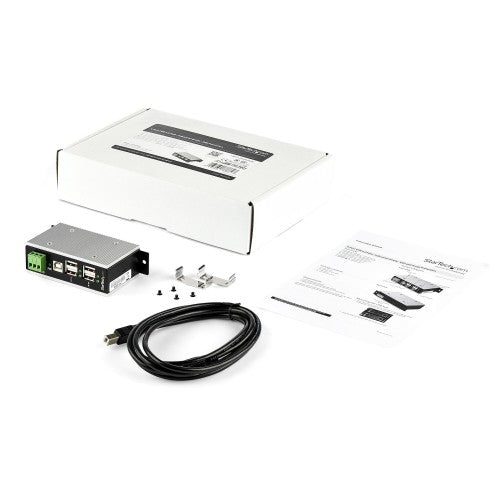

Packaging content
Manual	Yes
Cables included	USB
DIN rail kit included	Yes
Design
LED indicators	Power
Product colour	Black
Certification	CE, FCC, TAA, RoHS, REACH
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Certificates
Certification	CE, FCC, TAA, RoHS, REACH
Indication
LED indicators	Power
Logistics data
Master (outer) case width	440 mm
Master (outer) case length	520 mm
Master (outer) case height	335 mm
Products per master (outer) case	25 pc(s)
Harmonized System (HS) code	84719000
Other features
Chipset	Genesys Logic - GL852GT
