StarTech.com 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub - Din Rail, Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub

StarTech.com 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub - Din Rail, Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub (ST4200USBM)

Key Features

• Protects your connected devices with 8kV Air and 4kV Contact ESD protection
• Mount industrial USB 2.0 hub where required with built-in mounting brackets or included DIN rails

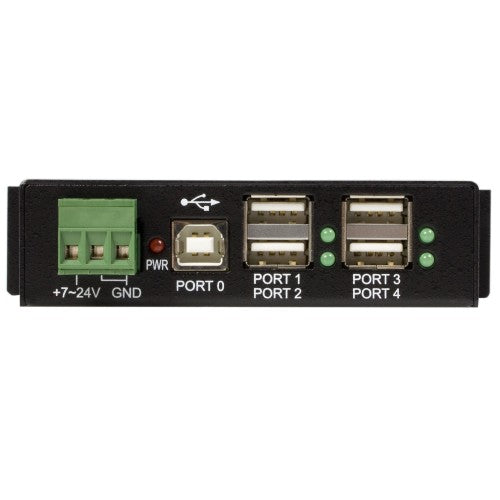

• Offers flexible, wide-range power inputs with a 7-24V DC terminal block
• Adds four USB 2.0 ports from a single USB connection

Description

Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | DIN Rail | 480 Mbps

This TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect More USB Devices

Designed for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.

Locate the Hub Where You Need It Most

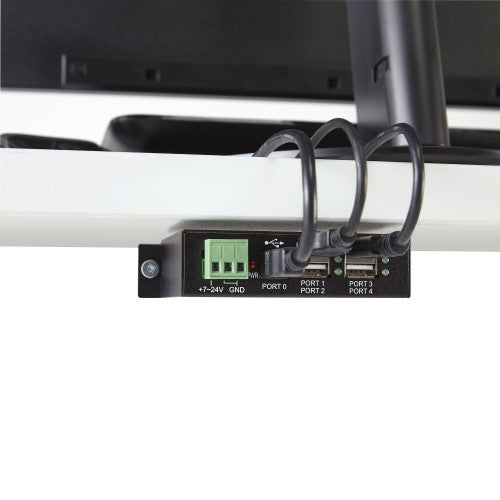

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.

The ST4200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Host interface	USB 2.0 Type-B
Terminal block port	Yes
Hub interfaces	USB 2.0
USB 2.0 ports quantity	4
DC-in jack	No
Card reader integrated	No
Ports quantity	4
Features
Plug and Play	Yes
LED indicators	Power
Product colour	Black
Certification	CE, FCC, TAA, RoHS
Data transfer rate	480 Mbit/s
Housing material	Steel
Host interface	USB 2.0 Type-B
Data transmission
Data transfer rate	480 Mbit/s
Power
Input voltage	7 - 24 V
Technical details
Plug and Play	Yes
Product colour	Black
Performance
Certification	CE, FCC, TAA, RoHS
Card reader integrated	No
Plug and Play	Yes
Data transfer rate	480 Mbit/s
Mean time between failures (MTBF)	193317 h
Harmonized System (HS) code	84719000
Storage
Card reader integrated	No
Weight & dimensions
Weight	207 g
Width	57.3 mm
Depth	114 mm
Height	26 mm
Package width	210 mm
Package depth	146 mm
Package height	40 mm
Package weight	400 g
Packaging data
Package width	210 mm
Package depth	146 mm
Package height	40 mm
Package weight	400 g

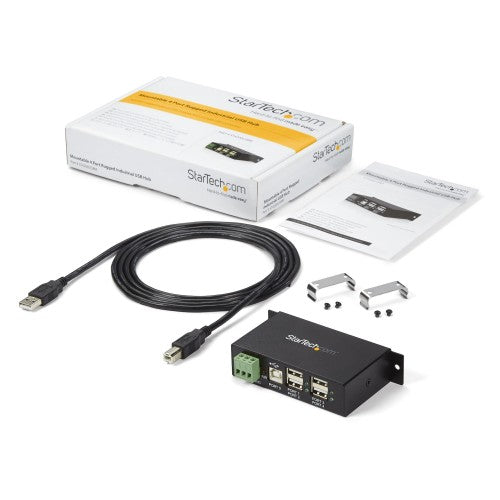

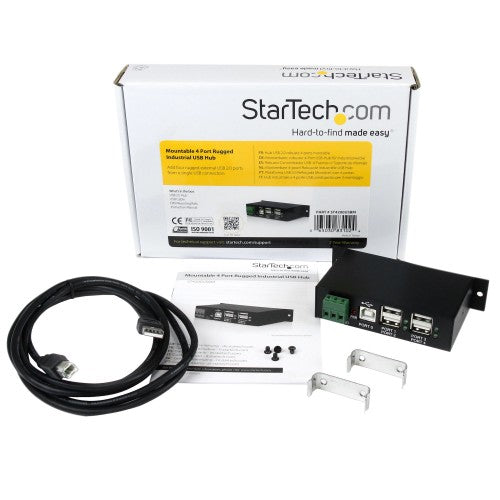

Packaging content
Manual	Yes
Cables included	USB
DIN rail kit included	Yes
Design
LED indicators	Power
Product colour	Black
Certification	CE, FCC, TAA, RoHS
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Certificates
Certification	CE, FCC, TAA, RoHS
Indication
LED indicators	Power
Logistics data
Master (outer) case width	447 mm
Master (outer) case length	527 mm
Master (outer) case height	339 mm
Products per master (outer) case	50 pc(s)
Harmonized System (HS) code	84719000
Other features
Chipset	Renesas/NEC - µPD720114
