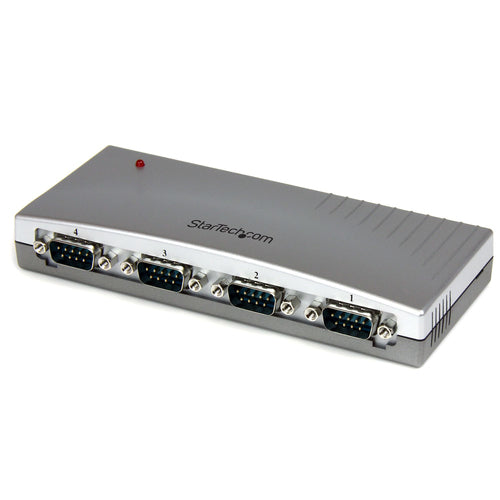

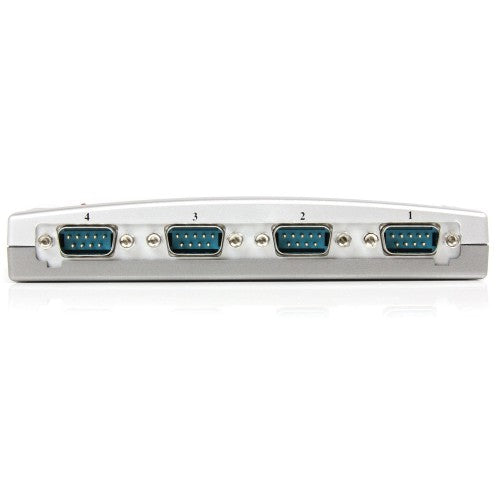

StarTech.com 4 Port USB to RS232 Serial DB9 Adapter Hub

StarTech.com USB to Serial Adapter Hub - 4 Port - Bus Powered - DB9 (9-pin) - USB Serial - FTDI USB to Serial Adapter

Description

Add four RS232 serial ports to any notebook or desktop computer using a single USB port

This 4 Port USB to RS232 Serial Hub lets you connect up to four RS232 serial devices to your Mac or PC laptop or desktop computer through a single USB port, as though the computer offered built-on DB9M serial connectors.

The RS232 Serial Hub is compactly designed to preserve valuable workspace, and is bus-powered to eliminate the need for an external power adapter.

A cost-effective solution that bridges the compatibility gap between modern USB-capable computers and legacy RS232 serial peripherals, this dependable USB/RS232 Serial Adapter hub is backed by StarTech.com's Lifetime Warranty.

The StarTech.com Advantage

Specifications

Ports & interfaces
Host interface	USB
RS-232 ports	4
Hub interfaces	Serial
DC-in jack	Yes
Card reader integrated	No
Ports quantity	4
Features
Plug and Play	Yes
Product colour	Silver
Certification	CE, FCC, RoHS
Housing material	Plastic
Host interface	USB
Power
Power consumption (max)	1.5 W
Power consumption (typical)	1 W
Technical details
Plug and Play	Yes
Product colour	Silver
Performance
Certification	CE, FCC, RoHS
Card reader integrated	No
Plug and Play	Yes
Baud rate	921.6 Kbit/s
Harmonized System (HS) code	84719000
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Other operating systems supported	Windows XP Embedded
Storage
Card reader integrated	No
Weight & dimensions
Weight	110 g
Width	66.5 mm
Depth	150 mm
Height	26 mm
Package width	150 mm
Package depth	220 mm
Package height	53 mm
Package weight	378 g
Packaging data
Package width	150 mm
Package depth	220 mm
Package height	53 mm
Package weight	378 g

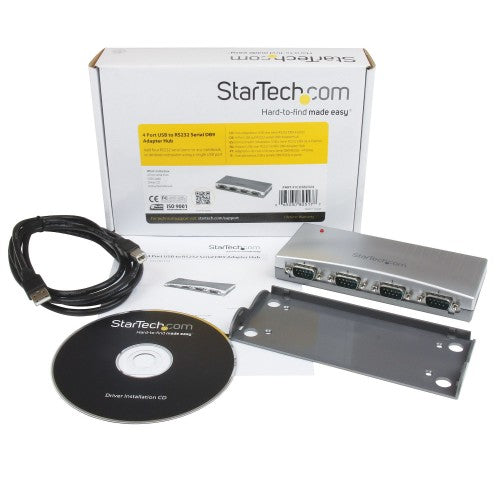

Packaging content
Manual	Yes
Cables included	USB
Drivers included	Yes
Design
Product colour	Silver
Certification	CE, FCC, RoHS
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Certificates
Certification	CE, FCC, RoHS
Logistics data
Harmonized System (HS) code	84719000
Other features
Chipset	FTDI - FT232RL
