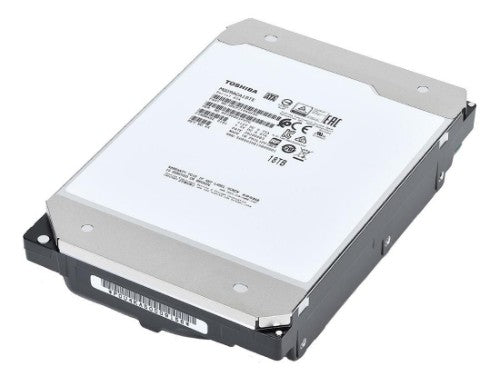

Toshiba MG09 internal hard drive 18 TB 7200 RPM 512 MB 3.5" SAS

18TB, SAS-3.0, 512e, 7200rpm, 512MiB, 268MiB/s

Key Features

• Conventional Magnetic Recording (CMR) for broad compatibility
• Toshiba Flux Control Microwave-assisted Magnetic Recording (FC-MAMR) Technology
• Industry-leading 9-disk helium-sealed design for superior storage density
• Industry Standard 3.5-inch 26.1mm height Form Factor
• 7200rpm Performance
• Choice of SATA 6.0Gbit/s and 12.0Gbit/s SAS Interfaces
• Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
• 550 Total TB Transferred per Year Workload Rating
• 512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
• Sustained transfer rate and power efficiency improvements vs. prior MG Series generations
• Sanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option model

Description

The MG09 Series features Toshiba’s third-generation, 9-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2TB per disk, achieving a total capacity of 18TB.The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.
The massive 18TB CMR capacity is delivered using Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. These advances help the MG09 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with either a SATA 6.0Gbit/s or a 12.0Gbit/s SAS interface, the MG09 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems.

Specifications

Hard drive
Component for	NAS
HDD sustained transfer rate	268 MiB/s
HDD interface transfer rate	12 Gbit/s
Workload rate limit	550 TB/year
Start/stop cycles	600000
Hot-swap	No
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	18 TB
Features
Type	HDD
Component for	NAS
HDD sustained transfer rate	268 MiB/s
HDD interface transfer rate	12 Gbit/s
Workload rate limit	550 TB/year
Interface	SAS
Start/stop cycles	600000
Hot-swap	No
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	18 TB
Storage drive buffer size	512 MB
24/7 operation	Yes
Noise level (idle)	20 dB
Mean time to failure (MTTF)	2500000 h
Power
Power consumption (typical)	8.74 W
Power consumption (idle)	4.54 W
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-305 - 3048 m
Non-operating altitude	-305 - 12192 m
Operating vibration	0.75 G
Operating shock	70 G
Non-operating vibration	3 G
Non-operating shock	250 G
Technical details
Quantity per pack	1 pc(s)
Harmonized System (HS) code	84717050
Interface	SAS
Hot-swap	No
Weight & dimensions
Width	101.8 mm
Weight	720 g
Height	26.1 mm
Depth	147 mm
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84717050
Other features
Interface	SAS
