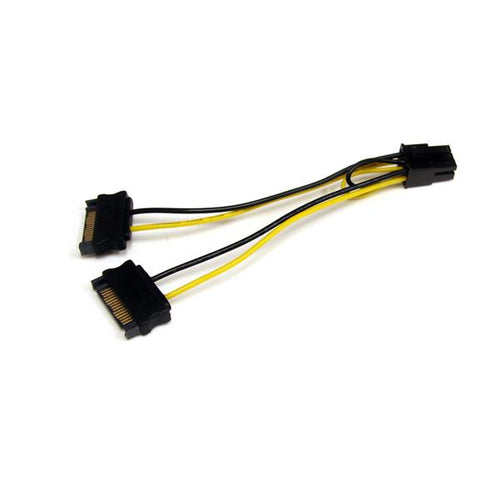

StarTech.com 6in SATA Power to 6 Pin PCI Express Video Card Power Cable Adapter

StarTech.com 6in SATA Power to 6 Pin PCI Express Video Card Power Cable Adapter - SATA to 6 pin PCIe power (SATPCIEXADAP)

Key Features

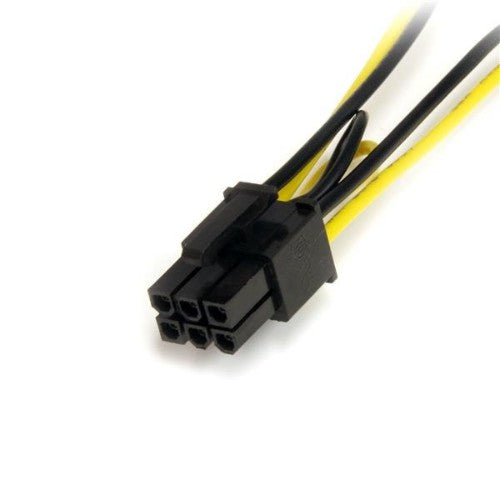

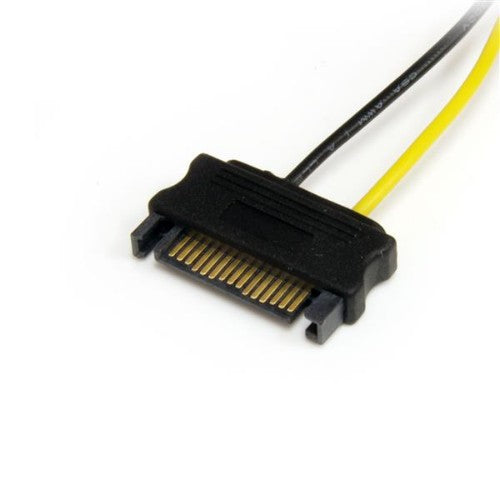

• SATA PCI EXPRESS POWER ADAPTER: 1x 6-pin PCI Express (male) connector to 2x 15-pin SATA (male) connectors; Connect a PCIe Video Card to a Power Supply that is not equipped with a PCIe connector
• SPECS: Cable length: 6.0in (15.2cm); Wire Gauge: 18AWG; Connector Plating: Gold; Jacket Material: PVC; Color: Black; Connector(s): 2x SATA Power (15 pin), 1x PCI Express Power (6 pin, v 1.x)
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this SATA to PCI Express video card power adapter cable is backed for life, including free lifetime 24/5 multi-lingual technical assistance

Description

Convert two 15-pin SATA power supply connectors to a 6-pin PCI Express video card power connector

The SATPCIEXADAP SATA to PCI Express Video Card Power Adapter Cable features a 6-pin PCI Express (male) power connector as well as two 15-pin SATA (male) power connectors, providing a cost-effective way to connect a PCIe video card to Serial ATA power connectors provided by the computer power supply, and eliminating the need to upgrade the power supply for the sake of video card compatibility.

NOTE: When powering a graphics card, we recommend using two separate power supply cables, each with a SATA power connector.

The StarTech.com Advantage

Specifications

Features
Connector 1	SATA 15-pin
Connector 2	PCI-E (6-pin)
Cable length	0.15 m
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Product colour	Black, Yellow
Certification	CE, REACH
Connector 2 gender	Male
Connector 1 gender	Male
Weight & dimensions
Width	31.2 mm
Depth	152.4 mm
Height	20 mm
Weight	15 g
Package width	128 mm
Package height	220 mm
Package weight	23 g
Packaging data
Package width	128 mm
Package height	220 mm
Package weight	23 g
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	84733080
Other features
Jacket material	Polyvinyl chloride (PVC)
