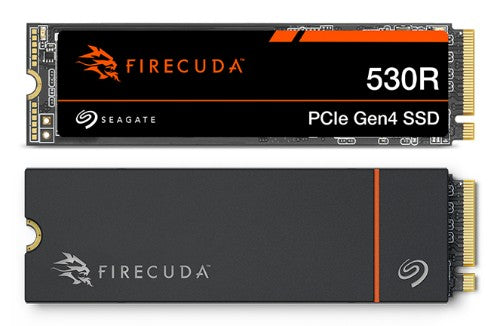

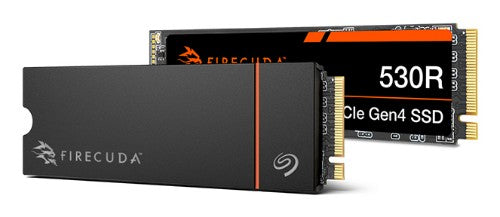

Seagate FireCuda 530R 2 TB M.2 PCI Express 4.0 NVMe 3D TLC

2TB, M.2, PCIe Gen4 ×4 NVMe 1.4, 3D TLC

Key Features

• COOL COMFORT: Built-in Heatsink minimizes thermal throttling
• PEAK PERFORMANCE: Ultra-fast PCIe Gen4 SSD speeds for accelerated gaming and content creation
• EASY GAMING: Supports Microsoft™ DirectStorage technology for faster load times
• TOUGH STUFF: Extremely durable, with endurance of up to 5,050TBW
• ON THE INSIDE: Built with leading edge components in a slim M.2 2280 form factor

Description

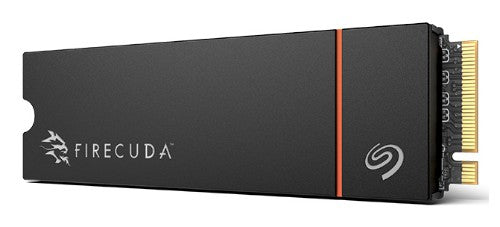

FireCuda® 530R with heatsink PCIe Gen4 NVMe SSD delivers relentless performance for gamers, creators, and professionals who demand the fastest speeds and maximum endurance. Powered by PCIe Gen4 NVMe technology, it reaches up to 7,400 MB/s for lightning-fast load times and responsive multitasking. Engineered with a pre-installed, low-profile aluminum heatsink co-developed with EKWB, it allows peak performance under heavy workloads by minimizing thermal throttling. With 1 DWPD durability, advanced data recovery services, and capacities up to 4TB, the FireCuda 530R M.2 SSD is built to handle the toughest environments while keeping your system cool, efficient, and ready for anything.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	2 TB
Memory type	3D TLC
Performance
Windows operating systems supported	Windows 10
Linux operating systems supported	Yes
Interface	PCI Express 4.0
Component for	PC
NVMe	Yes
NVMe version	1.4
TBW rating	5050
PCI Express interface data lanes	x4
SSD capacity	2 TB
S.M.A.R.T. support	Yes
Read speed	7400 MB/s
TRIM support	Yes
Write speed	6900 MB/s
Memory type	3D TLC
Random write (4KB)	1300000 IOPS
Random read (4KB)	1300000 IOPS
Mean time between failures (MTBF)	1800000 h
Data transmission
Read speed	7400 MB/s
Write speed	6900 MB/s
Random write (4KB)	1300000 IOPS
Random read (4KB)	1300000 IOPS
Endurance
Mean time between failures (MTBF)	1800000 h
Features
Interface	PCI Express 4.0
Component for	PC
NVMe	Yes
NVMe version	1.4
TBW rating	5050
PCI Express interface data lanes	x4
SSD capacity	2 TB
Windows operating systems supported	Windows 10
S.M.A.R.T. support	Yes
Read speed	7400 MB/s
TRIM support	Yes
Write speed	6900 MB/s
Linux operating systems supported	Yes
Memory type	3D TLC
Random write (4KB)	1300000 IOPS
Random read (4KB)	1300000 IOPS
Mean time between failures (MTBF)	1800000 h
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Harmonized System (HS) code	84717070
Power
Power consumption (average)	8.6 W
Design
Component for	PC
SSD form factor	M.2
Weight & dimensions
Width	109 mm
Weight	120 g
Height	24 mm
Depth	155 mm
System requirements
Windows operating systems supported	Windows 10
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	40 - 85 °C
Non-operating shock	1500 G
Technical details
Interface	PCI Express 4.0
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
TRIM support	Yes
Storage temperature (T-T)	40 - 85 °C
Non-operating shock	1500 G
SSD form factor	M.2
Warranty period	5 year(s)
Compliance certificates	RoHS
Doesn't contain	Halogen
Software
Windows operating systems supported	Windows 10
Linux operating systems supported	Yes
Other features
Warranty period	5 year(s)
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	84717070
