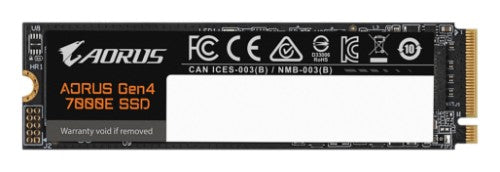

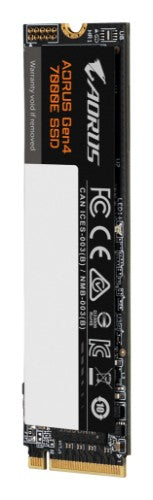

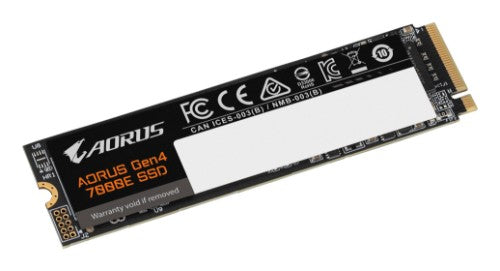

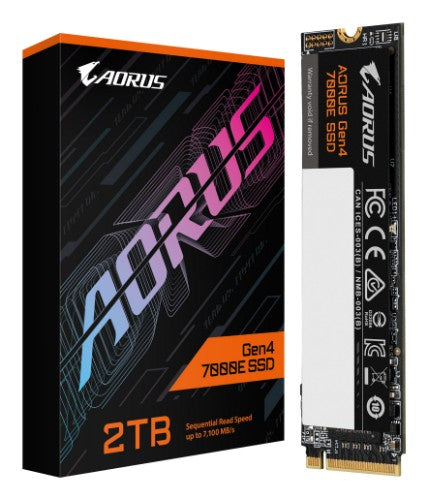

GIGABYTE AORUS Gen4 7000E 2 TB M.2 PCI Express 4.0 NVMe 3D TLC NAND

2 TB, M.2, PCI Express 4.0 x4, NVMe 1.4, 3D TLC NAND Flash

Key Features

• Form Factor: M.2 2280
• Interface: PCI-Express 4.0 x4, NVMe 1.4
• Total Capacity: AG470E2TB : 2000GB
• Sequential Read Speed : up to 7,100 MB/s
• Sequential Write speed : up to 6,500 MB/s
• HMB (Host Memory Buffer) supported
• TRIM & S.M.A.R.T supported
• Energy-efficient

Description

Level up your gaming experience
Built with a high-quality controller and 3D TLC NAND flash, AORUS Gen4 7000E SSD delivers up to 7,100MB/s sequential read and 6,500MB/s sequential write performance. By utilizing Host Memory Buffer technology, the SSD controller can access the host DRAM without performance loss. As for features, AORUS Gen4 7000E SSD supports TRIM, SMART, and Over-Provision technologies to improve the reliability and durability of SSDs. AORUS Gen4 7000E SSD allows users to enjoy a smoother and faster gaming experience with more power efficiency.

NAND Flash Selected for High Performance
Selected High Speed 3D TLC NAND Flash (2400+ MT/s)
The ultra high speed - 2400+ MT/s throughput - 3D TLC NAND, are selected by critical criteria, combined with the AORUS Gen4 7000E SSD's firmware optimizations, lead to superior performance.

Improve efficiency & responsiveness
Equipped with a robust combination of controller and new generation 3D TLC NAND, AORUS Gen4 7000E SSD delivers blazing speeds: up to 7,100 MB/s for sequential read,and up to 6,500MB/s sequential write. Sequential Read performance of PCle 4.0 SSDs is up to 50% faster than PCle 3.0 SSDs. AORUS Gen4 7000E SSD puts you in thecomputing fast lane.

Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.

GIGABYTE CONTROL CENTER (GCC)
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products

SSD Tool Box
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	2 TB
Memory type	3D TLC NAND
Data transmission
Read speed	7100 MB/s
Write speed	6500 MB/s
Endurance
Mean time between failures (MTBF)	1600000 h
Features
Interface	PCI Express 4.0
Component for	PC
NVMe	Yes
NVMe version	1.4
TBW rating	1400
PCI Express interface data lanes	x4
SSD capacity	2 TB
S.M.A.R.T. support	Yes
Read speed	7100 MB/s
TRIM support	Yes
Write speed	6500 MB/s
Memory type	3D TLC NAND
Mean time between failures (MTBF)	1600000 h
Hardware encryption	No
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Performance
Interface	PCI Express 4.0
Component for	PC
NVMe	Yes
NVMe version	1.4
TBW rating	1400
PCI Express interface data lanes	x4
SSD capacity	2 TB
S.M.A.R.T. support	Yes
Read speed	7100 MB/s
TRIM support	Yes
Write speed	6500 MB/s
Memory type	3D TLC NAND
Mean time between failures (MTBF)	1600000 h
Hardware encryption	No
Design
Component for	PC
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Height	2.3 mm
Depth	80 mm
Package type	Box
Packaging data
Manual	Yes
Package type	Box
Technical details
Interface	PCI Express 4.0
S.M.A.R.T. support	Yes
TRIM support	Yes
Hardware encryption	No
SSD form factor	M.2
Packaging content
Manual	Yes
