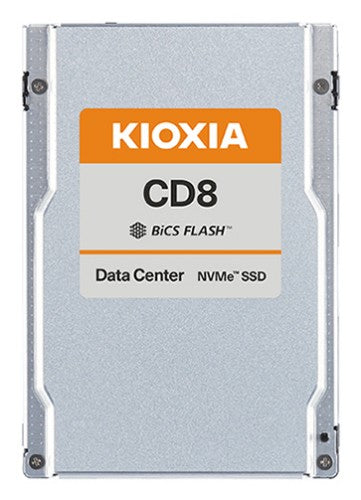

Kioxia CD8-R 3.84 TB 2.5" PCI Express 4.0 NVMe BiCS FLASH TLC

2,5", 3840 GB, PCIe 4.0, NVMe 1.4, BiCS FLASH TLC, 7200 MB/s read, 3800 MB/s write

Key Features

• PCIe® 4.0, NVMe™ 1.4 specification compliant Help Modal Window
• Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
• Form factor: 2.5-inch, 15mm height Help Modal Window
• Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC Help Modal Window
• Single-port design, optimized for data center class workloads
• Consistent performance and reliability for demanding 24x7 environments
• Designed for high-density storage deployments
• Power loss protection (PLP) and end-to-end data correction
• Security options: SIE, SED

Description

Data Center NVMe Read-intensive SSD
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	3.84 TB
Memory type	BiCS FLASH TLC
Data transmission
Read speed	7200 MB/s
Write speed	3800 MB/s
Random write (4KB)	195000 IOPS
Random read (4KB)	1250000 IOPS
Endurance
Mean time between failures (MTBF)	2500000 h
Features
Interface	PCI Express 4.0
Component for	Server/workstation
NVMe	Yes
NVMe version	1.4
PCI Express interface data lanes	x4
SSD capacity	3.84 TB
Read speed	7200 MB/s
Write speed	3800 MB/s
Memory type	BiCS FLASH TLC
Random write (4KB)	195000 IOPS
Random read (4KB)	1250000 IOPS
Mean time between failures (MTBF)	2500000 h
SSD form factor	2.5"
Power
Power consumption (max)	14 W
Operating voltage	12 V
Performance
Interface	PCI Express 4.0
Component for	Server/workstation
NVMe	Yes
NVMe version	1.4
PCI Express interface data lanes	x4
SSD capacity	3.84 TB
Read speed	7200 MB/s
Write speed	3800 MB/s
Memory type	BiCS FLASH TLC
Random write (4KB)	195000 IOPS
Random read (4KB)	1250000 IOPS
Mean time between failures (MTBF)	2500000 h
Design
Component for	Server/workstation
SSD form factor	2.5"
Weight & dimensions
Width	69.8 mm
Weight	130 g
Height	15 mm
Depth	100.5 mm
Operational conditions
Operating temperature (T-T)	0 - 74 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	2.17 G
Minimum operating temperature	0 °C
Maximum operating temperature	74 °C
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 74 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	2.17 G
SSD form factor	2.5"
Warranty period	5 year(s)
Other features
Warranty period	5 year(s)
