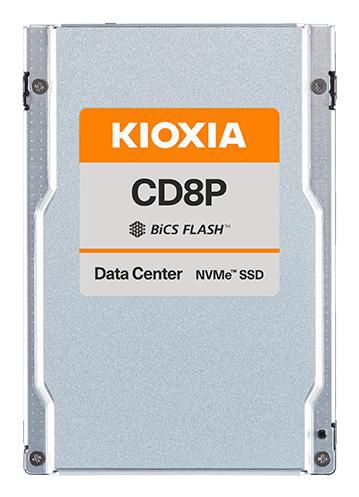

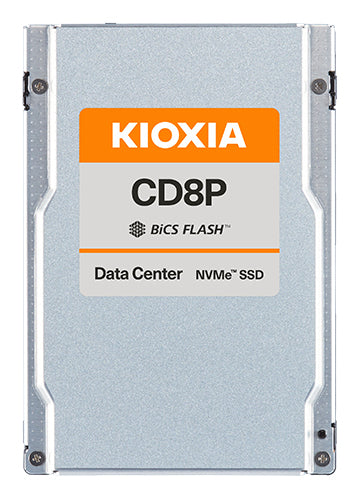

Kioxia CD8P-R 30.7 TB 2.5" PCI Express 5.0 NVMe BiCS FLASH TLC

30700GB, 2,5", PCIe 5.0, NVMe 2.0, BiCS FLASH TLC, Read 10000 MB/s, Write 4900 MB/s, Silver, 130g

Key Features

• PCIe® 5.0, NVMe™ 2.0 specification compliant
• Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
• Form factor: 2.5-inch, 15 mm thickness
• Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ generation 5 TLC flash memory
• Single-port design, optimized for data center class workloads
• Consistent performance and reliability for demanding 24x7 environments
• Designed for high-density storage deployments
• Power loss protection (PLP) and end-to-end data correction

Description

Data Center NVMe™ Read Intensive SSD
KIOXIA CD8P-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 5.0 (32 GT/s x4) interface, the CD8P-R Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 200K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe® 4.0 SSDs (KIOXIA CD8-R Series).

Featuring KIOXIA BiCS FLASH™ generation 5 TLC flash memory, CD8P-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 30.72 TB, making them well-suited for hyperscale data center applications.

Specifications

Hard drive
SSD capacity	30.7 TB
Memory type	BiCS FLASH TLC
Data transmission
Random write (4KB)	150 IOPS
Random read (4KB)	1600 IOPS
Endurance
Mean time between failures (MTBF)	2500000 h
Features
Interface	PCI Express 5.0
Component for	Server/workstation
NVMe	Yes
NVMe version	2.0
End-to-End Data Protection	Yes
SSD capacity	30.7 TB
Protection features	Shock resistant, Vibration proof
Memory type	BiCS FLASH TLC
Random write (4KB)	150 IOPS
Random read (4KB)	1600 IOPS
Mean time between failures (MTBF)	2500000 h
SSD form factor	2.5"
H/W PLP function	Yes
Target workload	Read Intensive (RI)
Drive writes per day (DWPD)	1
Power
Power consumption (max)	24 W
Power consumption (standby)	5.5 W
Operating voltage	12 V
Performance
Interface	PCI Express 5.0
Component for	Server/workstation
NVMe	Yes
NVMe version	2.0
End-to-End Data Protection	Yes
SSD capacity	30.7 TB
Memory type	BiCS FLASH TLC
Random write (4KB)	150 IOPS
Random read (4KB)	1600 IOPS
Mean time between failures (MTBF)	2500000 h
Design
Component for	Server/workstation
Protection features	Shock resistant, Vibration proof
Product colour	Silver
SSD form factor	2.5"
Weight & dimensions
Width	69.8 mm
Weight	130 g
Height	100.5 mm
Depth	15 mm
Operational conditions
Operating temperature (T-T)	0 - 72 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	2.17 G
Technical details
Interface	PCI Express 5.0
Operating temperature (T-T)	0 - 72 °C
Storage temperature (T-T)	-40 - 85 °C
Protection features	Shock resistant, Vibration proof
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	2.17 G
Product colour	Silver
SSD form factor	2.5"
Warranty period	5 year(s)
Other features
Product colour	Silver
Warranty period	5 year(s)
