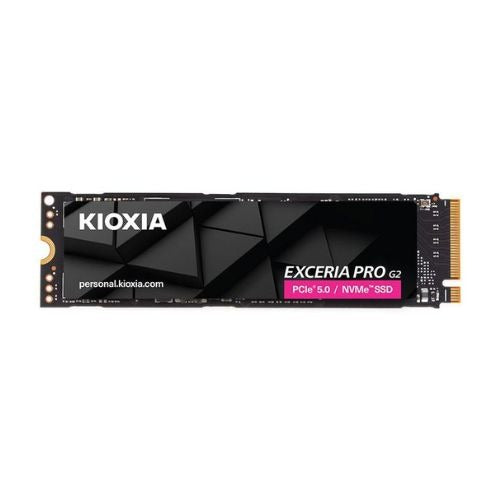

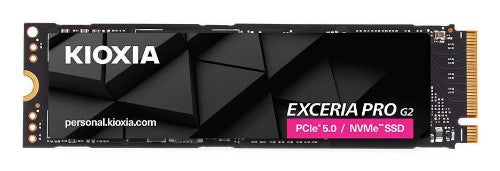

Kioxia Exceria PRO G2 2 TB M.2 PCI Express 5.0 NVMe BiCS FLASH TLC

SSD M.2, 2280, 2TB, TLC, NVMe PCIe Gen 5.0x4

Key Features

• BiCS FLASH™
• NVMe™ 2.0d Technology
• M.2 2280 Form Factor
• PCIe® Gen5 x4
• SSD Utility Management Software

Description

Unleash AI

The PCI Express® 5.0 compliant EXCERIA PRO G2 SSD Series provides the performance today’s creative environments need. With up to 14,900 MB/s of sequential read speed*1 and up to 13,700 MB/s sequential write speed*1, this series will take AI generation and CG production applications, as well as high-performance gaming, to the next level.

Power Efficient Performance

The EXCERIA PRO G2 SSD series delivers better performance without excessive energy or cooling requirements. Designed with efficiency in mind, EXCERIA PRO G2 SSDs use less power, reducing the heat generated in your system. At max sequential read speed, these SSDs deliver up to 110% more power efficiency over the previous generation.*

* These values are the read out speed per power consumption obtained in a specific test environment at Kioxia Corporation. Power efficiency is the useful output which is measured in tasks per watt.

Beat the Heat

EXCERIA PRO G2 SSD series feature innovative product labels that enhance heat dissipation for advanced performance stability during heavy workloads. Don’t let excessive heat ruin your computing experience.

Cutting-Edge 3D Flash Memory

Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting-edge storage experience.

SSD Utility Management Software

The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	2 TB
Memory type	BiCS FLASH TLC
Data transmission
Read speed	14900 MB/s
Write speed	13400 MB/s
Random write (4KB)	1950000 IOPS
Random read (4KB)	2250000 IOPS
Endurance
Mean time between failures (MTBF)	1500000 h
Features
Interface	PCI Express 5.0
Component for	PC/Laptop
SSD usage tag	Consumer
NVMe	Yes
TBW rating	1200
PCI Express interface data lanes	x4
SSD capacity	2 TB
Read speed	14900 MB/s
TRIM support	Yes
Write speed	13400 MB/s
Memory type	BiCS FLASH TLC
Random write (4KB)	1950000 IOPS
Random read (4KB)	2250000 IOPS
Mean time between failures (MTBF)	1500000 h
Hardware encryption	No
SSD form factor	M.2
JEDEC standard	Yes
M.2 SSD size	2280 (22 x 80 mm)
Power
Power consumption (max)	8.4 W
Operating voltage	3.3 V
Performance
Interface	PCI Express 5.0
Component for	PC/Laptop
SSD usage tag	Consumer
NVMe	Yes
TBW rating	1200
PCI Express interface data lanes	x4
SSD capacity	2 TB
Read speed	14900 MB/s
TRIM support	Yes
Write speed	13400 MB/s
Memory type	BiCS FLASH TLC
Random write (4KB)	1950000 IOPS
Random read (4KB)	2250000 IOPS
Mean time between failures (MTBF)	1500000 h
Hardware encryption	No
Design
Component for	PC/Laptop
SSD form factor	M.2
Weight & dimensions
Width	22.1 mm
Weight	7.3 g
Height	2.38 mm
Depth	80.2 mm
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-40 - 50 °C
Operating shock	1000 G
Operating vibration	20 G
Technical details
Interface	PCI Express 5.0
Operating temperature (T-T)	0 - 85 °C
TRIM support	Yes
Storage temperature (T-T)	-40 - 50 °C
Operating shock	1000 G
Operating vibration	20 G
Hardware encryption	No
SSD form factor	M.2
