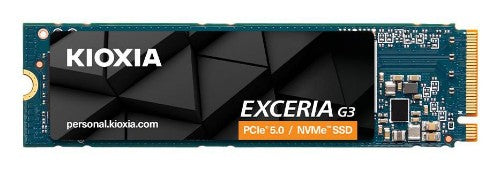

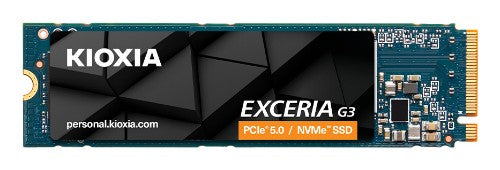

Kioxia Exceria G3 2 TB M.2 PCI Express 5.0 NVMe QLC

SSD M.2, 2280, 2TB, QLC NAND, NVMe PCIe Gen 5.0x4

Key Features

• BiCS FLASH™
• NVMe™ 2.0c Technology
• M.2 2280 Form Factor
• PCIe® Gen5 x4
• SSD Utility Management Software

Description

Take your first step into PCIe® 5.0 Performance. The KIOXIA EXCERIA G3 SSD Series, an entry-level model supporting PCIe® 5.0, takes performance to the next level with up to 10,000 MB/s of sequential read speed*1, not only accelerating everyday PC tasks, but also supporting AI applications and helping build a comfortable gaming environment. Leveraging BiCS FLASH™ 3D flash memory, this updated SSD series now offers up to 2TB of capacity in a M.2 2280 form factor suitable for both desktops and notebooks.

First Step into PCIe® 5.0 Performance

Featuring the latest and greatest PCIe® 5.0 interface, the EXCERIA G3 SSD series delivers excellent transfer speeds of up to 10,000 MB/s for sequential reads and 9,600 MB/s for sequential writes. Whether you are loading the latest game or editing the video, this new series is the ideal choice for anyone looking to experience PCIe® 5.0 performance.

Advanced Heat Dissipation

EXCERIA G3 SSDs feature innovative product labels to enhance heat dissipation for advanced performance stability.

NVMe™ Technology

Utilizing the NVMe™ 2.0c technology, EXCERIA G3 SSDs reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Cutting-Edge 3D Flash Memory

Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting-edge storage experience.

SSD Utility Management Software

The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	2 TB
Memory type	QLC
Data transmission
Read speed	10000 MB/s
Write speed	9600 MB/s
Random write (4KB)	1450000 IOPS
Random read (4KB)	1600000 IOPS
Endurance
Mean time between failures (MTBF)	1500000 h
Features
Interface	PCI Express 5.0
Component for	PC/Laptop
SSD usage tag	Consumer
NVMe	Yes
NVMe version	2.0d
TBW rating	1200
PCI Express interface data lanes	x4
SSD capacity	2 TB
Read speed	10000 MB/s
TRIM support	Yes
Write speed	9600 MB/s
Memory type	QLC
Random write (4KB)	1450000 IOPS
Random read (4KB)	1600000 IOPS
Mean time between failures (MTBF)	1500000 h
Hardware encryption	No
SSD form factor	M.2
JEDEC standard	Yes
M.2 SSD size	2280 (22 x 80 mm)
Power
Power consumption (max)	6.4 W
Operating voltage	3.3 V
Performance
Interface	PCI Express 5.0
Component for	PC/Laptop
SSD usage tag	Consumer
NVMe	Yes
NVMe version	2.0d
TBW rating	1200
PCI Express interface data lanes	x4
SSD capacity	2 TB
Read speed	10000 MB/s
TRIM support	Yes
Write speed	9600 MB/s
Memory type	QLC
Random write (4KB)	1450000 IOPS
Random read (4KB)	1600000 IOPS
Mean time between failures (MTBF)	1500000 h
Hardware encryption	No
Design
Component for	PC/Laptop
SSD form factor	M.2
Weight & dimensions
Width	22.1 mm
Weight	5.8 g
Height	2.38 mm
Depth	80.2 mm
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1000 G
Operating vibration	20 G
Technical details
Interface	PCI Express 5.0
Operating temperature (T-T)	0 - 85 °C
TRIM support	Yes
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1000 G
Operating vibration	20 G
Hardware encryption	No
SSD form factor	M.2
