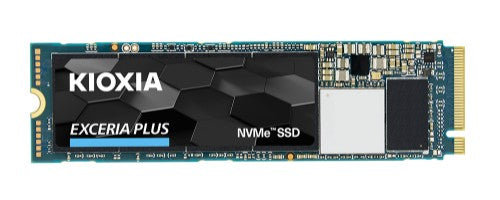

Kioxia EXCERIA PLUS 2 TB M.2 PCI Express 3.1a NVMe TLC

BiCS FLASH, NVMe 1.3c, M.2 2280, Factor PCIe Gen3 x4

Description

Your high-performance gaming system needs high-performance storage. KIOXIA EXCERIA PLUS SSD series is built to deliver enthusiast-class PCIe® performance thanks to a newly designed 8-channel controller that brings out the full potential of its BiCS FLASH™ 3D flash memory. This new enthusiast-class SSD series offers up to 2TB of capacity in a M.2 2280 form factor suitable for both desktops and mobile systems.

Game-changing Storage
Don’t let your storage be outclassed. The KIOXIA EXCERIA PLUS SSD series offer high performance storage for enthusiasts and hardcore gamers that feel held back by commodity storage hardware. With 3,400 MB/s sequential read speed(1) available to you, your system won’t be deprived of the storage bandwidth it needs to excel.

Game On!
Why keep using an interface that was designed for hard drives? Utilizing the latest NVMe™ 1.3c technology, the EXCERIA PLUS SSD series reduces latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Small and Mighty
Featuring a thin and light M.2 2280 form factor, the EXCERIA PLUS SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker system.

Cutting Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	2 TB
Memory type	TLC
Data transmission
Read speed	3400 MB/s
Write speed	3200 MB/s
Random write (4KB)	620000 IOPS
Random read (4KB)	680000 IOPS
Endurance
Mean time between failures (MTBF)	1500000 h
Features
Interface	PCI Express 3.1a
Component for	Laptop
NVMe	Yes
NVMe version	1.3c
TBW rating	800
PCI Express interface data lanes	x4
SSD capacity	2 TB
Read speed	3400 MB/s
TRIM support	Yes
Write speed	3200 MB/s
Memory type	TLC
Random write (4KB)	620000 IOPS
Random read (4KB)	680000 IOPS
Mean time between failures (MTBF)	1500000 h
SSD form factor	M.2
Harmonized System (HS) code	84717070
Power
Power consumption (average)	7.6 W
Operating voltage	3.3 V
Performance
Interface	PCI Express 3.1a
Component for	Laptop
NVMe	Yes
NVMe version	1.3c
TBW rating	800
PCI Express interface data lanes	x4
SSD capacity	2 TB
Read speed	3400 MB/s
TRIM support	Yes
Write speed	3200 MB/s
Memory type	TLC
Random write (4KB)	620000 IOPS
Random read (4KB)	680000 IOPS
Mean time between failures (MTBF)	1500000 h
Design
Component for	Laptop
SSD form factor	M.2
Weight & dimensions
Width	22.1 mm
Weight	10 g
Height	3.73 mm
Depth	80.2 mm
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1000 G
Operating vibration	20 G
Technical details
Interface	PCI Express 3.1a
Operating temperature (T-T)	0 - 85 °C
TRIM support	Yes
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1000 G
Operating vibration	20 G
SSD form factor	M.2
Logistics data
Harmonized System (HS) code	84717070
