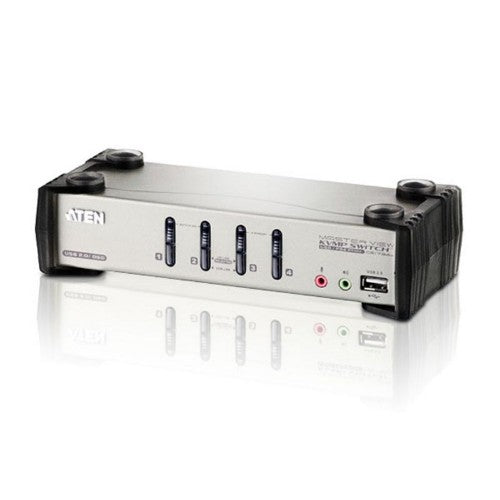

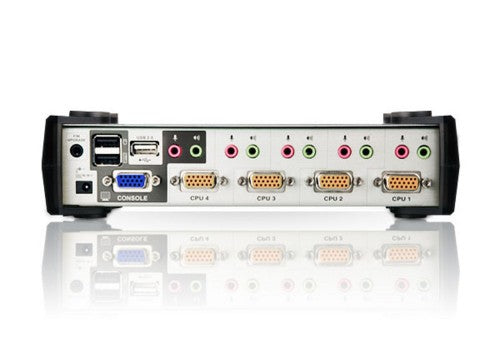

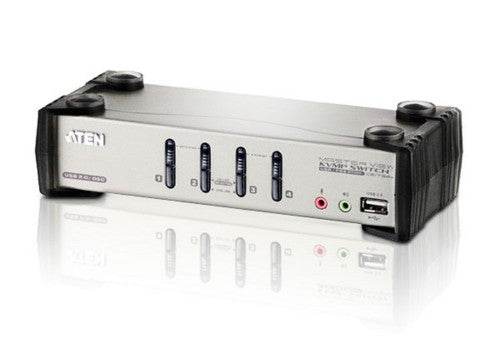

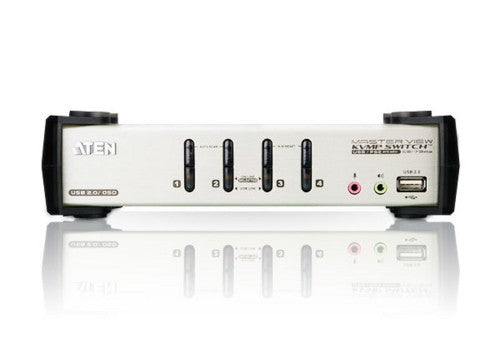

ATEN CS1734B KVM switch Rack mounting Black, Grey

4-Port USB - PS/2 VGA KVM Switch with Audio & USB 2.0 Hub (KVM Cables included)

Description

Features

- 4-port KVM switch with USB 2.0 support and 2.1 surround sound audio
- One console controls four computers and two additional USB devices
- 2-port USB 2.0 hub built in
- USB 2.0 compliant
- Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
- Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
- Console audio ports on front panel for easy access - ideal for IP phone users
- Supports both USB and PS/2 keyboards and mice - flexible configurations available with the included USB-to-PS/2 converter: USB keyboard and mouse; PS/2 keyboard and mouse; or PS/2 keyboard and USB mouse
- Independent switching of KVM, USB, and Audio focus
- Superior video quality; 2048 x 1536; DDC2B
- Supports widescreen resolutions
- Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), and mouse
- Multiplatform support - Windows , Mac, and Sun
- Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- LED Display for easy status monitoring
- Easy installation no software required
- Firmware upgradeable

*1.PC keyboard combinations emulate Sun/Mac keyboards
*2.Sun/Mac keyboards only work with their own computers

Package Contents

- 1x 4-Port USB 2.0 KVMP™ Switch
- 2x 2L-5301U USB KVM Cables
- 2x 2L-5302U USB KVM Cables
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 2x OSD/Hotkey Stickers
- 1x Firmware Upgrade Cable
- 1x 0AD6-1605-24EG Power Adapter
- 1x User Instructions

Specifications

Ports & interfaces
USB connector type	USB Type-A
Number of microphone inputs	5
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
Audio connections	Yes
Headphone outputs	5
USB 2.0 Type-A hub ports quantity	4
Performance
Firmware upgradeable	Yes
HD type	2K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	2048 x 1536 pixels
Scan interval	1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99,100,240,250,255 s
Maximum digital resolution	2048 x 1536 pixels
Technical details
Product colour	Black, Grey
Rack mounting	Yes
Scan interval	1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99,100,240,250,255 s
LED indicators	Activity, USB
Hot keys	Yes
Design
Wired remote switch	No
Display switch button	Yes
Product colour	Black, Grey
Rack mounting	Yes
LED indicators	Activity, USB
Hot keys	Yes
Housing material	Metal
Display
Built-in display	No
Power
Output voltage	5.3 V
Power source	DC
Power consumption (typical)	3.4 W
External power adapter	Yes
Video
HD type	2K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	2048 x 1536 pixels
Maximum digital resolution	2048 x 1536 pixels
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	210 mm
Depth	88 mm
Height	55.5 mm
Weight	780 g
Other features
Hot keys	Yes
Logistics data
Harmonized System (HS) code	85176200
