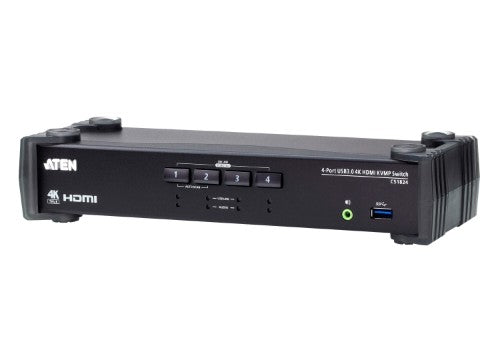

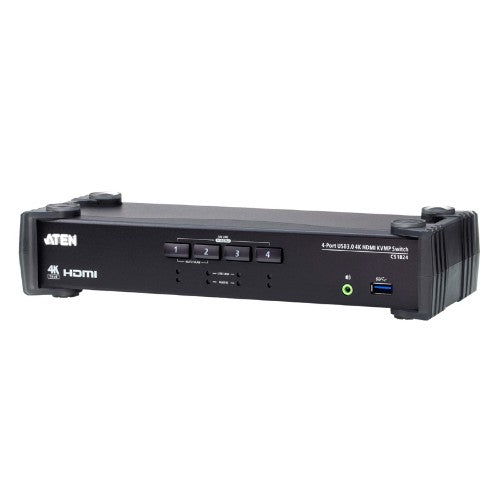

ATEN CS1824 KVM switch Black

4-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode

Key Features

• One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals
• Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
• Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
• Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Audio Mixer Modes – mixes up to two audio sources as audio output
• Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
• ATEN default EDID mode – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
• Independent switching of KVM, USB peripheral, and stereo audio focus2
• HDMI 2.0 compliant; HDCP 2.2 compliant
• Supports HD Audio2
• Power on detection
• Auto Scan Mode for monitoring all computers
• Firmware upgradable
• Note:
• 1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
• 2. HD audio through HDMI channel cannot be switched independently

Description

The ATEN CS1824 KVMP™ Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.

With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.

In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.

Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.

Specifications

Technical details
Product colour	Black
Scan interval	1,99 s
Push button	Yes
USB hub	Yes
Video
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	4096 x 2160 pixels

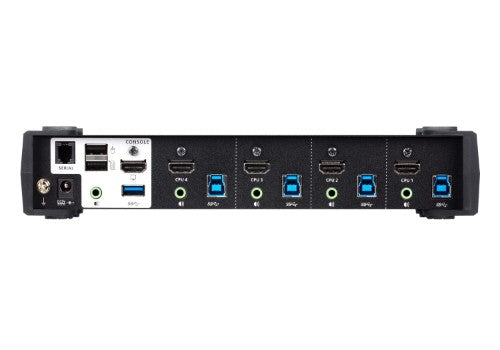

Ports & interfaces
Console USB ports quantity	2
Console ports	3.5mm headphone, HDMI, USB A
USB connector type	USB Type-A, USB Type-B
Serial ports quantity	1
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Audio connections	Yes
HDMI ports quantity	5
DC-in jack	Yes
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
Performance
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	4096 x 2160 pixels
Scan interval	1,99 s
Design
Product colour	Black
Push button	Yes
Housing material	Metal, Plastic
Power
Output voltage	5 V
Power source	DC
Power consumption (typical)	2.535 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	880 mm
Depth	2700 mm
Height	555 mm
Weight	940 g
Other features
Push button	Yes
