StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub

StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio and USB 2.0 Hub

Description

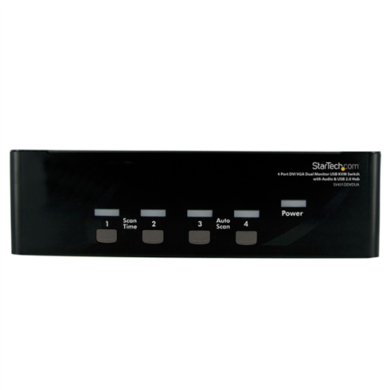

The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.

This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.

The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.

NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage
- High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Absolutely no software or drivers required providing a completely OS independent KVM solution

Specifications

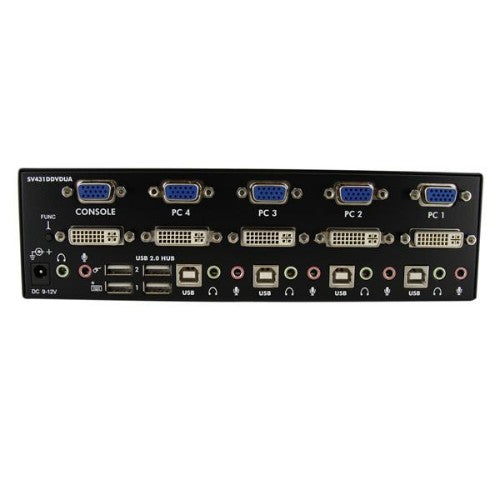

Ports & interfaces
Console USB ports quantity	4
Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
USB connector type	USB Type-A
Number of microphone inputs	1
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA/DVI-I
Audio connections	Yes
VGA (D-Sub) ports quantity	5
Headphone outputs	1
DVI-I ports quantity	5
DC-in jack	Yes
Performance
Daisy chain	No
Maximum resolution	1920 x 1200 pixels
Number of users	1 user(s)
Technical details
Product colour	Black
On Screen Display (OSD)	No
Number of users	1 user(s)
LED indicators	Yes
Hot keys	Yes
IP control	No
Compliance certificates	RoHS
Design
Mean time between failures (MTBF)	140000 h
Product colour	Black
LED indicators	Yes
Hot keys	Yes
Certification	CE, FCC, UL, REACH
Housing material	Steel
Display
Built-in display	No
On Screen Display (OSD)	No
Power
Input current	0.8 A
Output current	1.5 A
Power plug type	Type M
Compatible power plug types	AU, EU, UK, US
Output voltage	12 V
Power consumption (typical)	18 W
External power adapter	Yes
Input voltage	100 - 240 V
Video
Maximum resolution	1920 x 1200 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	220 mm
Depth	163 mm
Height	60 mm
Weight	1.3 kg
Package width	295 mm
Package depth	249 mm
Package height	86 mm
Package weight	1.8 kg
Packaging data
Package width	295 mm
Package depth	249 mm
Package height	86 mm
Package weight	1.8 kg

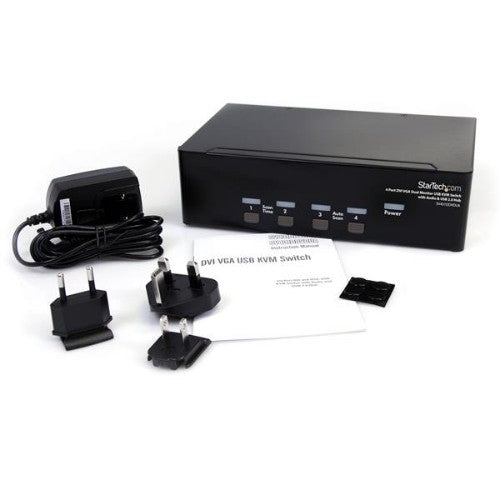

Packaging content
Rubber feet	Yes
Manual	Yes
AC adapter included	Yes
Certificates
Certification	CE, FCC, UL, REACH
Other features
IP control	No
Hot keys	Yes
Logistics data
Harmonized System (HS) code	85176200
