StarTech.com 4 Port USB DisplayPort KVM Switch with Audio

StarTech.com 4 Port DisplayPort KVM Switch w/ Audio - USB, Keyboard, Video, Mouse, Computer Switch Box for 2560x1600 DP Monitor (SV431DPUA)

Description

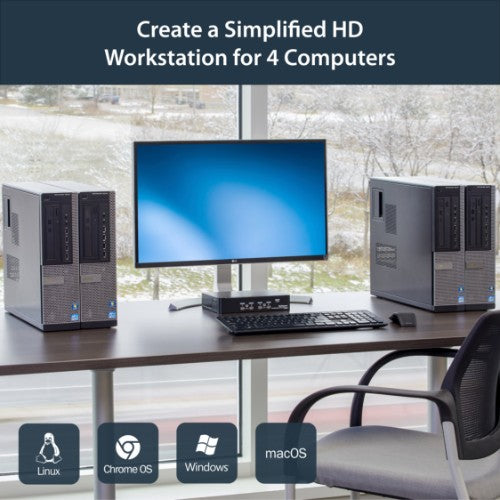

Share keyboard, mouse, and DisplayPort display between four HD multimedia systems

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.

Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.

Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

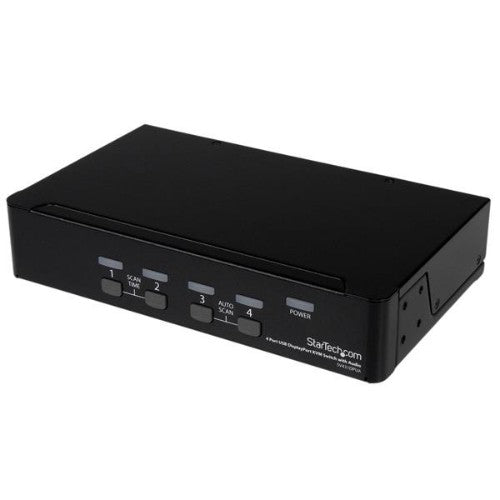

A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

The StarTech.com Advantage

- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility

Specifications

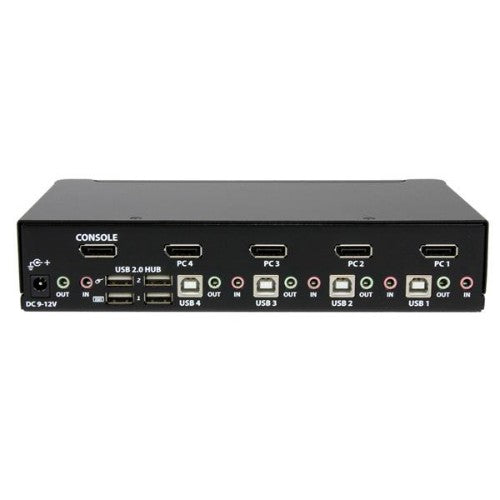

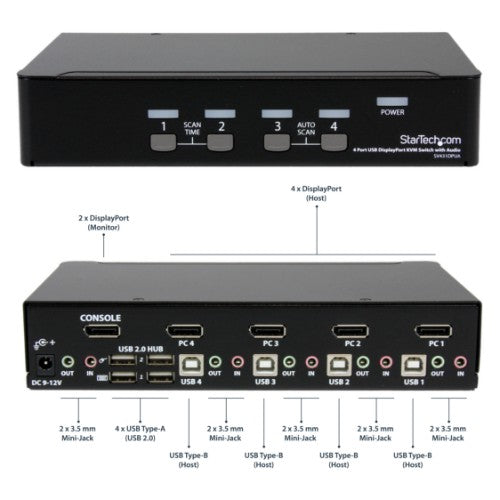

Ports & interfaces
Console USB ports quantity	4
Console ports	DisplayPort, 3.5mm headphone, 3.5mm mic, USB A
Number of microphone inputs	5
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
Headphone outputs	5
DC-in jack	Yes
USB hub	Yes
Performance
DDC2B support	Yes
Daisy chain	No
Hot-Plug support	Yes
Plug and Play	Yes
Maximum resolution	3840 x 2400 pixels
Number of users	1 user(s)
Maximum digital resolution	2560 x 1600 pixels
Audio channels	7.1
Technical details
Product colour	Black
Hot-Plug support	Yes
Plug and Play	Yes
Push button	Yes
On Screen Display (OSD)	No
Number of users	1 user(s)
LED indicators	Yes
Hot keys	Yes
IP control	No
Audio support	Yes
USB hub	Yes
Compliance certificates	RoHS
Design
Mean time between failures (MTBF)	136000 h
Product colour	Black
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Certification	CE, FCC, UL, TAA, REACH
Housing material	Steel
Display
Built-in display	No
On Screen Display (OSD)	No
Power
Input current	0.8 A
Output current	1.5 A
Power plug type	Type M
Compatible power plug types	AU, EU, UK, US
Output voltage	12 V
External power adapter	Yes
Input voltage	100 - 240 V
Video
Maximum resolution	3840 x 2400 pixels
Maximum digital resolution	2560 x 1600 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions

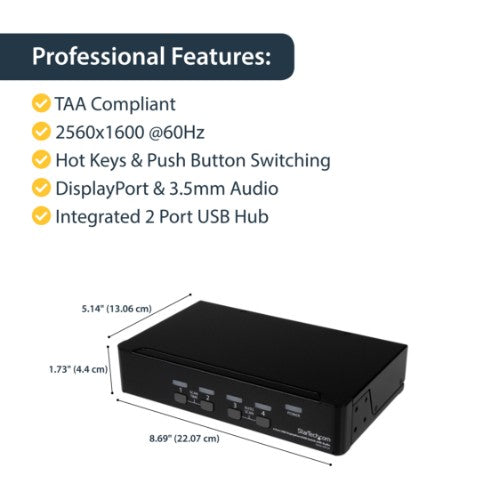

Width	221 mm
Depth	130.6 mm
Height	44 mm
Weight	1 kg
Package width	214 mm
Package depth	411 mm
Package height	87 mm
Package weight	1.6 kg
Packaging data
Package width	214 mm
Package depth	411 mm
Package height	87 mm
Package weight	1.6 kg

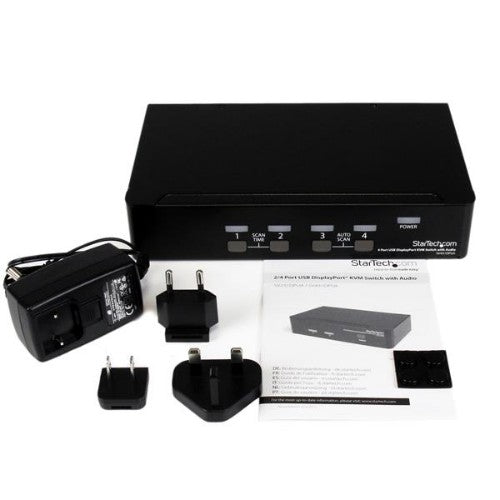

Packaging content
Rubber feet	Yes
Manual	Yes
AC adapter included	Yes
Certificates
Certification	CE, FCC, UL, TAA, REACH
Other features
IP control	No
Audio support	Yes
Push button	Yes
Hot keys	Yes
Logistics data
Harmonized System (HS) code	85176200
