Description

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

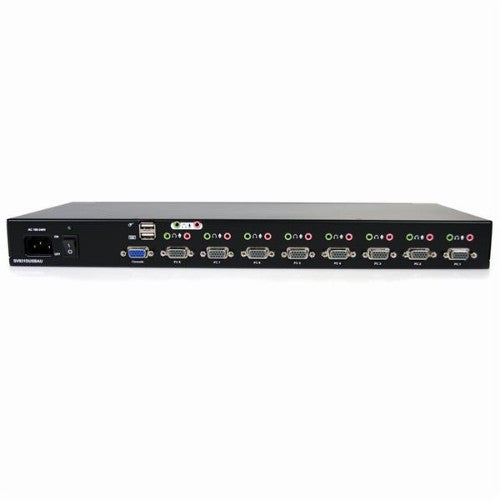

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Rugged, rack mountable 1U metal chassis is ideal for any environment
- User friendly access through the OSD saves configuration time and frustration
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
USB connector type	USB Type-A
Number of microphone inputs	8
Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
USB 2.0 ports quantity	2
Headphone outputs	8
DC-in jack	Yes
Performance
Daisy chain	Yes
Plug and Play	Yes
Maximum resolution	1920 x 1440 pixels
Number of users	1 user(s)
Maximum analog resolution	1920 x 1440 pixels
Technical details
Product colour	Black
Rack mounting	Yes
Plug and Play	Yes
On Screen Display (OSD)	Yes
Number of users	1 user(s)
LED indicators	Yes
IP control	No
Audio support	Yes
Cascadable	Yes
Compliance certificates	RoHS
Design
Product colour	Black
Rack mounting	Yes
LED indicators	Yes
Certification	CE, FCC, UL
Cascadable	Yes
Rack capacity	1U
Housing material	Steel
Display
On Screen Display (OSD)	Yes
Power
Input current	1.8 A
Output current	4 A
Power plug type	Type M
Output voltage	12 V
Power consumption (typical)	48 W
Input voltage	110-240 V
Video
Maximum resolution	1920 x 1440 pixels
Maximum analog resolution	1920 x 1440 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	540 mm
Depth	180 mm
Height	45 mm
Weight	2.6 kg
Package width	123 mm
Package depth	591 mm
Package height	264 mm
Package weight	4.7 kg
Packaging data
Package width	123 mm
Package depth	591 mm
Package height	264 mm
Package weight	4.7 kg
Packaging content
Rubber feet	Yes
Cables included	AC
Manual	Yes
AC adapter included	Yes
Certificates
Certification	CE, FCC, UL
Other features
IP control	No
Audio support	Yes
Logistics data
Harmonized System (HS) code	85176200
