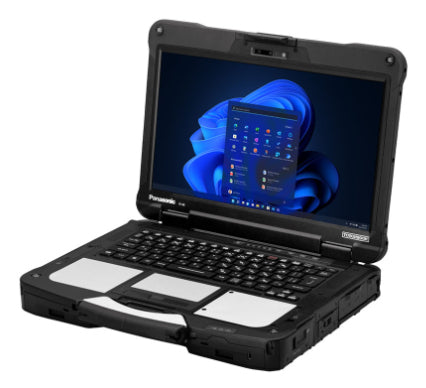

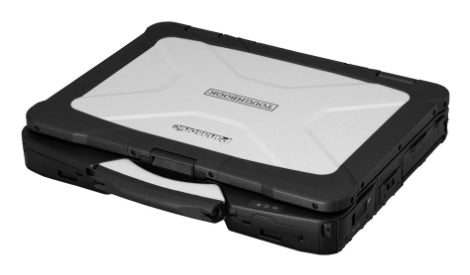

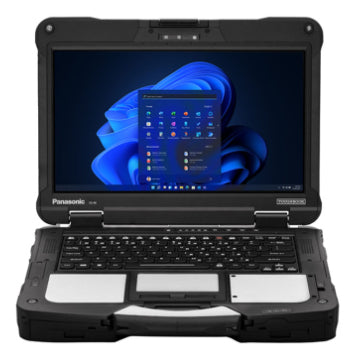

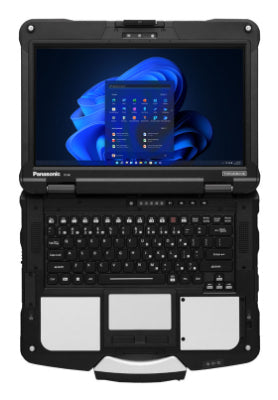

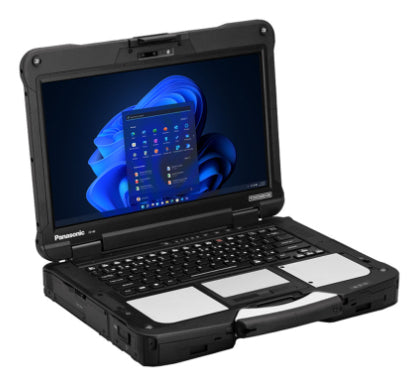

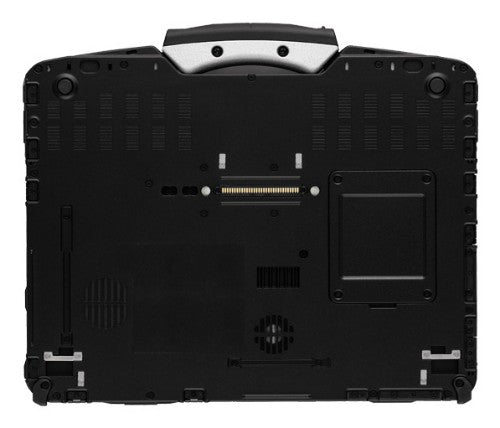

Panasonic Toughbook 40 Mk2 Intel Core Ultra 7 165H Laptop 35.6 cm (14") Touchscreen Full HD 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro Black, Silver

Intel Core Ultra 7 165H (24MB Cache), 16GB DDR5-SDRAM, 512GB SSD, 14" Full HD 1920 x 1080 IPS Touch, Intel Arc Graphics, LAN, WLAN, Webcam, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core Ultra 7 165H (24MB Cache)
• 14" Full HD 1920 x 1080 IPS Touch
• 16GB (5600MHz) DDR5-SDRAM & 512GB SSD

Description

The 14” fully-rugged Panasonic TOUGHBOOK® 40 offers unrivaled flexibility in even the most demanding and unpredictable environments with its class-leading eight modular areas including its innovative modular expansion packs (xPAK’s). Optical drives, authentication readers, IO ports and even the Barcode Reader xPAK are all user-upgradeable. Its state-of-the-art design optimizes thermals for maximum performance and its latest technology will ensure the TOUGHBOOK 40 will withstand the test of time. It is the first AI-enabled TOUGHBOOK PC featuring an Intel processor with dedicated NPU to optimize AI performance. It also has up to 64GB of RAM, up to 4TB of storage, all-day battery life, four microphones, color-selectable backlit keyboard, 95db speakers, and choice of two cellular modems. The 4G modem provides up to 2Gbps and the 5G modem adds support of 5G Sub6, and C-band with speeds up to 4.1Gbps. It also has the ability to seamlessly connect to the best available network without any disruption or loss of connectivity.

Specifications

Design
Product type	Laptop
Form factor	Clamshell
Product colour	Black, Silver
Rugged design	Yes
Stylus pen support	Yes
Certified refurbished	No
Display
HD type	Full HD
Panel type	IPS
Display brightness	1200 cd/m²
Touchscreen	Yes
Display resolution	1920 x 1080 pixels
Display diagonal	35.6 cm (14")
Anti-reflective coating	Yes
Processor
Processor generation	Intel® Core™ Ultra (Series 1)
Processor cache type	Smart Cache
Processor cache	24 MB
Processor model	165H
Processor boost frequency	5 GHz
Processor cores	16
Processor threads	22
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor base power	28 W
Maximum turbo power	115 W
Efficient-core base frequency	0.9 GHz
Performance-core base frequency	1.4 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core Max Turbo Frequency	5 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-core Base Frequency	700 MHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-cores	2
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Maximum internal memory	64 GB
Storage
Storage media	SSD
Card reader integrated	Yes
Compatible memory cards	MicroSDXC, MicroSD (TransFlash), MicroSDHC
Total storage capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Arc Graphics
On-board graphics card	Yes
On-board graphics card model	Intel Arc Graphics
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
Audio
Audio system	MaxxAudio
Speakers manufacturer	Waves
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Network
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE200
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.3
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 2.0 ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Keyboard
Numeric keypad	No
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Technical details
Form factor	Clamshell
Product colour	Black, Silver
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery recharge time	3 h
Battery voltage	10.8 V
Power
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Cable lock slot	Yes
Trusted Platform Module (TPM) version	2.0
Certificates
Certification	MIL-STD-810H, MIL-STD-461G
Weight & dimensions
Width	353.1 mm
Depth	302.3 mm
Height	53.3 mm
Weight	3.36 kg
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
WLAN controller model	Intel Wi-Fi 7 BE200
On-board graphics card	Yes
Audio system	MaxxAudio
AC adapter included	Yes
