Mercusys BE9300 Whole Home Mesh Wi-Fi 7 System

BE3600 Whole Home Mesh Wi-Fi 7 System, Wi-Fi 7, 2.4/5 GHz, 128 × 81.3 × 83.7 mm, 3-pack

Key Features

• Blazing-Fast 3.6 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.‡
• Newest Wi-Fi 7: Armed with the 4K-QAM, MLO, Multi-RUs, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.△
• Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging Wi-Fi when you're walking around the house.†
• Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.△
• Full Gigabit Ports – 3× Gigabit ports per Halo unit for lightning-fast wired connections
• Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 7,000 ft2 / 650 m2 (3-pack) ; 5,000 ft² / 460 m² (2-pack) .‡

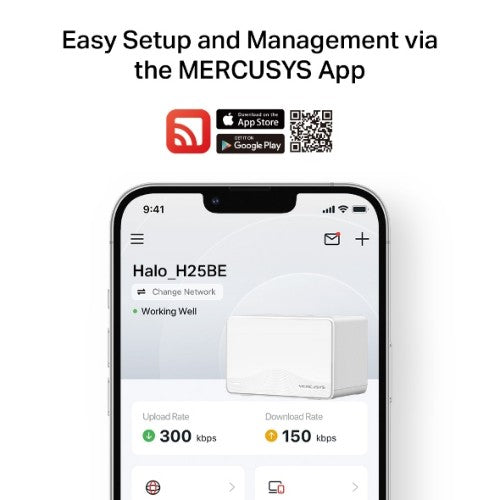

• Easy Setup and Use: Network management has never been easier with the MERCUSYS app

Description

Enjoy Wi-Fi 7 Super Speed, From Basement to Attic!
BE3600 Whole Home Mesh Wi-Fi 7 System

3.6 Gbps Dual-Band Wi-Fi 7 for Exceptional Experiences
Wi-Fi 7, the latest Wi-Fi standard, has arrived with jaw-dropping performance-offering accelerated throughput, lower latency, strongeranti-jamming, and higher efficiency. By upgrading the QAM from 1024 to 4096, Wi-Fi 7 enables the Halo H25BE to achieve speeds of up to 3.6 Gbps. Join the pros and experience the power of the next generation of Wi-Fi.

True Seamless Roaming with One Unified Network
The Halo system automatically connects your phones or tablets to the fastest node, delivering a truly seamless network experience. No more sudden signal drops or lagging Wi-Fi when you’re walking around the house.

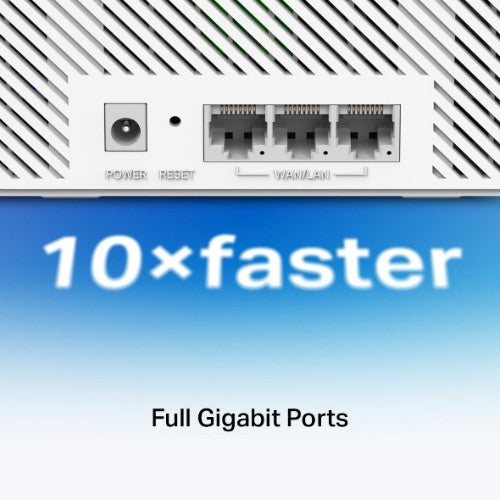

Full Gigabit Ports
Thanks to WAN/LAN Auto-Sensing, there’s no need to distinguish between WAN/LAN ports. This reduces time and effort, so you can get straight to enjoying Halo H25BE’s lightning-fast data transfer to wired devices. With full gigabit ports, your devices will clock 10× faster than standard Ethernet connections.

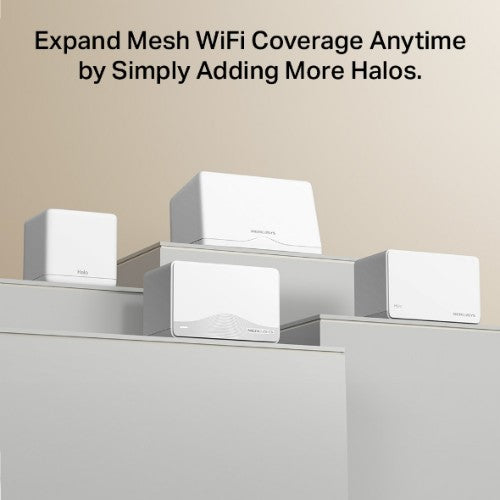

Easily Extend Your Coverage
The Halo Whole Home Wi-Fi kit includes multiple units to fit any type of your house. If that’s not enough, you can expand Mesh Wi-Fi coverage anytime by simply adding more Halos.

Specifications

Design
Product colour	White
LED indicators	Yes
Antenna type	Internal
Operating temperature (T-T)	0 - 40 °C
Reset button	Yes
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Number of devices supported	150
Maximum coverage	650 m²
Product type	Mesh system
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Security algorithms	WPA-PSK, WPA2-PSK, WPA3-SAE
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
WLAN data transfer rate (first band)	2880 Mbit/s
WLAN data transfer rate (second band)	688 Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Point-to-point protocol over Ethernet (PPPoE)	Yes
Static IP	Yes
Dynamic IP	Yes
Guest access	Yes
WLAN data transfer rate (max)	2880 Mbit/s
Features
DHCP client	Yes
DHCP server	Yes
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
Parental control	Yes
Protocols
DHCP client	Yes
DHCP server	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	3
DC-in jack	Yes
Ethernet WAN	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	128 mm
Depth	81.3 mm
Height	83.7 mm
Packaging content
AC adapter included	Yes
Ethernet cable	Yes
Number of products included	2 pc(s)
Number of units included	2 pc(s)
