Neomounts FPMA-VESA100 VESA-adapter 10-30"

Neomounts FPMA-VESA100 VESA-adapter - 10-30" - max 25 kg - VESA 75x75-100x100 - black

Description

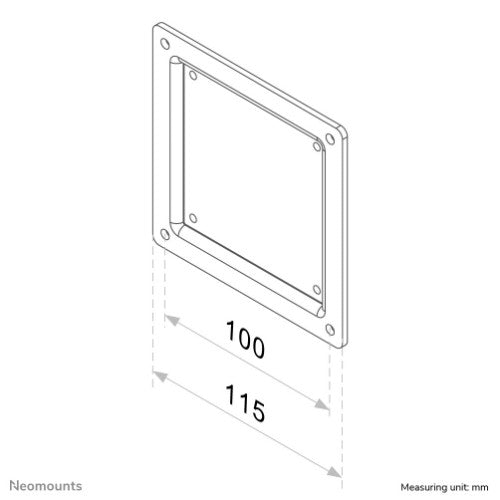

The Neomounts VESA adapter, model FPMA-VESA100 allows a VESA mount with 75x75 mm interface to be used with displays with VESA hole patterns of 100x100. Ideal when flat screen needs different VESA pattern to select wall-, desk- or ceiling mount.

Neomounts FPMA-VESA100 is suitable for screens up to 30" (75 cm). The weight capacity of this product is 25 kg each screen. Depth of this adapter is 3 millimetres only. The adapter is suitable for screens that meet VESA hole pattern 100x100 mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

All installation material is included with the product.

Specifications

Mounting
Maximum screen size	76.2 cm (30")
Minimum screen size	25.4 cm (10")
Number of displays supported	1
Maximum weight capacity	25 kg
Panel mounting interface	100 x 100,75 x 75 mm
Product colour	Black
Features
VESA mounting	Yes
Maximum screen size	76.2 cm (30")
Minimum screen size	25.4 cm (10")
Number of displays supported	1
Maximum weight capacity	25 kg
Panel mounting interface	100 x 100,75 x 75 mm
Product colour	Black
Housing material	Steel
Maximum VESA mount	100 x 100 mm
Technical details
Product colour	Black
Package net weight	300 g
Package weight	300 g
Package depth	20 mm
Package width	150 mm
Package height	100 mm
Maximum weight capacity	25 kg
Panel mounting interface	100 x 100,75 x 75 mm
Master (outer) case net weight	16.7 kg
Country of origin	Taiwan
Weight & dimensions
Weight	330 g
Package weight	300 g
Package depth	20 mm
Package width	150 mm
Package height	100 mm
Colour
Product colour	Black
Packaging data
Package weight	300 g
Package depth	20 mm
Package width	150 mm
Package height	100 mm
Package net weight	300 g
Other features
VESA mounting	Yes
Logistics data
Master (outer) case width	290 mm
Master (outer) case length	230 mm
Master (outer) case height	160 mm
Master (outer) case gross weight	17 kg
Products per master (outer) case	50 pc(s)
Master (outer) case net weight	16.7 kg
Products per pallet (EU)	800 pc(s)
Harmonized System (HS) code	7326909890
