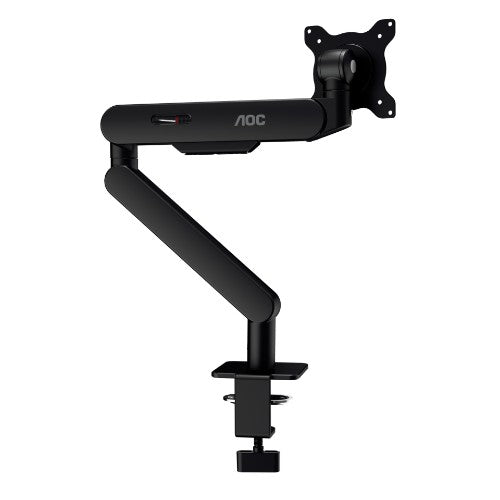

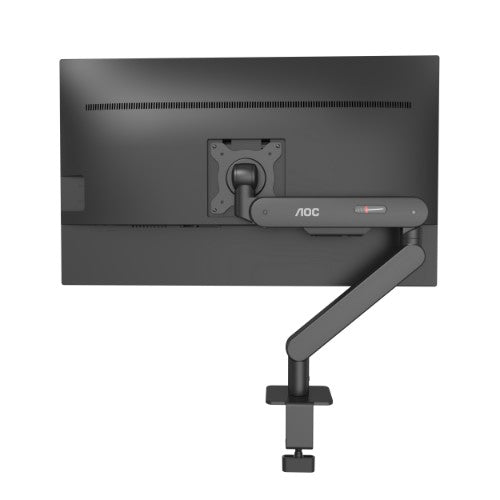

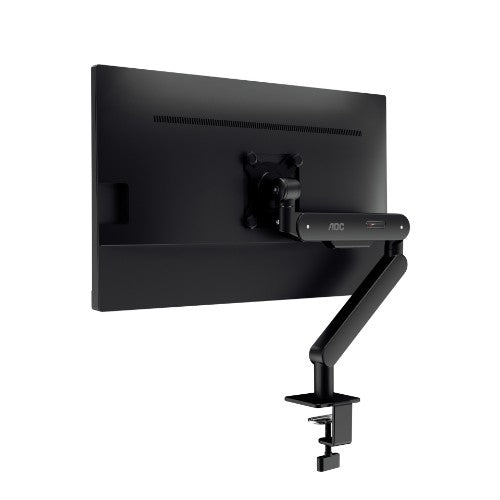

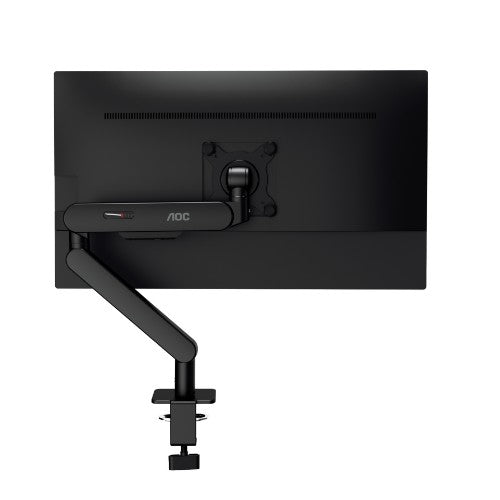

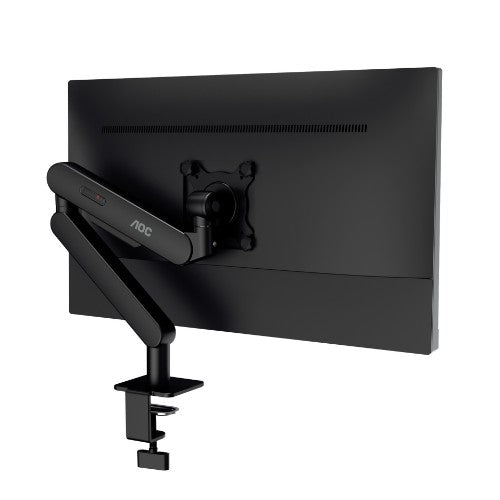

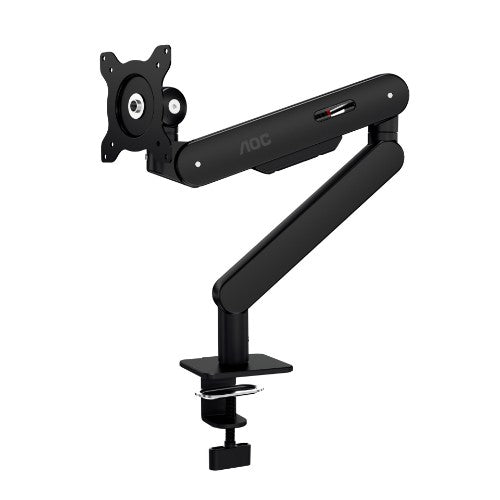

AOC AM400B monitor mount / stand 86.4 cm (34") Desk Black

AM400BEnhance your workspace: the AM400B universal monitor arm - Seamlessly integrate, maximize space, and manage cables.

Reasons To Buy

C-Lamp or Grommet Mount attachment

Your new AOC monitor arm is guaranteed to fit onto your desk. With either the grommet mount or the c-lamp method, you can easily fasten the mount to your tabletop. Your monitor will be firmly secured and ready for every gaming action.

Vesa Connection

Any monitor equipped with a VESA mounting grid (100x100 or 75x75) can easily be attached to the monitor arm. The VESA mounting system is a widely used solution that most monitors are equipped with. Four screws hold the monitor securely to the mount, by its centre of gravity.

Cable Management

Using the detachable covers on the monitor arm, simply push through your cables inside the pre-allocated routes in the monitor arm. After fitting both power and display cables inside, close the covers and experience a tidy desk with neatly organised connections. Cables are kept in place even when moving the display or turning it into portrait mode.

Durable Mechanical Spring

A mechanical spring tensioning system is built into the upper arm to match the weight of the monitor. More than 30,000 exercise tests, safer and stronger.

Description

Enhance your workspace: the AM400B universal monitor arm - Seamlessly integrate, maximize space, and manage cables.
Crafted to perfection with an aluminum alloy build, the AM400B accommodates monitor sizes from 17” to 34”, with a maximum weight capacity of 9 kg. Its durable mechanical spring mechanism ensures sturdy support, while VESA compatibility (75x75, 100x100mm) allows for easy integration. Enjoy a versatile range of motion, including up to 495 mm height adjustment, up to 456 mm extension, -15°/90° tilt, -90°/90° swivel, and 360° pivot range, enhancing your workspace flexibility. Select between C Clamp or Grommet installation methods to suit your setup and elevate your ergonomic experience with the universal monitor arm AM400B.

Specifications

Mounting
Maximum weight capacity (per display)	9 kg
Desk thickness (min)	1.5 cm
Desk thickness (max)	5 cm
Minimum screen size	43.2 cm (17")
Panel mounting interface	100 x 100,75 x 75 mm
Mounting type	Desk
Mounting	Clamp/Bolt-through
Maximum weight capacity	9 kg
Maximum screen size	86.4 cm (34")
Clamp mount desk thickness (max)	5 cm
Ergonomics
Cable management	Yes
Depth adjustment range	0 - 455 mm
Height adjustment	Yes
Height adjustment range	250 - 495 mm
Pivot angle	0 - 360°
Swivel angle range	-90 - 90°
Tilt angle range	-15 - 90°
Height adjustment type	Manual
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	Black
Housing material	Aluminium
Technical details
Mounting type	Desk
Product colour	Black
Cable management	Yes
Warranty period	5 year(s)
Weight & dimensions
Weight	2.2 kg
Package width	190 mm
Package depth	398 mm
Package height	100 mm
Package weight	2.6 kg
Packaging data
Package width	190 mm
Package depth	398 mm
Package height	100 mm
Package weight	2.6 kg
Clamp included	Yes
Manual	Yes
Packaging content
Clamp included	Yes
Manual	Yes
Packaging content	User Manual, Monitor Arm, Clamp mount, Grommet mount, Installation materials
Mounting kit	Yes
Other features
Height (max)	49.5 cm
Warranty period	5 year(s)
Mounting type	Desk
Mounting	Clamp/Bolt-through
