j5create

j5create JTSA101 Ergonomic Monitor Mount, Black

SKU JTSA101-N
£70.22
£46.37
£70.22
£46.37
Excluding taxes
Ergonomic Monitor Mount

Key Features

  • An ergonomic solution for your comfort, the perfect companion for your monitor
  • Fully adjustable gas spring monitor arm. Easily adjust your monitor to any height

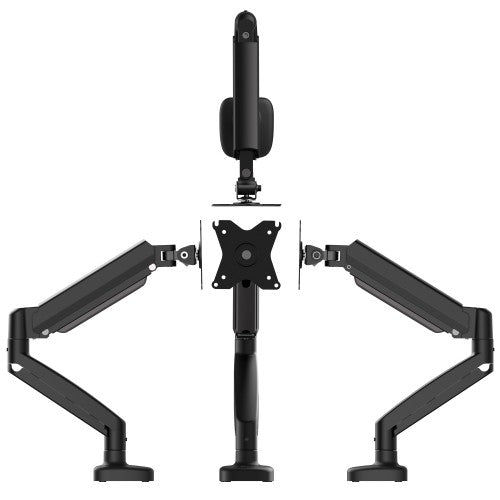

  • Allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle
  • Supports 17” to 32” monitor weighing up to 8kg/17.6 lbs, works with most VESA® -compatible monitors
  • Simple to Install, includes clear instructions and all necessary tools

Description

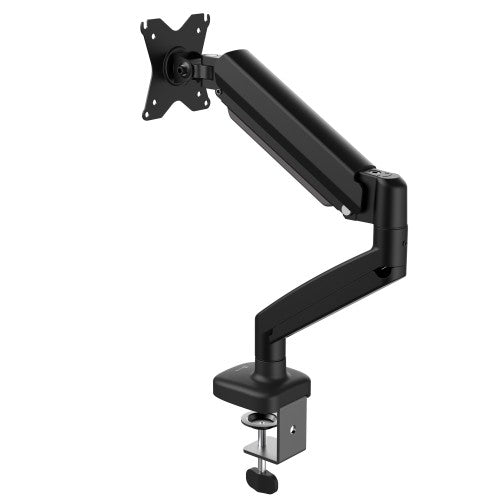

The JTSA101 is a gas spring monitor mount. The arm can hold max a 32” screen weighing up to 8kg/17.6 lbs. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.

Specifications

Mounting
Desk thickness (min) 1 cm
Minimum screen size 43.2 cm (17")
Number of displays supported 1
Mounting type Desk
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 100 x 100 mm

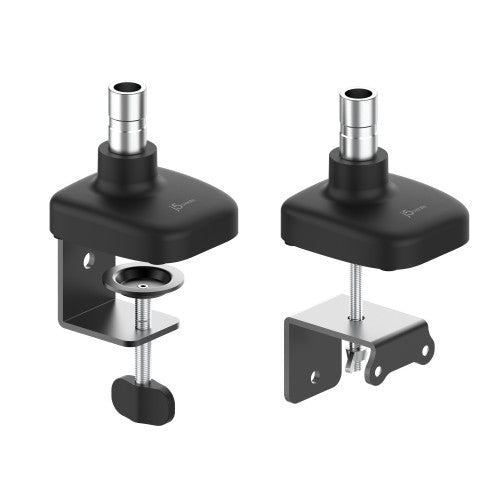

Mounting Clamp/Grommet
Maximum weight capacity 8 kg
Maximum screen size 81.3 cm (32")
Grommet mount desk thickness (max) 5 cm
Ergonomics
Cable management Yes
Height adjustment Yes
Swivel angle 180°
Tilt angle range -45 - 90°
Angle of rotation 360°
Rotating Yes
Tilt adjustment Yes
Swivelling Yes
Design
Easy to install Yes
Product colour Black
Housing material Aluminium, Plastic, Steel
Technical details
Mounting type Desk
Product colour Black
Cable management Yes
Sustainability compliance Yes
Warranty period 2 year(s)
Compliance certificates CE, REACH, RoHS
Weight & dimensions
Width 90 mm
Depth 320 mm
Height 465 mm
Weight 1.98 kg
Package width 208 mm
Package depth 465 mm
Package height 106 mm
Package type Box
Package weight 2.61 kg
Packaging data
Package width 208 mm
Package depth 465 mm
Package height 106 mm
Package type Box
Package weight 2.61 kg
Quantity per pack 1 pc(s)
Packaging content
Packaging content 1 - JTSA101 Ergonomic Monitor Mount 1 - Installation tools & accessories 1 - Quick Installation Guide (QIG)
Operational conditions
Operating temperature (T-T) 0 - 30 °C
Operating relative humidity (H-H) 0 - 85%
Maximum operating temperature 30 °C
Storage temperature (T-T) -10 - 65 °C
Storage relative humidity (H-H) 0 - 85%
Sustainability
Sustainability compliance Yes
Other features
Warranty period 2 year(s)
Compliance certificates CE, REACH, RoHS
Mounting type Desk
Mounting Clamp/Grommet
Country of origin China
Logistics data
Master (outer) case width 233 mm
Master (outer) case length 486 mm
Master (outer) case height 240 mm
Products per master (outer) case 2 pc(s)
Master (outer) case GTIN (EAN/UPC) 24712795087677
Country of origin China
Master (outer) case net weight 5.6 kg
Export Control Classification Number (ECCN) EAR99
