j5create

j5create JTSA302 Ergonomic Dual-Monitor Mount with Docking Station, Black

SKU JTSA302-N
£217.44
£162.65
£217.44
£162.65
Excluding taxes
Ergonomic Dual-Monitor Mount with Docking Station

Key Features

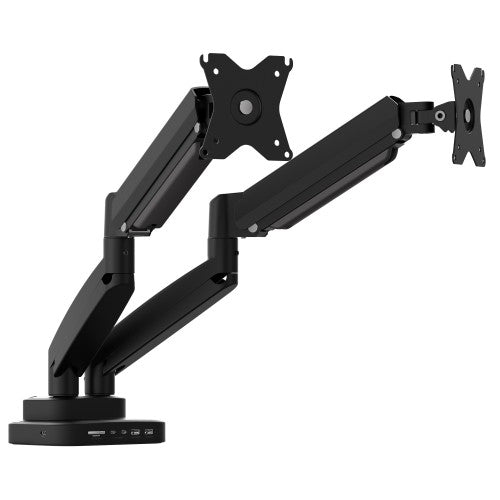

  • Fully adjustable gas spring dual monitor mount with 10-in-1 dock
  • Easily adjusts monitors to any height and allows the monitors to swivel 180°, tilt -45° to +90° and rotate 360°. Conveniently set your monitors at optimal angles

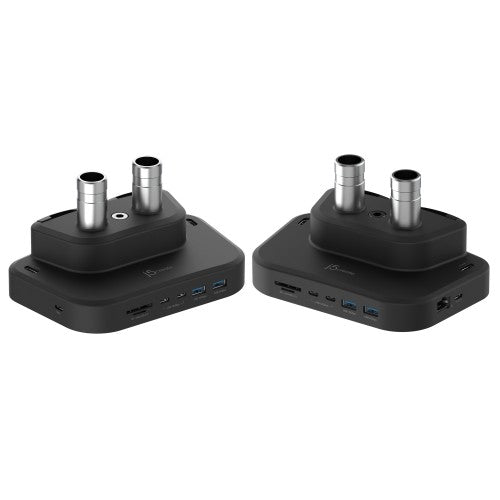

  • Equipped with a 10-in-1 MST dual-display dock with two 4K60Hz HDMI™ , Gigabit Ethernet, 1 x USB™ Type-A 10Gbps, 1 x USB™ Type-A 5Gbps, 2 x USB-C® 10Gbps, SD™ /microSD™ 4.0, and up to 100W PD pass through charging

Description

The JTSA302 is a gas spring monitor mount. Equipped with a 10-in-1 MST dual-display dock with two 4K60Hz HDMI™, Gigabit Ethernet, 1 x USB™ Type-A 10Gbps, 1 x USB™ Type-A 5Gbps 2 x USB-C® 10Gbps, SD™ /microSD ™ 4.0, and up to 100W PD pass through charging. The arm can hold max two 32” screens weighing up to 8kg/17.6 lbs. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.

Specifications

Mounting
Maximum weight capacity (per display) 8 kg
Desk thickness (min) 1 cm
Minimum screen size 43.2 cm (17")
Number of displays supported 2
Mounting type Desk
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 100 x 100 mm
Mounting Clamp/Grommet
Maximum weight capacity 16 kg
Maximum screen size 81.3 cm (32")
Clamp mount desk thickness (max) 5 cm
Grommet mount desk thickness (max) 5 cm
Ergonomics
Cable management Yes
Adjustable depth Yes
Height adjustment Yes
Swivel angle 180°
Tilt angle range -45 - 90°
Angle of rotation 360°
Tilt adjustment Yes
Swivelling Yes
Built-in USB hub Yes
USB hub version 3.2 Gen 2 (3.1 Gen 2)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Data transfer rate 10 Gbit/s
Design
Easy to install Yes
Product colour Black
Housing material Aluminium, Plastic, Steel
Orientation Landscape/Portrait
HDMI ports quantity 2
Ports & interfaces
HDMI ports quantity 2
Built-in USB hub Yes
USB hub version 3.2 Gen 2 (3.1 Gen 2)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Data transfer rate 10 Gbit/s
Power
Input voltage 20 V
Technical details
Mounting type Desk
Product colour Black
Cable management Yes
HDMI ports quantity 2
Sustainability compliance Yes
Warranty period 2 year(s)
Compliance certificates CE, REACH, RoHS
Display resolution 3840 x 2160 pixels
Compatible operating systems Windows® macOS®
Weight & dimensions
Width 180 mm
Depth 320 mm
Height 465 mm
Weight 3.7 kg
Package width 243 mm
Package depth 515 mm
Package height 127 mm
Package type Box
Package weight 4.44 kg
Packaging data
Package width 243 mm
Package depth 515 mm
Package height 127 mm
Package type Box
Package weight 4.44 kg
Quantity per pack 1 pc(s)
Packaging content
Packaging content 1- JTSA302 Ergonomic Dual-Monitor Mount with Docking Station 1 - USB-C® 10Gbps male to male host cable (100 cm / 3.3 ft) 1- Installation tools & accessories 1 - Quick Installation Guide (QIG)
Operational conditions
Operating temperature (T-T) 0 - 30 °C
Operating relative humidity (H-H) 0 - 85%
Maximum operating temperature 30 °C
Storage temperature (T-T) -10 - 65 °C
Storage relative humidity (H-H) 0 - 85%
Sustainability
Sustainability compliance Yes
Other features
Warranty period 2 year(s)
Compliance certificates CE, REACH, RoHS
Mounting type Desk
Mounting Clamp/Grommet
Country of origin China
Compatible operating systems Windows® macOS®
Logistics data
Master (outer) case width 275 mm
Master (outer) case length 536 mm
Master (outer) case height 145 mm
Products per master (outer) case 1 pc(s)
Master (outer) case GTIN (EAN/UPC) 24712795088292
Country of origin China
Master (outer) case net weight 4.8 kg
Export Control Classification Number (ECCN) EAR99
