Neomounts DS70PLUS-450BL1 Monitor arm 17-49" - gas spring - Topfix - 180°-stop

Neomounts NEXT Core DS70PLUS-450BL1 Single monitor arm - 17-49" - 1-18 kg (curved 14 kg) - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - black

Description

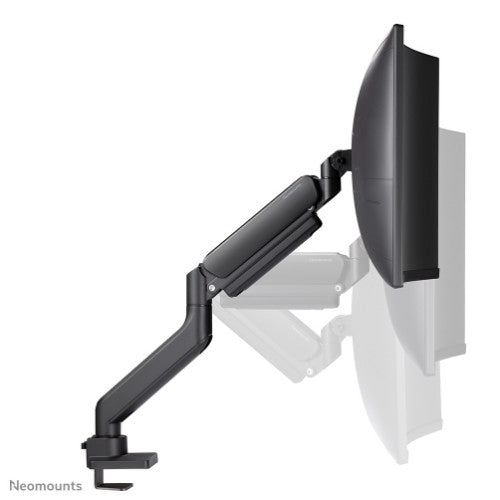

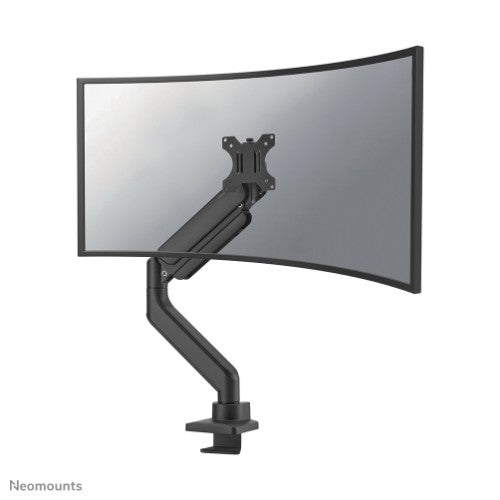

The Neomounts DS70PLUS-450BL1 NEXT Core is a full motion desk mount for curved ultra-wide screens up to 49". The mount features a strengthened head specifically designed for curved ultra-wide screens and to support a higher maximum weight up to 18 kg (curved 14 kg). The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (5,4-49,7 cm), to create the perfect working position.

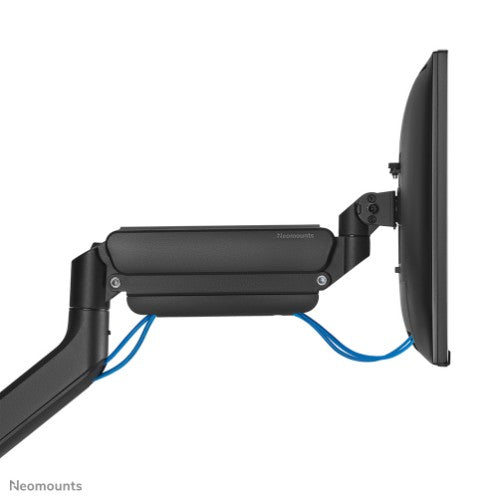

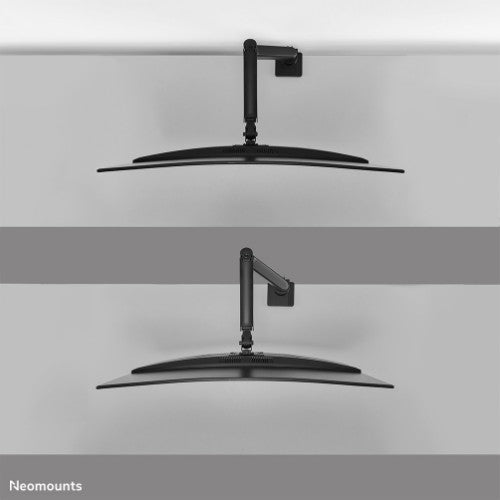

The DS70PLUS-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

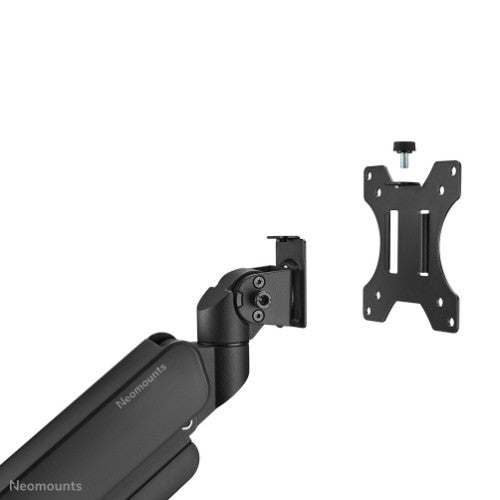

The DS70PLUS-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the NEXT Core is 100% plastic free and entirely made from cardboard and paper.

For wall installation, the AWL75-450BL wall adapter is optionally available.

Specifications

Mounting
Maximum weight capacity (per display)	18 kg
Desk thickness (min)	1 cm
Desk thickness (max)	4.5 cm
Minimum screen size	43.2 cm (17")
Panel mounting interface	75 x 75 mm
Number of displays supported	1
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Grommet
Distance to the wall (min)	10.8 cm
Distance to the wall (max)	56.8 cm
Maximum weight capacity	18 kg
Maximum screen size	124.5 cm (49")
Maximum weight capacity (per curved/ultra-wide display)	14 kg
Ergonomics
Cable management	Yes
Adjustable depth	Yes
Depth adjustment range	54 - 511 mm
Height adjustment	Yes
Height adjustment range	261 - 555 mm
Pivot angle	-180 - 180°
Swivel angle range	-90 - 90°
Tilt angle range	-45 - 45°
Angle of rotation	360°
Height adjustment type	Gas spring
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Width adjustment	92 cm
Design
Product colour	Black
Housing material	Steel
Technical details
Mounting type	Desk
Minimum weight	1 kg
Distance to the wall (min)	10.8 cm
Distance to the wall (max)	56.8 cm
Product colour	Black
Width adjustment range	0 - 920 mm
Cable management	Yes
Weight & dimensions
Width	120 mm
Depth	568 mm
Height	653 mm
Weight	3.98 kg
Package width	280 mm
Package depth	127 mm
Package height	445 mm
Package type	Box
Package weight	5.1 kg
Package net weight	5.1 kg
Packaging data
Package width	280 mm
Package depth	127 mm
Package height	445 mm
Package type	Box
Package weight	5.1 kg
Package net weight	5.1 kg
Quantity per pack	1 pc(s)
Other features
Minimum weight	1 kg
Width adjustment range	0 - 920 mm
Mounting type	Desk
Mounting	Clamp/Grommet
Country of origin	China
Logistics data
Master (outer) case width	460 mm
Master (outer) case length	275 mm
Master (outer) case height	580 mm
Master (outer) case gross weight	20.5 kg
Products per master (outer) case	4 pc(s)
Country of origin	China
Products per pallet (EU)	64 pc(s)
Master (outer) case net weight	16 kg
Harmonized System (HS) code	7326909890
