Neomounts DS90-325BL1 Sit-stand workstation desk 17-32" - gas spring

Neomounts DS90-325BL1 Sit-stand workstation desk 1 screen - 17-32" - 1-9 kg (curved 6 kg) - gas spring - black

Description

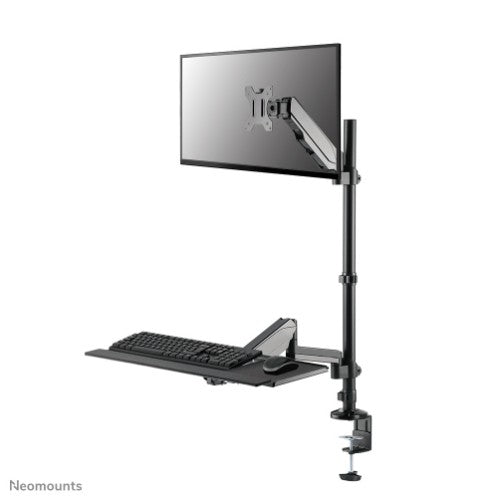

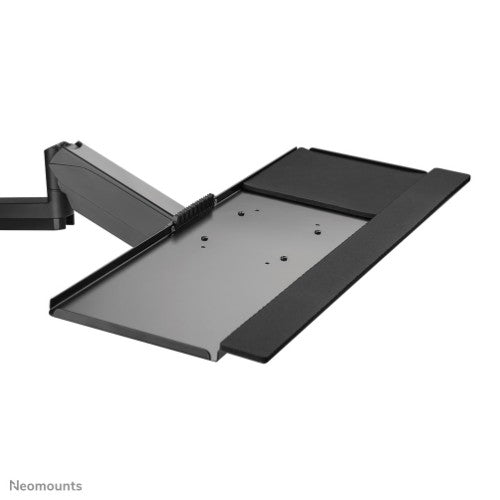

The Neomounts DS90-325BL1 is a full motion height adjustable desk mounted workstation for screens up to 32", keyboard and mouse. The mount can support screens up to 9 kg (curved: 6 kg), while the keyboard tray can support max. 1 kg. The versatile tilt (70°), rotate (360°) and swivel (180°) technology allows the monitor arm to change to any viewing angle to fully benefit from the capabilities of the screen. The keyboard tray includes a wrist support and mouse pad for optimum comfort.

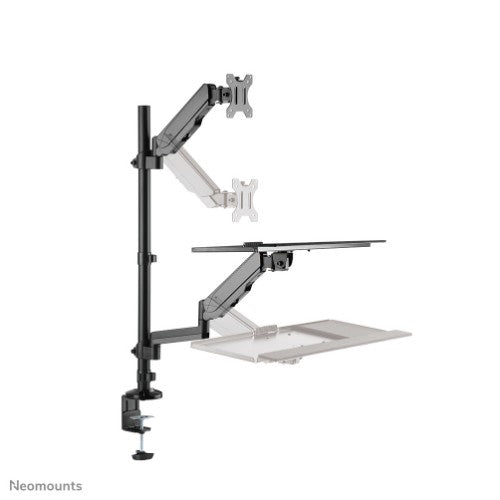

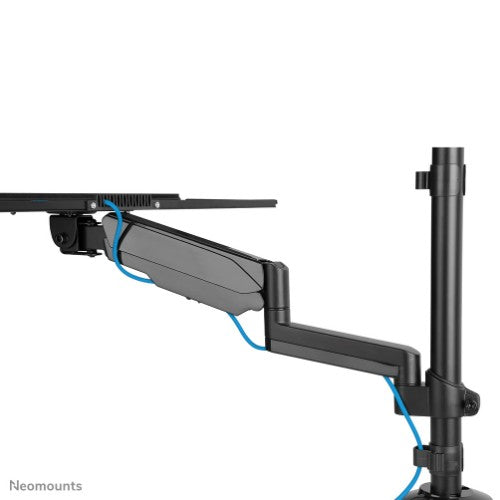

The workstation desk mount has a large height adjustability range from 44-95 cm and can be used both seated and standing. To ensure quick repositioning and the most optimal working position, the DS90-325BL1 features gas spring height adjustment for both the monitor arm and keyboard tray arm. The smart cable management system ensures orderly routing of the cables.

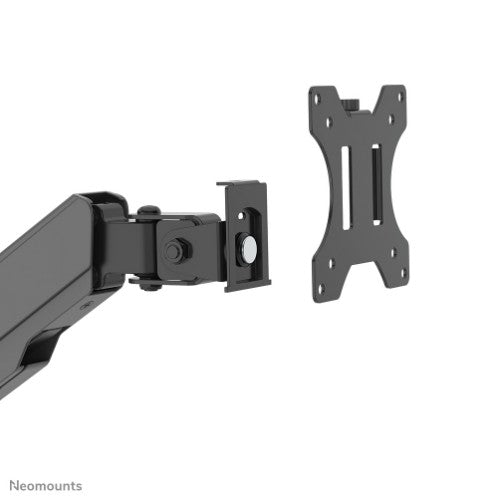

The DS90-325BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm and is equipped with a Quick-release VESA system for fast and easy installation. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available.

Specifications

Mounting
Maximum weight capacity (per display)	9 kg
Desk thickness (min)	1 cm
Desk thickness (max)	8.8 cm
Minimum screen size	43.2 cm (17")
Panel mounting interface	75 x 75 mm
Number of displays supported	1
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Grommet
Distance to the wall (min)	15.9 cm
Distance to the wall (max)	42.1 cm
Maximum weight capacity	9 kg
Maximum screen size	81.3 cm (32")
Maximum weight capacity (per curved/ultra-wide display)	6 kg
Ergonomics
Cable management	Yes
Depth adjustment range	68 - 374 mm
Height adjustment	Yes
Height adjustment range	440 - 950 mm
Pivot angle	-180 - 180°
Swivel angle range	-90 - 90°
Tilt angle range	-35 - 35°
Angle of rotation	360°
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Width adjustment	52.4 cm
Design
Product colour	Black
Housing material	Steel
Technical details
Mounting type	Desk
Minimum weight	1 kg
Distance to the wall (min)	15.9 cm
Distance to the wall (max)	42.1 cm
Product colour	Black
Width adjustment range	0 - 524 mm
Cable management	Yes
Weight & dimensions
Width	654 mm
Depth	730 mm
Height	1180 mm
Weight	7.45 kg
Package width	300 mm
Package depth	165 mm
Package height	848 mm
Package weight	9.4 kg
Packaging data
Package width	300 mm
Package depth	165 mm
Package height	848 mm
Package weight	9.4 kg
Other features
Minimum weight	1 kg
Width adjustment range	0 - 524 mm
Mounting type	Desk
Mounting	Clamp/Grommet
Country of origin	China
Logistics data
Master (outer) case gross weight	9.4 kg
Products per master (outer) case	1 pc(s)
Country of origin	China
Products per pallet (EU)	25 pc(s)
Master (outer) case net weight	9.4 kg
Harmonized System (HS) code	7326909890
