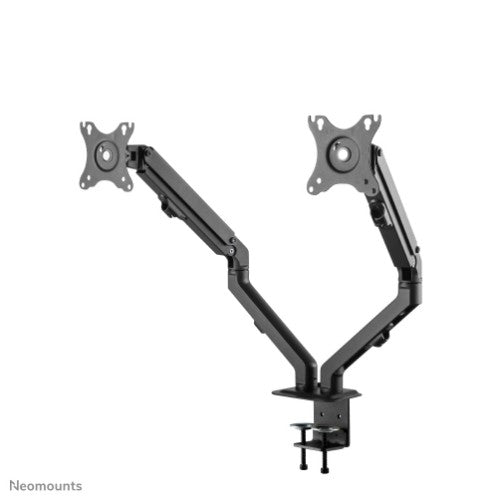

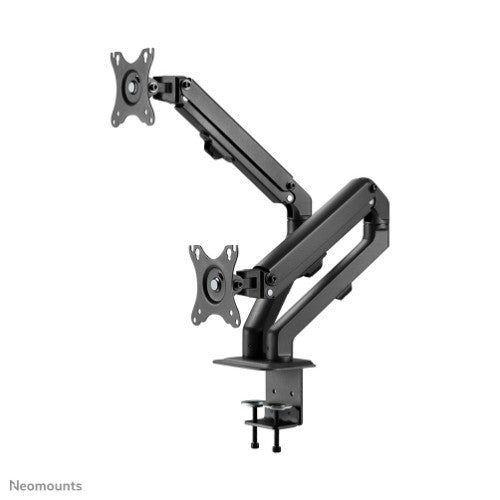

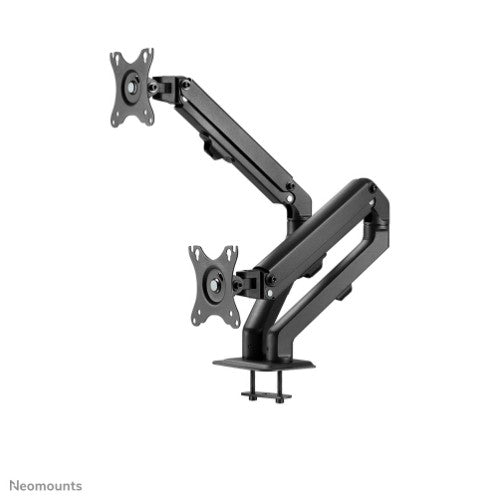

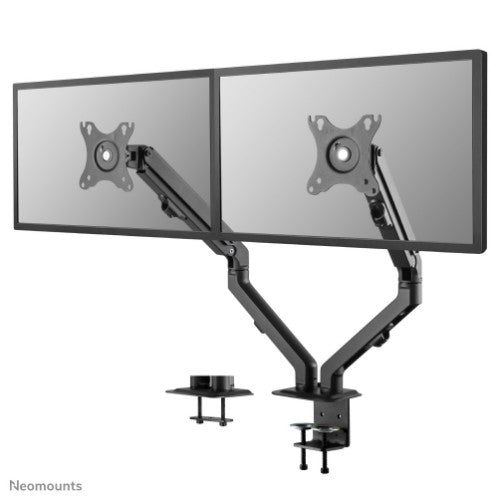

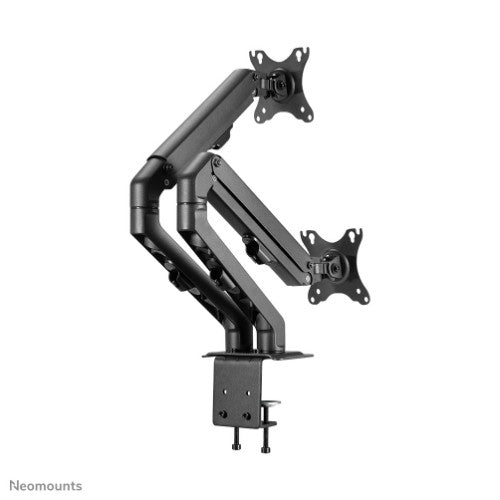

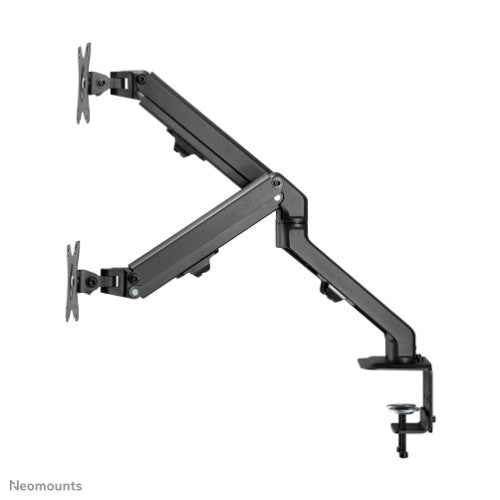

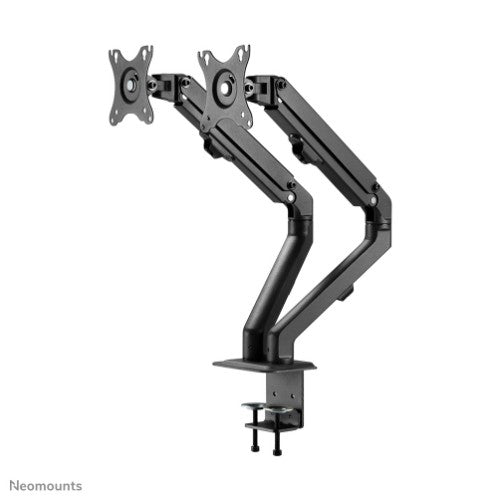

Neomounts FPMA-D650DBLACK Monitor arm 17-27" - coil spring

Neomounts FPMA-D650DBLACK Dual monitor arm - 17-27" - 2-7 kg/screen - coil spring - black

Description

The Neomounts FPMA-D650DBLACK is a full motion desk mount for two flat screens up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (130°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Additionally, the mount features spring-assisted height adjustment (11-42 cm) and depth adjustment (0-49,4 cm), to create the perfect work situation. The smart cable management clips ensure orderly routing of the cables.

The FPMA-D650DBLACK has two pivot points and suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Deviant hole patterns can be covered using one of Neomounts VESA adapter plates. The Neomounts FPMA-D650DBLACK comes with both desk clamp and grommet.

Specifications

Mounting
Maximum weight capacity (per display)	7 kg
Desk thickness (max)	8 cm
Minimum screen size	43.2 cm (17")
Panel mounting interface	100 x 100,75 x 75 mm
Number of displays supported	2
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Grommet
Maximum weight capacity	7 kg
Maximum screen size	68.6 cm (27")
Ergonomics
Cable management	Yes
Adjustable depth	Yes
Depth adjustment range	0 - 494 mm
Height adjustment	Yes
Height adjustment range	108 - 417 mm
Swivel angle range	0 - 180°
Swivel angle	180°
Tilt angle range	-45 - 90°
Angle of rotation	360°
Number of pivot points	2
Height adjustment type	Gas spring
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Easy to install	Yes
Product colour	Black
Housing material	Steel
Technical details
Number of pivot points	2
Mounting type	Desk
Minimum weight	2 kg
Product colour	Black
Width adjustment range	0 - 1084 mm
Cable management	Yes
Weight & dimensions
Width	117 mm
Depth	562 mm
Height	570 mm
Weight	4.05 kg
Package width	245 mm
Package depth	178 mm
Package height	390 mm
Package weight	4 kg
Packaging data
Package width	245 mm
Package depth	178 mm
Package height	390 mm
Package weight	4 kg
Other features
Minimum weight	2 kg
Width adjustment range	0 - 1084 mm
Mounting type	Desk
Mounting	Clamp/Grommet
Country of origin	China
Logistics data
Master (outer) case width	245 mm
Master (outer) case length	178 mm
Master (outer) case height	390 mm
Master (outer) case gross weight	4.7 kg
Products per master (outer) case	1 pc(s)
Country of origin	China
Products per pallet (EU)	72 pc(s)
Master (outer) case net weight	4 kg
Harmonized System (HS) code	7326909890
