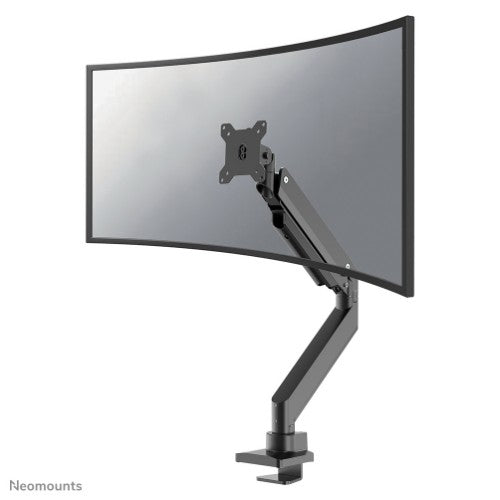

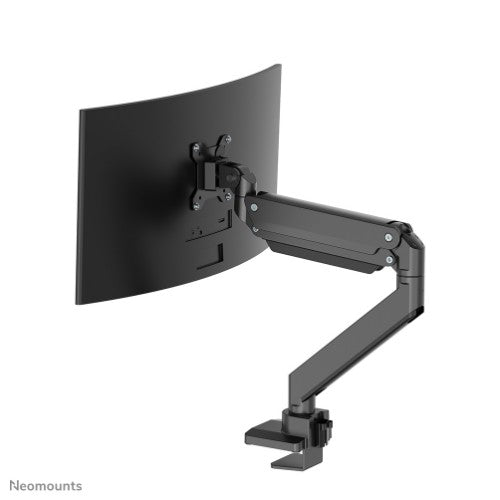

Neomounts NM-D775BLACKPLUS Monitor arm 10-49" - gas spring - Topfix - 180°-stop

Neomounts NM-D775BLACKPLUS Single monitor arm - 10-49" - 1-18 kg (curved 14 kg) - gas spring - 180°-stop - Topfix - black

Description

The Neomounts NM-D775BLACKPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount.

The NM-D775BLACKPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg.

Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres.

A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775BLACKPLUS desk mounts are ideal for use in offices, on counters and in reception areas.

All installation material is included with the product.

Specifications

Mounting
Maximum weight capacity (per display)	18 kg
Desk thickness (min)	1 cm
Desk thickness (max)	4.5 cm
Minimum screen size	25.4 cm (10")
Panel mounting interface	100 x 100,75 x 75 mm
Number of displays supported	1
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Grommet
Maximum weight capacity	18 kg
Maximum screen size	124.5 cm (49")
Maximum weight capacity (per curved/ultra-wide display)	14 kg
Ergonomics
Cable management	Yes
Adjustable depth	Yes
Depth adjustment range	0 - 630 mm
Height adjustment	Yes
Height adjustment range	270 - 600 mm
Swivel angle range	0 - 360°
Swivel angle	360°
Tilt angle range	-45 - 45°
Angle of rotation	180°
Height adjustment type	Gas spring
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	Black
Housing material	Steel
Technical details
Mounting type	Desk
Minimum weight	1 kg
Product colour	Black
Cable management	Yes
Weight & dimensions
Depth	630 mm
Height	600 mm
Weight	3.91 kg
Package width	240 mm
Package depth	123 mm
Package height	555 mm
Package weight	5.2 kg
Package net weight	5.2 kg
Packaging data
Package width	240 mm
Package depth	123 mm
Package height	555 mm
Package weight	5.2 kg
Package net weight	5.2 kg
Other features
Minimum weight	1 kg
Mounting type	Desk
Mounting	Clamp/Grommet
Country of origin	China
Logistics data
Master (outer) case width	500 mm
Master (outer) case length	265 mm
Master (outer) case height	575 mm
Master (outer) case gross weight	5.2 kg
Products per master (outer) case	4 pc(s)
Country of origin	China
Products per pallet (EU)	72 pc(s)
Master (outer) case net weight	4.6 kg
Harmonized System (HS) code	7326909890
