StarTech.com Crossbar Triple Monitor Desk Mount For Up To Three 27in Screens, VESA 75x75/100x100, Tool-Less Arm Adjustments, C-Clamp/Grommet, Spring-Assisted Arm

StarTech.com Crossbar Triple Monitor Desk Mount For Up To Three 27in Screens, VESA 75x75/100x100, Tool-Less Arm Adjustments

Key Features

• DESK MOUNT MONITOR ARM: Crossbar triple monitor VESA mount (75x75/100x100mm) supports up to 13.2lb (6kg) 27-inch displays; Articulating and height adjustable steel arm; C-clamp/grommet mounting
• SYNCHRONIZED MOTION: Micro height-adjustment screws on VESA plate to perfectly align monitors for a seamless visual experience; Ergonomic three-monitor mount w/toolless adjustments of +/-15° swivel, +5/-15° tilt, 360° screen rotation portrait/landscape
• ONE-TOUCH ADJUSTMENT: Spring-assisted arm w/height range of up to 13in (330mm); Built-in handle for smooth & effortless one-touch motion; Monitor stand includes tools to adjust the arm tension to match the monitor weight; Max arm extension 24.8in (630mm)

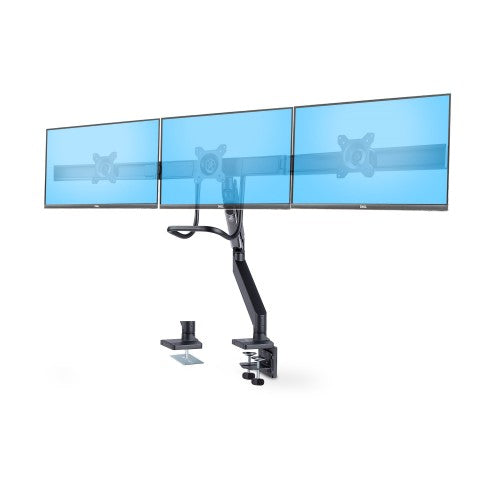

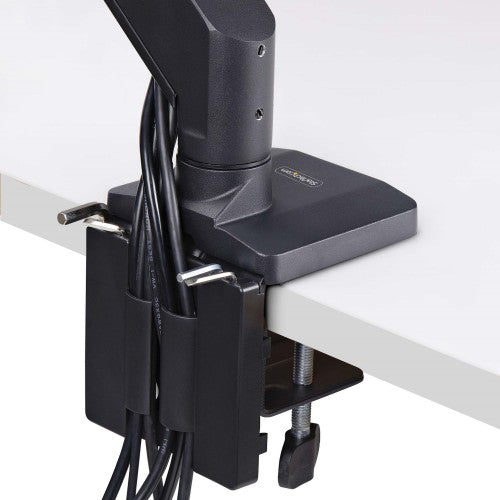

• MOUNTING OPTIONS: Interchangeable desk C-clamp or grommet mount for desks up to 3.1-inches (80mm) thick; When engaged, the rotation stop mechanism prevents the arm from rotating more than +/-90°(180° total), preventing the arm from hitting cubicle walls
• ORGANIZED WORKSPACE: Enhance productivity and multi-tasking on high-performance workstations; Multi-monitor mount with cable management channels along the arms to keep cables out of sight; A cable clip at the base helps maintain a tidy setup

Description

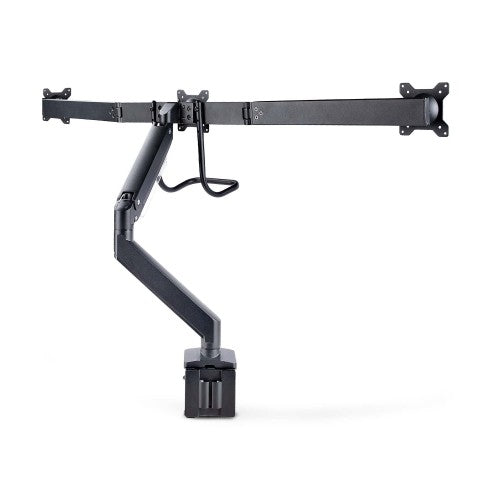

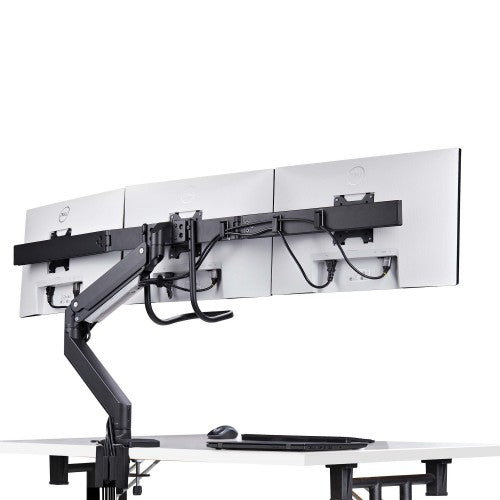

Triple monitor desk mount with support for up to 27" monitors with height adjustable crossbar

This crossbar monitor desk mount is designed to support up to three 27-inch displays, creating an ergonomic multi-monitor setup that provides an extensive viewing area for productivity. A built-in handle enables moving all monitors simultaneously, while the spring-assisted arm allows multiple adjustments to suit different ergonomic needs.

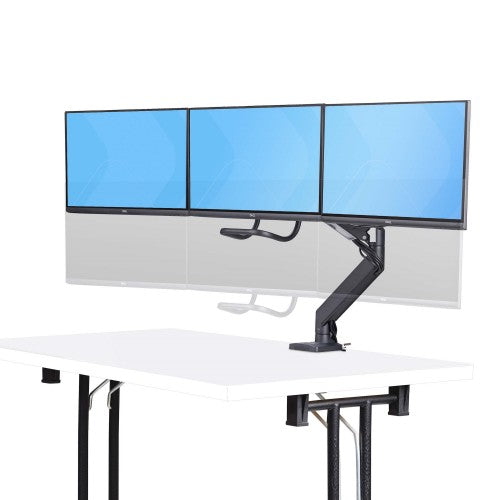

Height Adjustment with One Smooth Motion

The spring arm enables toolless height adjustment of up to 13in (330mm) with effortless one-touch motion. The maximum arm extension is 24.8in (630mm), and the minimum arm extension is 4in (104mm). The weight capacity is 13.2lb (6kg) per VESA mount.

Visual Experience

This triple monitor mount features micro height adjustment screws on the VESA plate that enable perfect alignment of all three monitors. This is ideal for bezel-less or slim bezel displays, helping to create a more extensive and seamless viewing area. The outer displays' VESA mounts slide along the crossbar, allowing further adjustments.

Range of Motion

The monitor crossbar allows toolless adjustments of +/-15° horizontal swivel of the outer displays. The monitors' VESA mounts enable +/-10° horizontal swivel, +5/-15° tilt, and 360° screen rotation for portrait or landscape orientations.

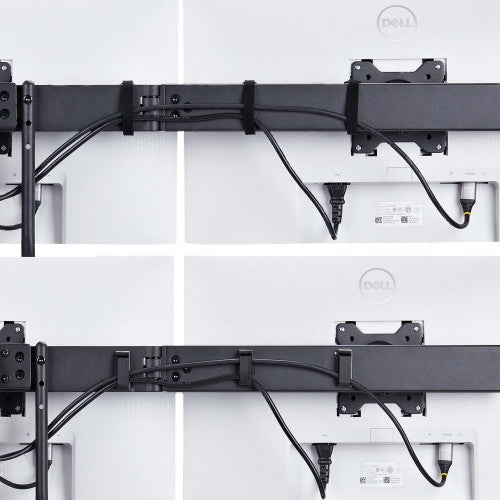

Cable Management

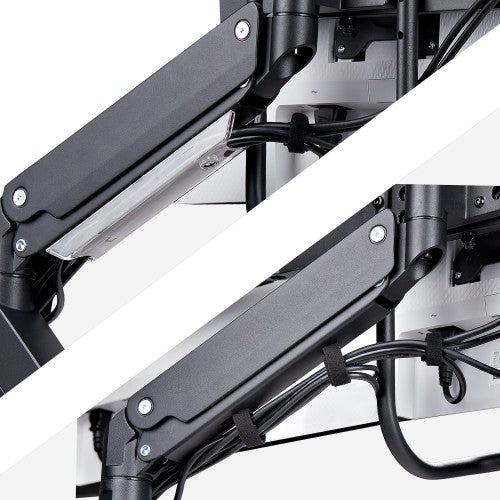

To maintain an organized workspace, the adjustable arm features a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip at the base maintains an organized workspace.

The StarTech.com Advantage

Specifications

Mounting
Maximum weight capacity (per display)	6 kg
Desk thickness (min)	1 cm
Desk thickness (max)	8.5 cm
Minimum screen size	43.2 cm (17")
Number of displays supported	3
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Grommet
Maximum weight capacity	18 kg
Maximum screen size	68.6 cm (27")
Extension arm (max)	52.6 cm
Ergonomics
Cable management	Yes
Height adjustment	Yes
Height adjustment range	265 - 595 mm
Pivot angle	-180 - 180°
Swivel angle range	-10 - 10°
Tilt angle range	-15 - 5°
Angle of rotation	360°
Rotating	Yes
Design
Product colour	Black, Silver
Housing material	Aluminium, Plastic, Steel
Anti-theft function	No
Technical details
Mounting type	Desk
Product colour	Black, Silver
Cable management	Yes
Weight & dimensions
Width	630 mm
Depth	1400 mm
Height	595 mm
Weight	8.4 kg
Package width	330 mm
Package depth	610 mm
Package height	150 mm
Package weight	10 kg
Packaging data
Package width	330 mm
Package depth	610 mm
Package height	150 mm
Package weight	10 kg
Wrench type	Hexagonal wrench
Screws included	Yes
Wrench included	Yes
Manual	Yes
Packaging content
Wrench type	Hexagonal wrench
Screws included	Yes
Wrench included	Yes
Manual	Yes
Number of screws	47
Number of washers included	14
Grommet base plate included	Yes
VESA mount included	Yes
Number of cable clips	6
Logistics data
Master (outer) case width	330 mm
Master (outer) case length	610 mm
Master (outer) case height	150 mm
Products per master (outer) case	1 pc(s)
Other features
Mounting type	Desk
Mounting	Clamp/Grommet
